CONNECTION
User’s Manual WM3M4 &WM3M4C
5
2.1 Mounting
The WM3M4 & WM3M4C energy meters are intended for DIN-rail mounting. In the case of using the
stranded wire, the ferrule must be attached before the mounting.

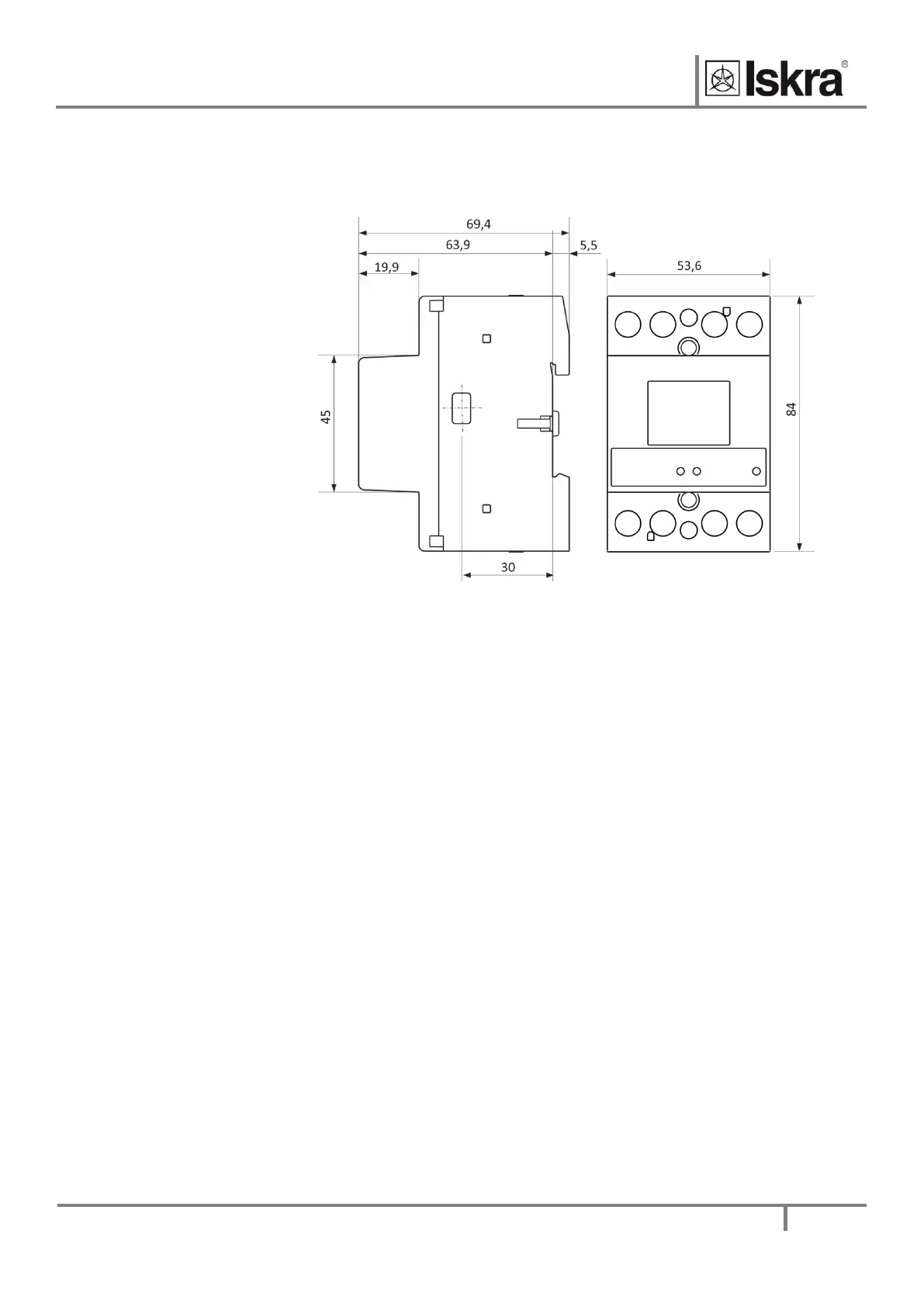

Figure 2: Dimensional drawing and rear connection terminals position
