User’s Manual WM3M4 &WM3M4C
4.4.2 Energy
Counters 4.4.2.1
The WM3M4 & WM3M4C energy meters have two unresettable counters for which MID approval is
valid. The setting of these counters is fixed in the production and the setting parameters cannot be
modified during use and counters cannot be reset.

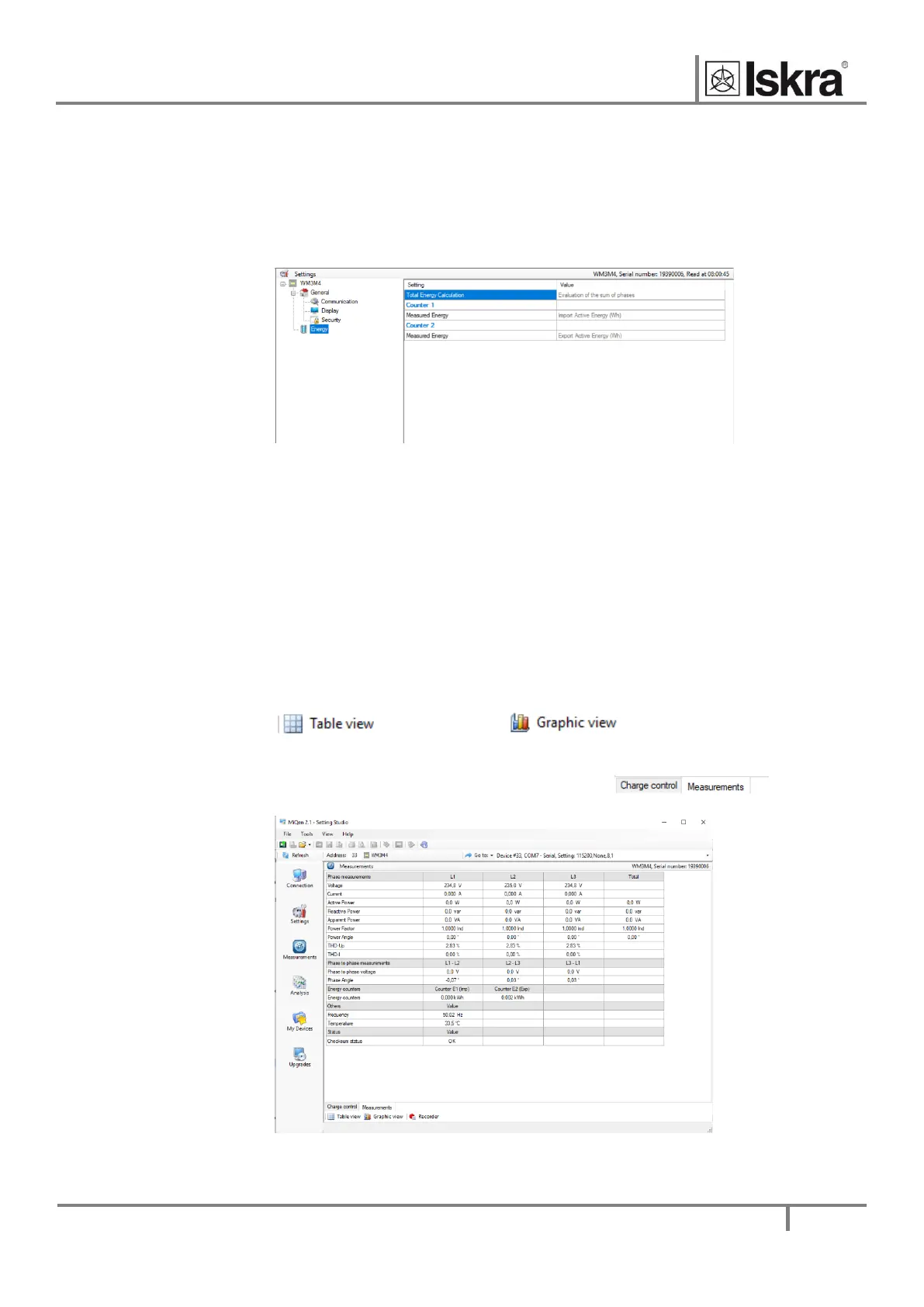

Figure 26: MiQen energy counters
Counter 1 displays imported active energy.
Counter 2 displays exported active energy.
4.5 Measurements
Measurements can be seen ONLINE when a device is connected to power supply and is
communicating with MiQen. When a device is not connected it is possible to see OFFLINE
measurements simulation. The latter is useful for presentations and visualization of measurements
without the presence of an actual device.
In ONLINE mode all supported measurements and alarms can be seen in real-time in a tabular (
) or graphical form ( ). All data can be exported to an Access
database, Excel worksheets or as a text file.
Measurements window can be selected by clicking this tab:
Figure 27: Measurements window
