Iso-Tech IPS 4303S User Manual

OPERATION
25

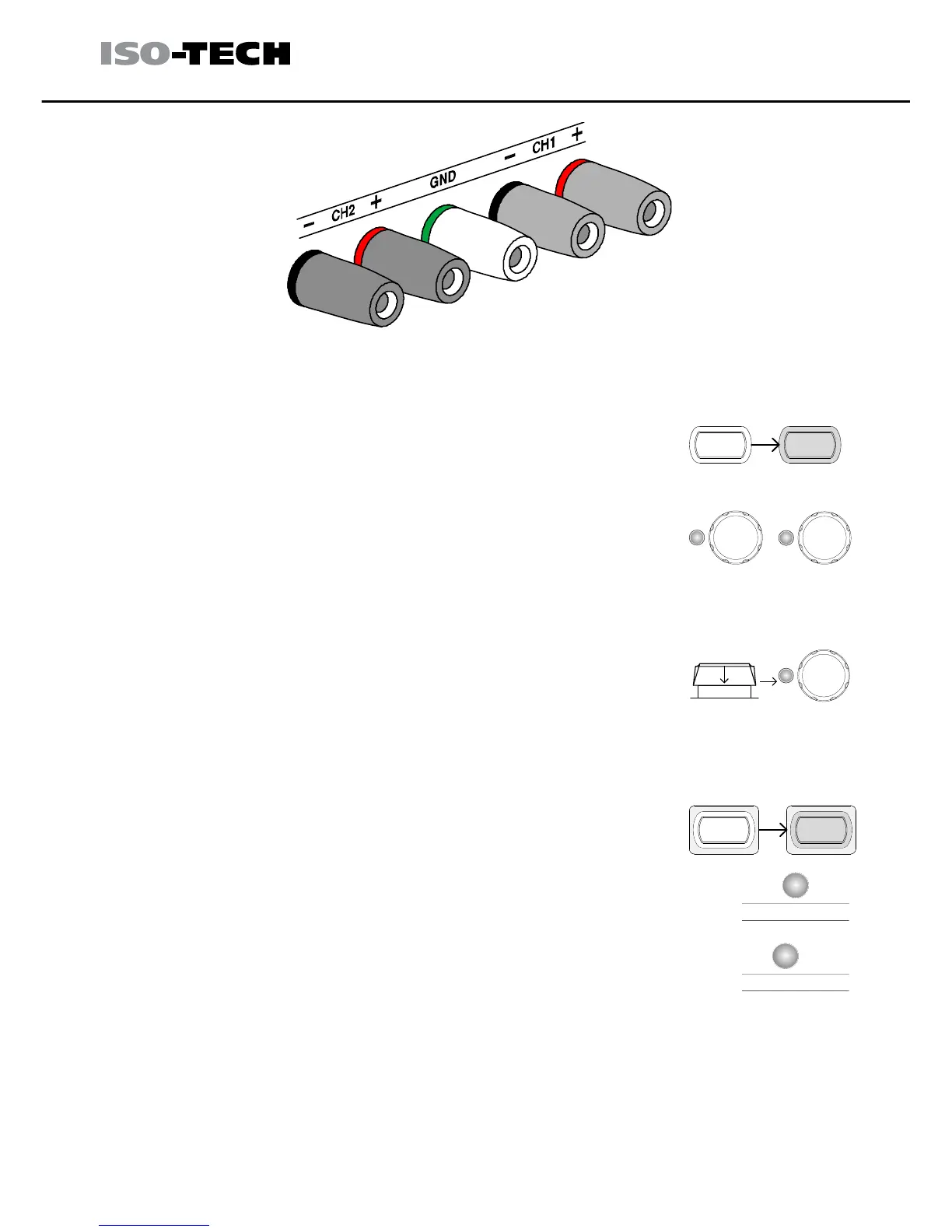

Note: this diagram shows non-European terminals.
3. Set the CH1 output voltage and current. Press
the CH1 key (LED turns on) and then use the
Voltage and Current knob.
By default, the Voltage and Current knob work
in the coarse mode. To activate the fine mode,
press the knob to turn the FINE LED on.
(For CH1)
CH1/3
CH1/3
COARSE/FINE
FINE
VOLTAGE
Push
COARSE/FINE
FINE
Push
CURRENT
(Fine control)
COARSE/FINE
FINE
VOLTAGE
Push
 Coarse: 0.1V or 0.1A for each step
 Fine: 1mV or 1mA for each step
4. Repeat the above settings for the CH2.
5. To turn on the output, press the output key. The
key LED turns on and the CH1 / CH2 indicator
shows the output mode, CV or CC.
OUTPUT
OUTPUT
(CH1)
C.V. C.C. PAR. C.V. C.C.
CH2
CH1
(CH2)
C.V. C.C. PAR. C.V. C.C.
CH2
CH1
