FRONT AND REAR PANELS
19

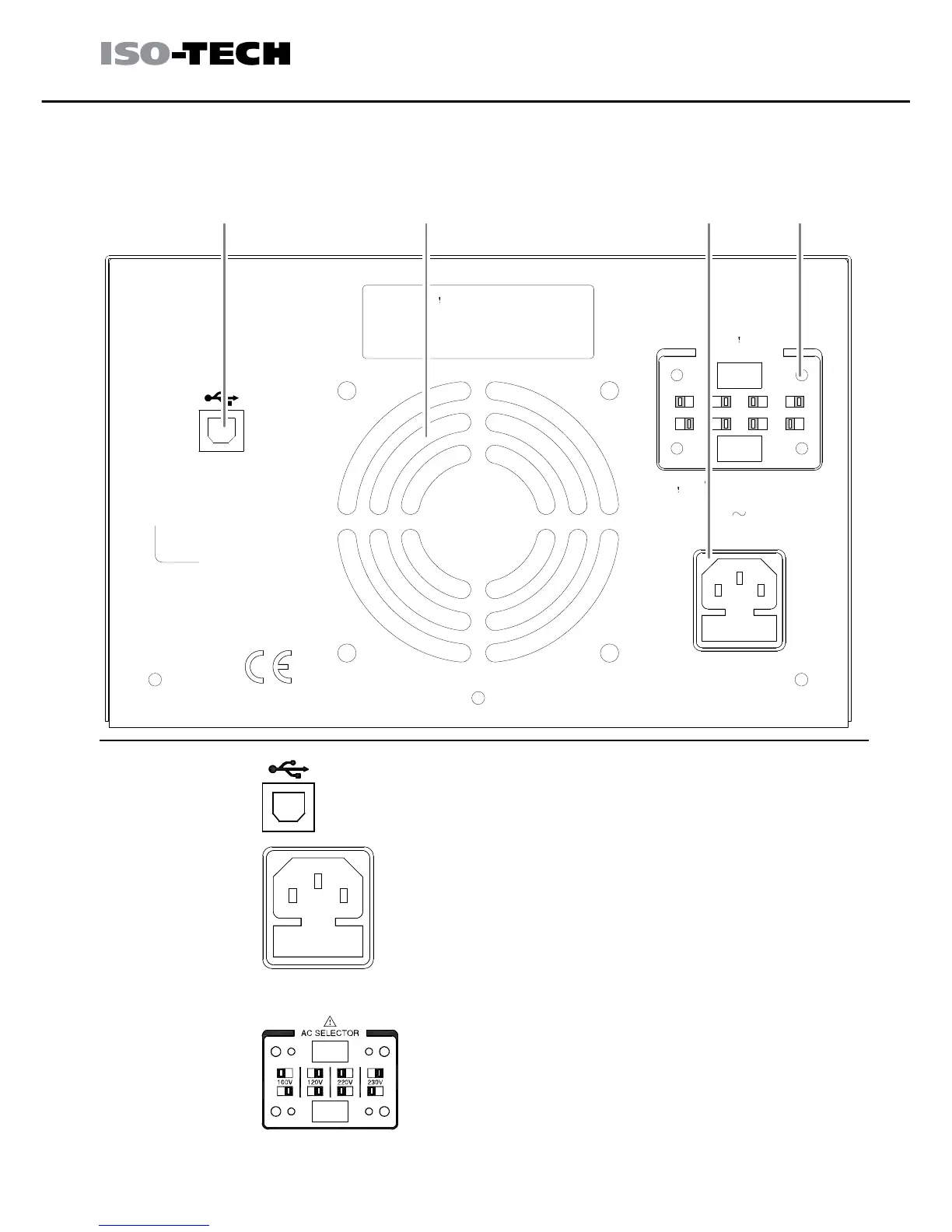

Rear Panel Overview
SER. NO. LB
AC SELECTOR
230V220V100V
DISCONNECT POWER CORD
120V
WARNING
CONDUCTOR MUST BE CONNECTED TO GROUND.
FOR CONTINUED FIRE PROTECTION. REPLACE FUSE ONLY WITH 250V FUSE
NO OPERATOR SERVICEABLE COMPONENTS INSIDE. DO NOT REMOVE
COVERS. REFER SERVICING TO QUALIFIED PERSONNEL.
TO AVOID ELECTRIC SHOCK THE POWER CORD PROTECTIVE GROUNDING
OF THE SPECIFIED TYPE AND RATING.
AC
T 6.3A
T 3.15A
250V
50/60 Hz
490 VA MAX
380 WATTS
250V120V
220V
230V
100V
FUSE RATING
REPLACE FUSE
AS SPECIFIED
BEFORE REPLACING FUSE
USB Connector AC SelectorCooling Fan
Power Cord /
Fuse Socket
Accepts a USB slave connector for command-based
remote control (page 38).
The power cord socket accepts the AC mains:
115V/230V, 50/60Hz. For power up details, see page
20.
The fuse holder contains the AC main fuse. For fuse
replacement details, see page 48.
Selects AC voltage: 100V/ 120V/ 220V/ 230V.
