IPS X303 Series Instruction Manual
34
CH1/CH2 Tracking Parallel Mode
Background /
Connection

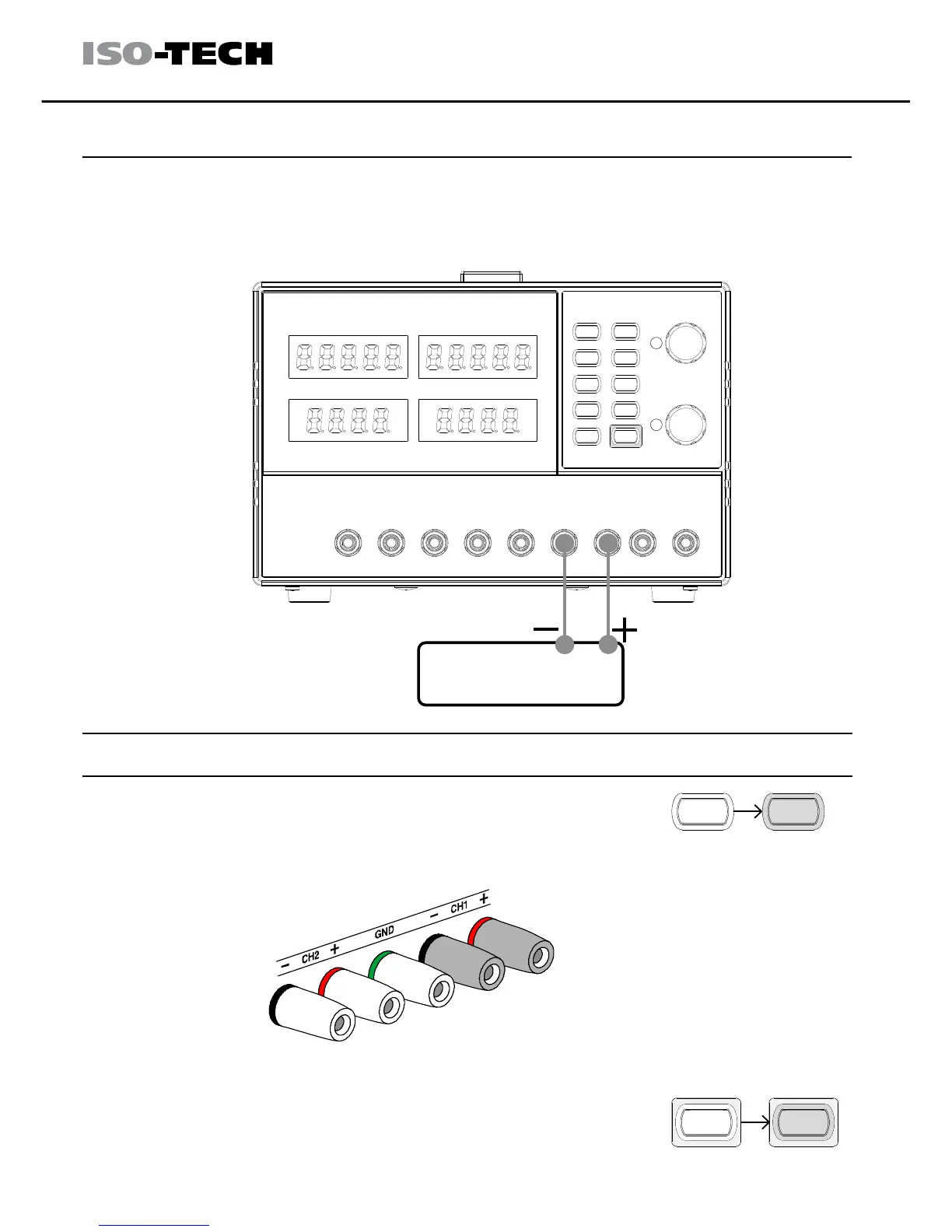

Tracking parallel operation doubles the current capacity of the IPS X303
series by internally connecting CH1 and CH2 in parallel and combining
the output to a single channel. CH1 controls the combined output.
V
A
V
A
CH4 CH2 GND CH3CH1
LOAD
Output rating
0 to 30V / 0 to 6A
1. Press the PARA/INDEP key to activate the
tracking parallel mode. The key LED turns on.
/INDEP
PARA
/INDEP
PARA
2. Connect the load to the CH1 +/− terminals.
Note: this diagram shows non-European terminals.
3. To turn on the output, press the output key. The
key LED turns on.
OUTPUT
OUTPUT
