Some parts of the ACP127 View also use the Audit DB features to return information about
messages, such as displaying content. You should configure the AuditDB access in the
Options View as described in Figure 10.1, “Configuring ACP127 Views in the Options
View”.

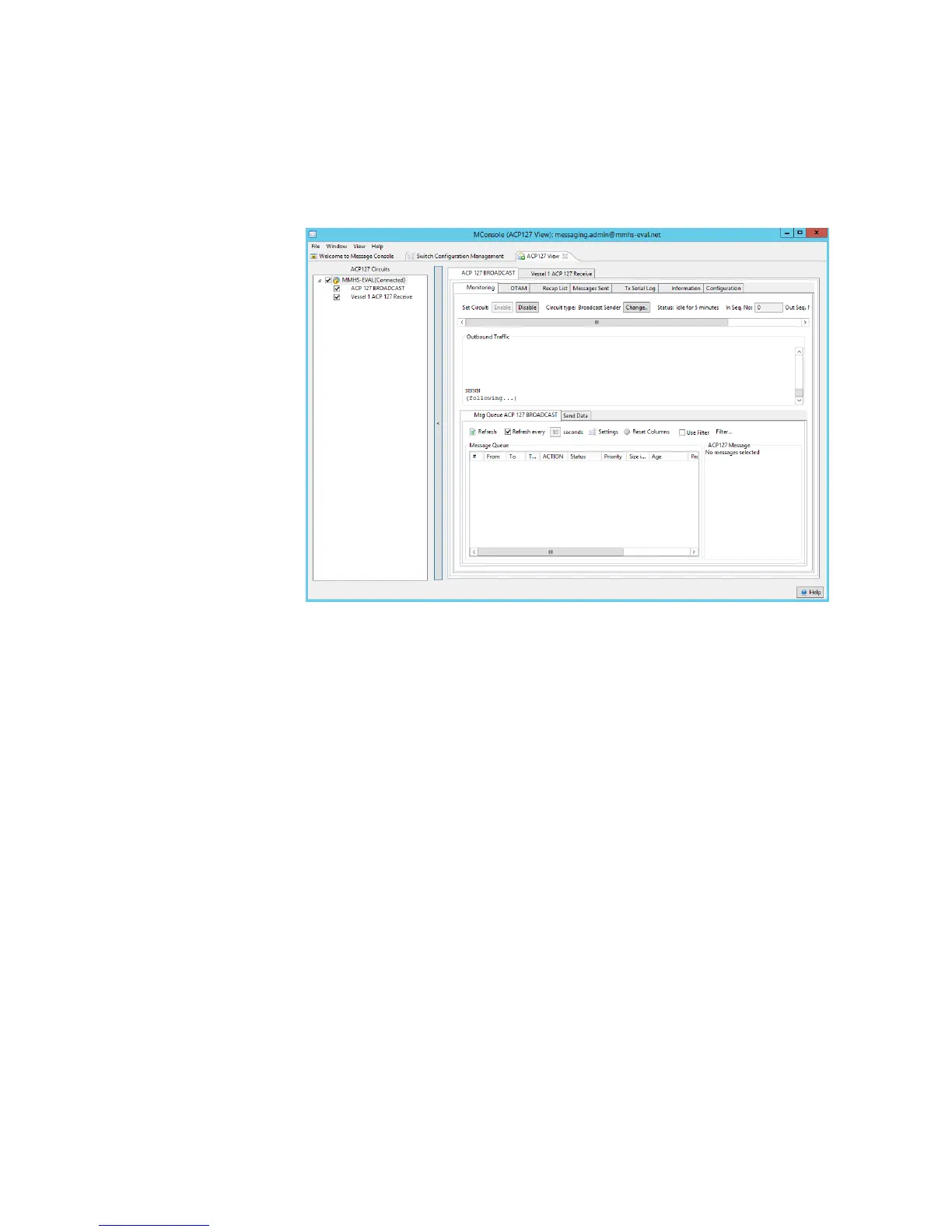

The selection of connected MTAs and Circuits appears as follows:
Figure 10.2. ACP127 Circuit MTA and Circuit Selection
Once you have selected these, they will reconnect automatically and you can hide the left
hand side of this view using the "<" button.
10.1.1 ACP127 Circuit Monitor View
Circuits have a Monitoring Tab which allows the ACP127 process to monitor incoming
or outgoing traffic or both depending on whether the Circuit Tab is Receive Only, Transmit
Only or Two Way.
There are buttons which allow the operator to make dynamic changes to the Circuit's
behaviour.
• Set Circuit This button allows the circuit to be enabled/disabled
• Circuit Type This button allows the circuit to be switched between automatic and
manual.
Outbound traffic is shown when data is queued up to be transmitted, while the inbound
traffic is shown as soon as it is received.
In addition to the Traffic Panes, there are other sub tabs which provide different functions
depending on the type of circuit. Available functions are as follows:
10.1.1.1 Message Queue
The Message Queue sub tab displays messages queued outbound on this circuit.
ACP127
33M-Switch Operator's Guide
