FTF-13 or Equivalent Chimney System
The Fire-Lite is designed, tested and listed for use with
FTF-13 Class A metal chimney system, or equal.
Do not modify or alter metal ue or metal ue components
as this could result in an unsafe and potentially dangerous
installation that may cause a serious hazard and void the
listings, approvals and the limited warranty of the system.
The following installation instructions refer to FTF-13
chimney system. If “equal” metal chimney systems are used,
follow the metal ue manufacturer’s explicit installation
instructions.
General Information:
This chimney system is designed for installation in
accordance with the National Fire Protection Standard for
chimneys and solid fuel burning appliances, NFPA 211 and
in accordance with codes such as BOCA Basic/National
Codes, the Standard Mechanical Code and the Uniform
Building Codes.
Note: Illustrations shown reect “typical” installations with
nominal dimensions and are for design and framing reference
only. Actual installations may vary due to individual
design preferences. However, always maintain minimum
required clearances to combustible materials and do not
violate any specic installation requirements.
WARNING: Failure to use manufacture’s provided parts,
variations in techniques and construction materials or
practices other than those described in this manual may create a re
hazard and void the limited warranty.
Chimney Clearance Requirements:
The FTF-13 chimney’s outer layer requires a
minimum two inch (2”) air space to combustibles.
The chimney system must be enclosed when
installed in or passing through a living area where
combustibles or people may come in contact with it. This is important
to prevent possible personal injury or re hazard.
The FTF-13 chimney’s re stop spacer and roof ashing (not
chase ashings) may be placed directly on or
against normal construction materials.
Note: “Normal construction materials” are considered to be: framing
materials, particle board, mill board, plywood, paneling, ooring, and
drywall.
Chimney Height Requirements:
The minimum recommended installed height of the com-
pleted replace system is fourteen feet (14’ 0”). The minimum
recommended installed height of the completed replace system that
includes one offset chimney section is seventeen feet (17’ 0”).

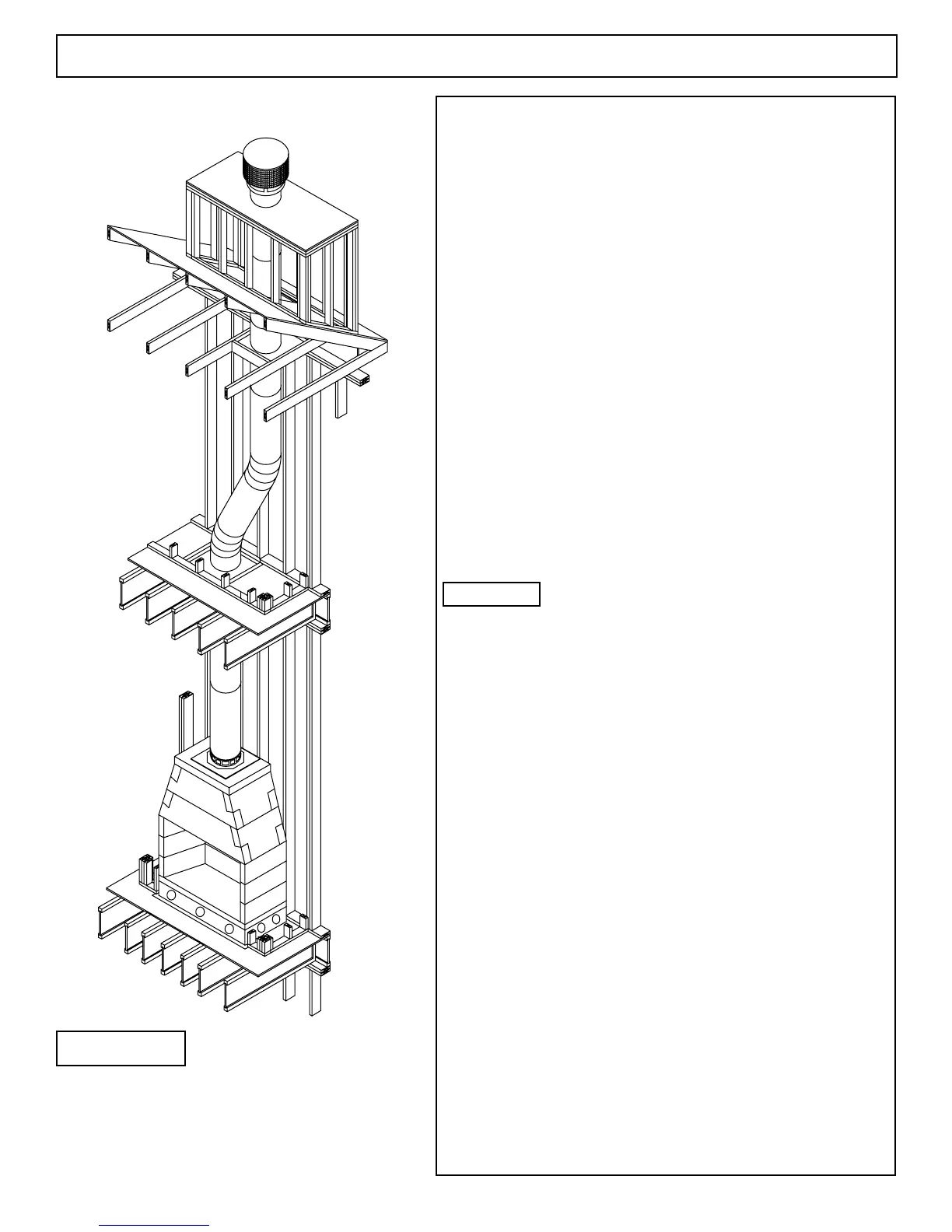

FIGURE 134
