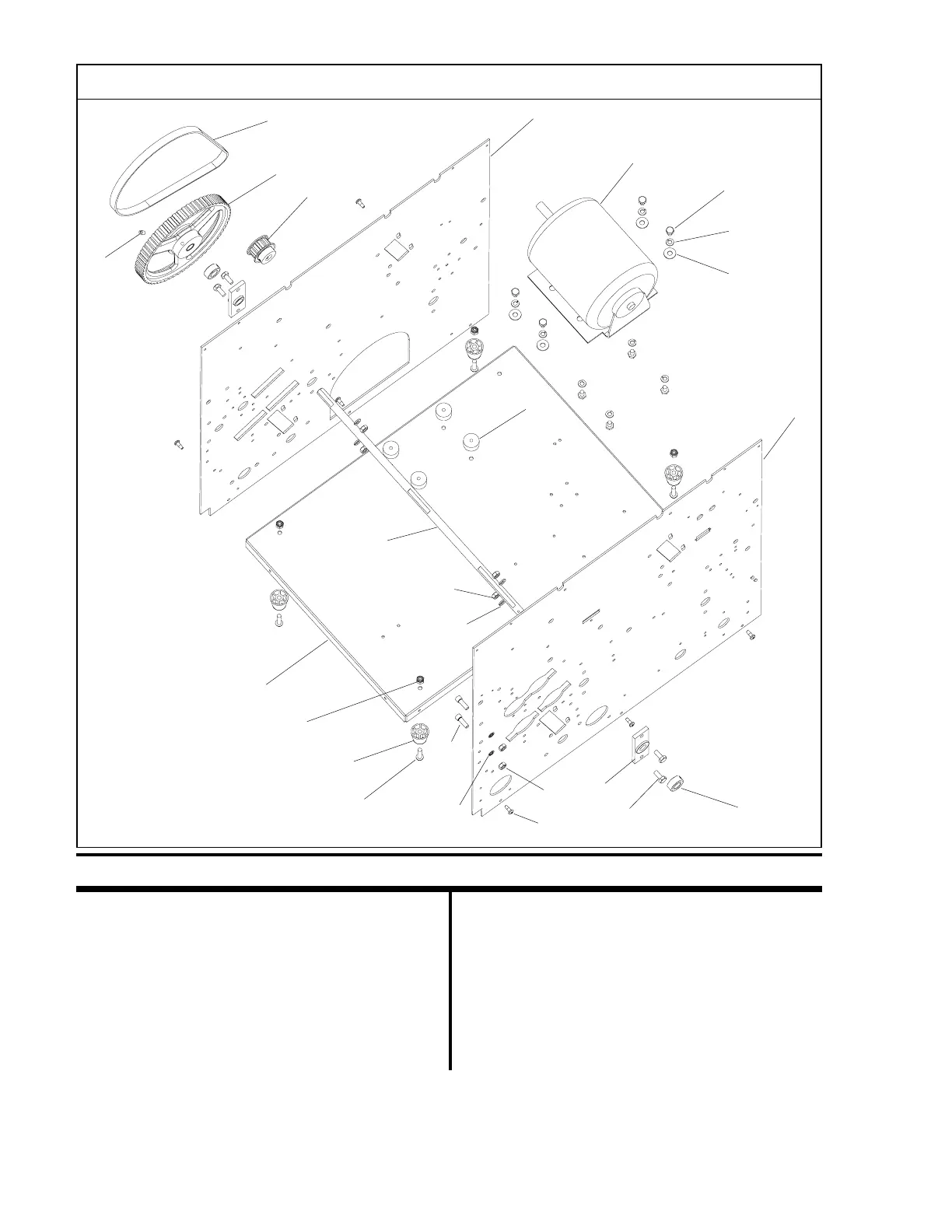

F R A M E A S S E M B L Y
Index Part Part Name Number Index Part Part Name Number
1 RBM1529F Frame Bottom 1
2 RBM1566F LH Side Frame 1
3 RBM1565F RH Side Frame 1
4 RBM1324F Pan Hd Scr 10-32 x 1/2 6
5 RBM1202F Bumper Foot 4
6 RBM1252F Rd Hd Scr 1/4-20 x 1 4
7 CB860C Elastic Stop Nut 1/4-20 4
8 RBM1480A Bearing Assy 2
9 CB487 Hex Hd Scr 1/4-20 x 3/4 4
10 CB718 Washer 1/4 4
11 RBM1519F Lockwasher 1/4 14
12 CB493 Nut 1/4-20 6
18
10
16
1
6
8
19
13
14
3
11
4
15
2
5
12
9
7
11
17
20
21
(RBM1000C Scene 1)
22
12
11
13 RBM1543F Tape Drive Shaft 1
(also item 22 page 21)
14 RBM1201F Motor (also item 29 page 32) 1
15 RBM1301F Motor Mount 4
16 RBM1046A Tape Drive Pulley Assy 1
17 CB59 Set Scr 1/4-20 x 1/2 2
18 RBM1209F Motor Belt 1
19 RBM1208F Motor Pulley 1
20 RBM1382F Hex Hd Scr 1/4-20 x 3/8 8
21 RBM1657F Collar 2
22 CB51 Screw, .250-20 x .750 Soc. Hd.2
17
To Next Page
