iSP DeLuxe Stitcher B3000 - Back Jog

Stitch'n Fold
Index Part Part Name Number
Number Number Required
Index Part Part Name Number
Number Number Required
1 RBM1625 Front Jog Plate 1
2 RBM1606F Rear Jog Plate 1
3 CB325 Soc Hd Scr 1/4-20 x 1/2
4 CB806 W asher 1/4 5
5 RBM1599F Threaded Guide Rod 1
6 RBM1603F Guide Rod 1
7 CG26 Button Hd Scr 10-32 x 3/8
8 CB988 Lockwasher #10 8
9 RBM1218A 12 Tooth Sprocket 2
* RBM1683F Back Jog Chain 1
10 CB651D Soc Hd Scr 10-32 x 1 1/4
11 RBM1289F Idler Stud 2
12 CB1262 Washer #10 4
13 RBM1269C 10 Tooth Sprocket 1
14 RBM1610F Jog Bracket 1
15 CB492 Flat Hd Scr 1/4-20 x 1 1/4
16 CB493 Nut 1/4-20 Hex 2
17 RBM1632F Guide Block 1
18 RBM1371A Solenoid and Components
19 CB2063 Washer 1 ID x 1 1/2 OD
20 RBM1626F Jog Shaft 1
21 RBM1250F Bushing, .375 Dia 2
22 RBM1586F Retaining Ring 2
* RBM1375F Extension Spring 1
23 CB206B Flat Hd Scr 8-32 x 5/8
24 CB719 Nut, 8-32 Hex 1
25 RBM1368F Jog Crank 1
26 CB56X Soc Hd Scr 8-32 x 1 3/8
27 CB719 Nut, 8-32 Hex 1
28 RBM1374F Jog Link 1
29 RBM1720F Clevis Pin 2
* CB451 Cotter Pin 2
30 RBM1631F Jog Finger 2
31 D30523F Soc Hd Scr 8-32 x 1/2
32 D14267F Lockwasher, No. 8 2
33 RBM1787F Finger Stop 2
34 RBM1725A Tensioner Bar Assy 1
35 RBM1289F Idler Stud 1
36 CB837B Retaining Ring 1
* RBM1753F Extension Spring 1
* CBB283E2 12" Wire (#11 to Jog Solenoid)
* CBB283F2 18" Wire (#10 to Jog On-O)
* CBB283G2 26" Wire (6LS to Jog On-O)
* CBB283H2 18" Wire (6LS to Jog Solenoid)
1
* CB285R2 Jog On/O Switch 1
* RBM1440F Spacer (Switch) 1
* CB651 Soc Hd Scr 10-32 x 1/2
* CB278 Nut, 10-32 Hex 2
* CG15B Switch 1
* CG14B Rd Hd Scr 4-40 x 5/8
* RBM1638F Cam 1
(Cam replaces Crank, RBM1637F, on left side.
See page 23.)

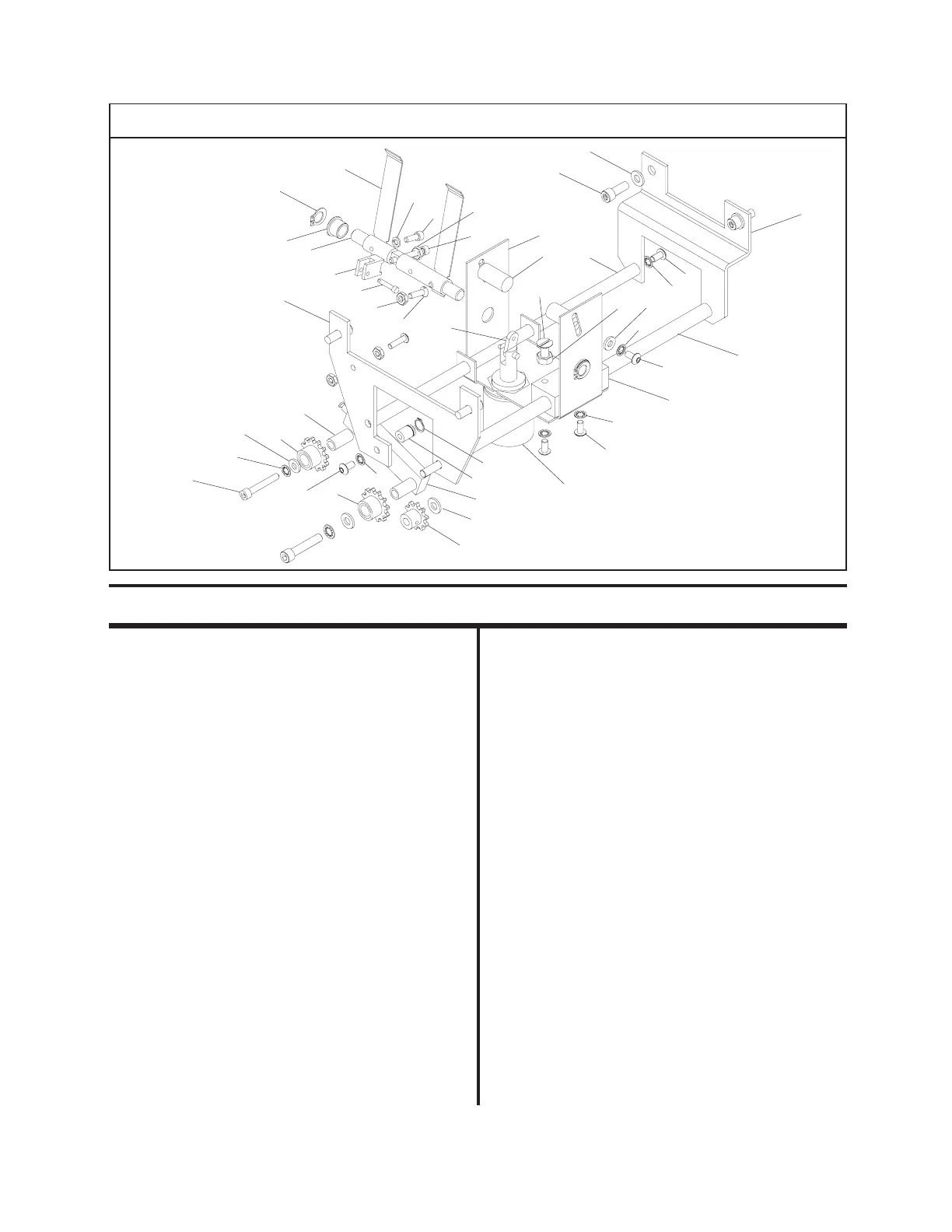

BAC K JOG ASSEM B L Y
1
6
5
13
10
12
17
18, 19
22
20
2
3
4
7
8
9
9
11
8
4
16
14
15
7
8
21
* Not shown
23
24
25
27
26
28
29
30
32
31
12
8
7
33
34
35
36
7
8
(RBM1000L Scene 1)
33
1
4
6
2
1
1
1
1
1
2
2
2
1
1
1
33
