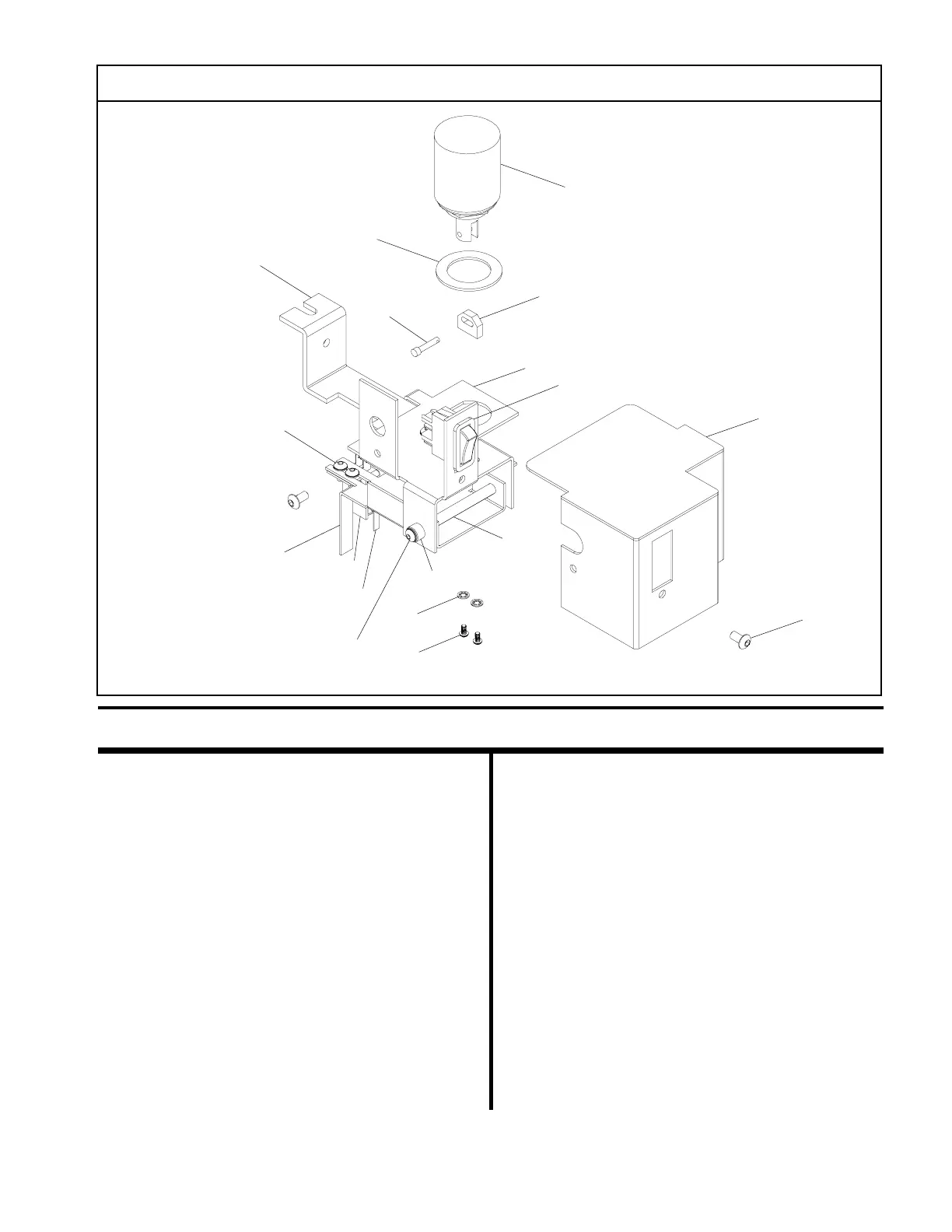

iSP DeLuxe Stitcher B3000 - Side;Corner Stitch Gate (Optional)

34
Index Part Part Name Number Index Part Part Name Number
1 RBM1371F 1
2 CB2063 Washer 1" x 1 1/2" 1
3 RBM1272F Solenoid Pivot Bracket 1
4 RBM1720F Clevis Pin 1
* CB451 Cotter Pin 1/16 x 1/2 1
5 CB287A Rd Hd Scr 6-32 x 1/4 2
6 CK50 Lockwasheer #6 2
7 RBM1746F Microswitch 1
* RBM1327F Rd Hd Scr 4-40 x 1/2 2
8 RBM1506F Switch Bracket 1
9 CG26N Button Hd Scr 8-32 x 3/8 4
10 CB988A Lockwasher #8 4
11 RBM1731F Gate Shaft 1
* RBM1666F Torsion Spring 1
12 RBM1249F Plastic Bearing 2
13 RBM1727F Stop Platform 1
14 RBM1728F Solenoid Bracket 1
15 RBM1729F Mtg. Bracket 1
* CG26A Button Hd Scr #10-32 x 1/2 2
* CB988 Lock Washer #10 2
S I D E / C O RNE R S TIT C H G A T E ( O P TIO N A L )
S K 8 8 9
16 RBM1730F Cover 1
17 CG26 Button Hd Scr #10-32 x 3/8 2
18 CB285R2 ON/OFF Switch 1
* RBM1733F Wing Hd Scr 1/4-20 x 1/2 1
* RBM1517F Strain Relief Bushing 1
* RBM1477F Pan Hd Scr #6 x 7/16 2
* RBM1743F Plug 1
* CK108 Contact Pin 4
* RBM1744F Strain Relief 2
* RBM1724F Cable 1
* RBM1342F Paper Ski 1
* CG26A Button Hd Scr #10-32 x 1/2 1
* RBM1702F Wing Nut 10-32 1
* Not shown
1
3
2
4
15
9, 10
5
7
8
6
9, 10
13
12
11
17
16
14
18
Solenoid
