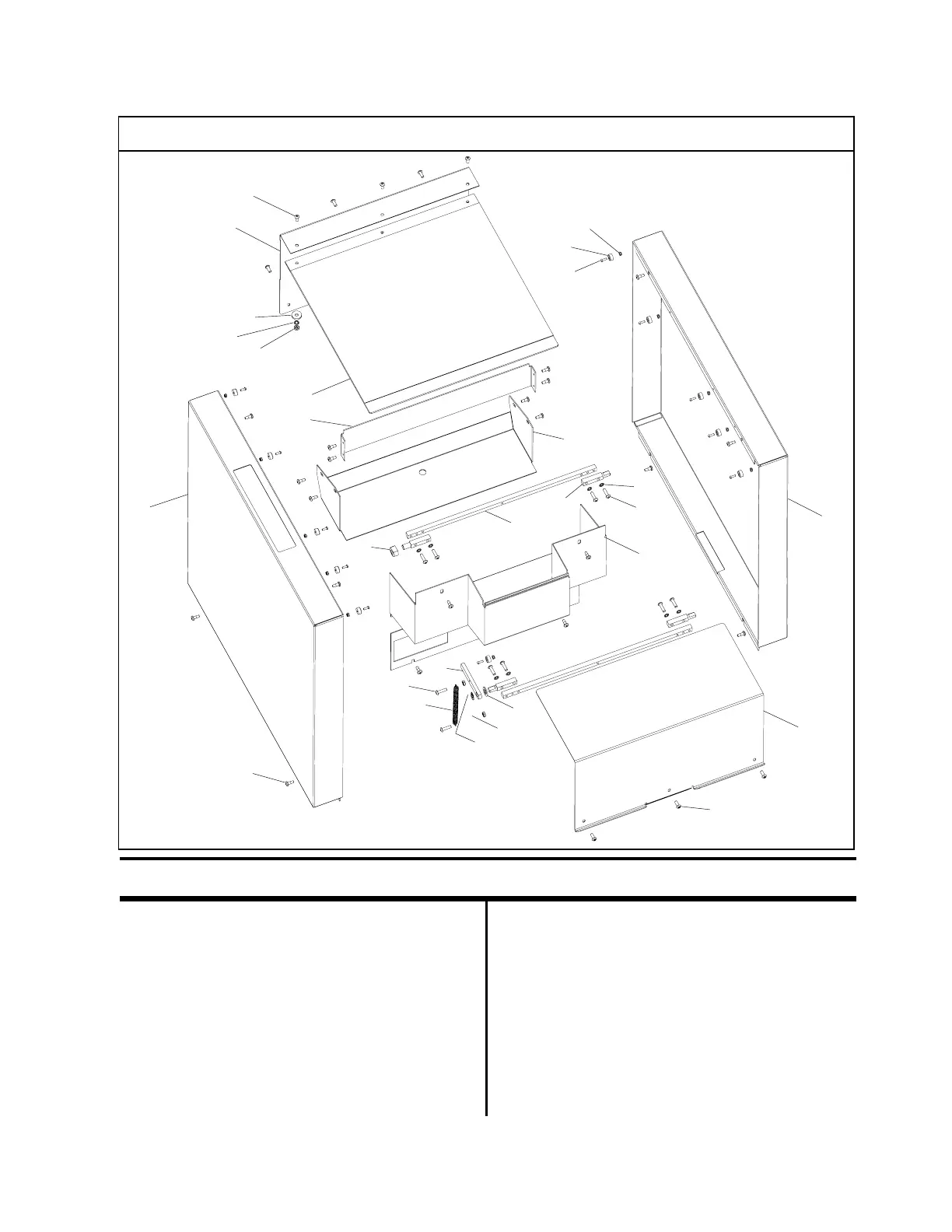

iSP DeLuxe Stitcher B3000 - Exploded Drawings & Parts Lists

16
Stitch'n Fold
C OVER S & GU A RDS
Index Part Part Name Number
Number Number Required
Index Part Part Name Number
Number Number Required
14 RBM1316F Rubber Bumper 11
15 D27396F Round Hd Scr 5-40 x 3/8
16 D27398F Elastic Lock Nut #5-40
17 RBM1686F Interlock Cam 1
18 RBM1694F Extension Spring 1
19 CB2125 Nylon Washer 1
20 RBM1586F Retaining Ring 1
21 RBM1688F Spring Arm 1
22 RBM1771F Top Guard Window 1
23 CG26A Button Hd Scr 10-32 x 1/2
24 RBM1790F Steel/Rubber Washer
25 RBM1849F Roller Guard 1
1 RBM1575F LH Cover 1
2 RBM1574F RH Cover 1
3 RBM1697F Front Cover 1
4 RBM1676A Back Cover 1
5 RBM1324F Pan Hd Scr 10-32 x 1/2
6 RBM1602F Front Guard 1
7 RBM1850F Top Guard 1
8 RBM1607F Guard Bracket 2
9 RBM1687F Guard Hinge 4
10 CG26C Button Hd Scr 10-32 x 3/4
11 CB988 Lockwasher #10
11
12 CG26 Button Hd Scr 10-32 x 3/8
13 CB278 Nut #10-32 6
