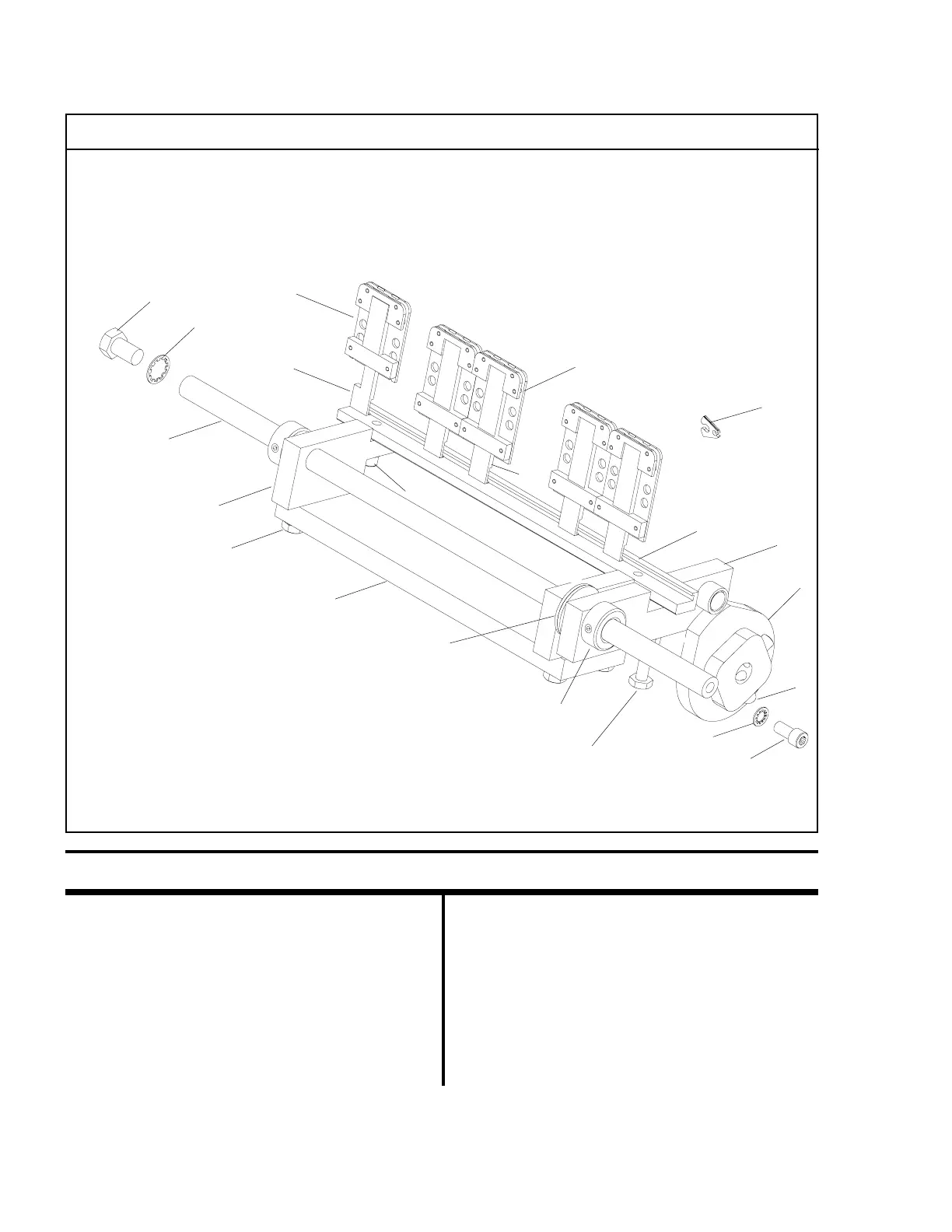

iSP DeLuxe Stitcher B3000 - Activated Clinch (Optional)

Stitch'n Fold
Index Part Part Name Number
Number Number Required
Index Part Part Name Number
Number Number Required
1 RBM1453F Short Clincher Assy 1
2 RBM1457F Clincher Assy 4
3 CA9083A Clincher Point (inside Assy's)
4 RBM1460F Short Clincher Slide 1
5 RBM1461F Clincher Slide 4
6 RBM1521F C lincher Cam 1
7 CB155 Set Scr 5/16-18 x .500
8 RBM1703A Cam Arm Assy 1
9 RBM1756F Cross Bar 1
10 RBM1458F Slider Base 1
11 RBM1463F Clincher Arm 2
A C TIVATED CLINCH ( OPTION A L )
12 RBM1639F Shaft 1
13 CB325 Soc Hd Scr 1/4-20 x .500
14 RBM1519F Lockwasher 1/4 2
15 CB198 Washer 1/2 x 1 1/4 2
16 RBM1657F Split Collar 2
17 RBM1795F Hex Hd Scr 1/4-20 x 2
18 CB493 Nut 1/4-20 1
19 CB487 Hex Hd Scr 1/4-20 x 3/4
20 CB328 Hex Hd Scr 3/8-16 x 5/8
21 RBM1520F Lockwasher 3/8 1
22 CB77A Soc Hd Scr 1/4-20 x .625
1
2
3
4
5
6
8
10
15
11
20
21
16
7
12
22
13
14
17, 14, 18
19
9
(RBM1000M Scene 1)
35
10
2
1
1
1
2
4
35
