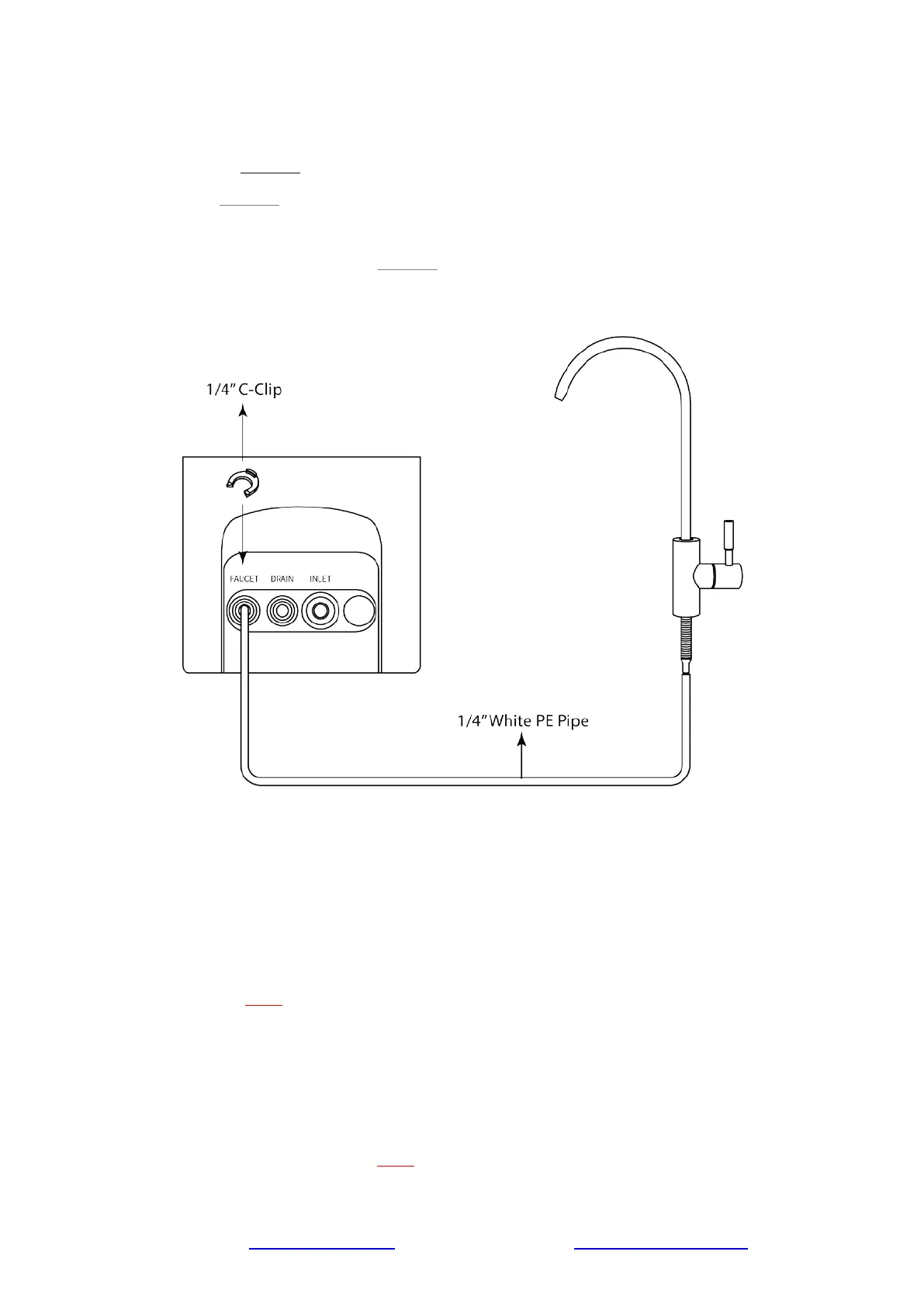

Drinking Faucet Pipeline Installation:
A. Cut the 1/4" WHITE tubing with a utility knife to the appropriate length.
B. Insert the WHITE tubing into the 1/4" port marked "Faucet". Insert the 1/4" C-clip to lock
the connection.
C. Insert the other end of the 1/4" WHITE tubing into the push-in fitting of the drinking faucet
and secure it using the 1/4'' C-clip.
Drain Pipeline Installation:
A. Choose a spot on the drainpipe that is convenient for installing the drain saddle and tubing.
A horizontal pipe is recommended to minimize dripping sounds during use.
B. Drill a 1/4" hole in the drainpipe and paste the black sticky pad around the hole.
C. Cut the 1/4" RED tubing end tip to make a 45-degree angle. Insert the tubing through the
hole to the drainpipe. Then install the backplate and tighten the two screws with hex nuts
while the tubing remains in the hole. Pull the tubing lightly to verify it is securely in place.
Note: The YouTube video ''iSpring RO System Drain Saddle ADS1K DIY Installation''
is a good reference.
D. Insert the other end of the 1/4'' RED tubing to the port marked "Drain" at the top of the
system and secure it using the 1/4'' C-clip.
