Wiring in the Master Station

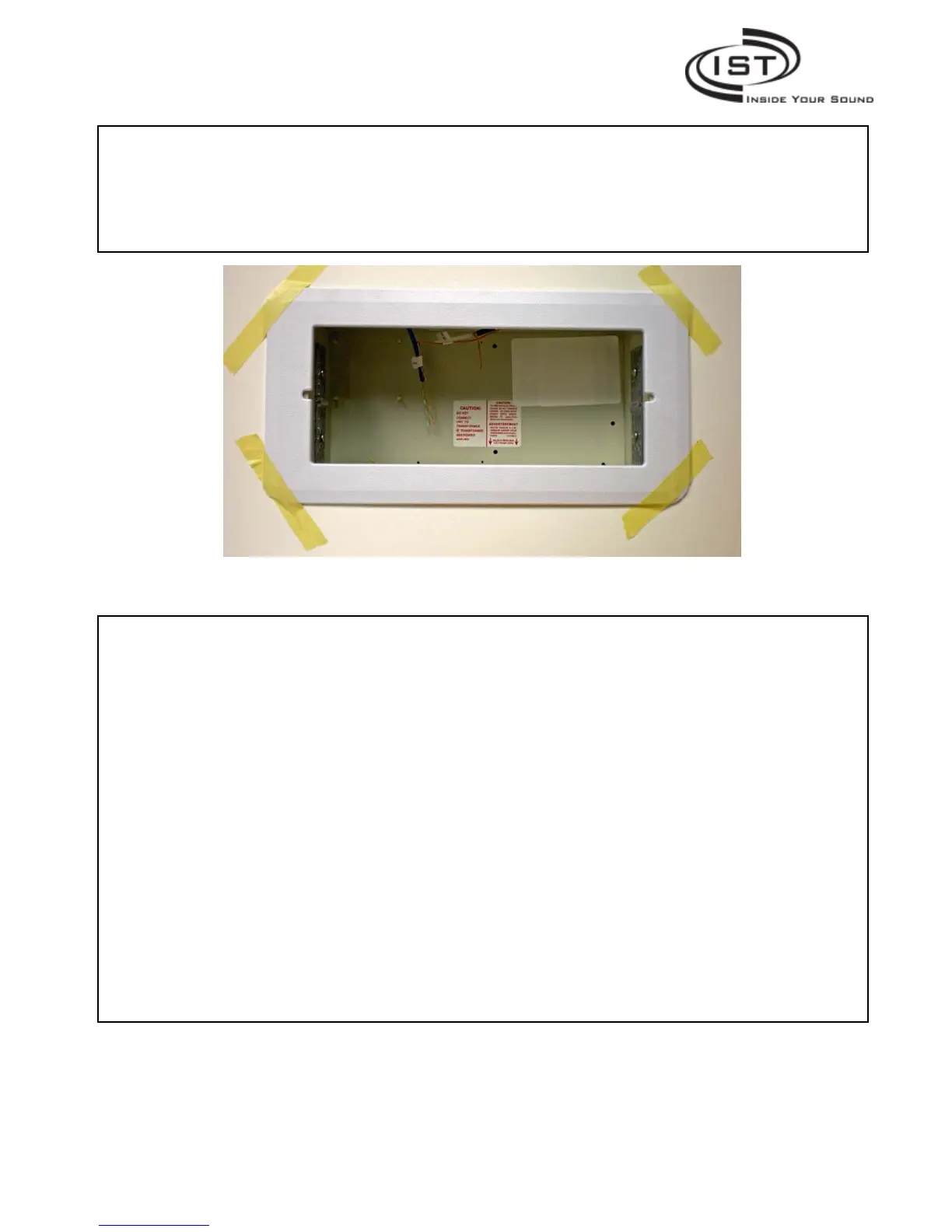

Prior to starting the wiring, align the plastic adapter frame to the existing rough-in box.
TIP: Hold in place by placing masking tape on the corners.
To wire the power you will need a licensed Electrician. The existing Romex will need to be
wired to the power leads on the Retrofit master, the connections placed in the old power
or transformer box and the cover replaced. DO NOT TURN ON POWER.
Proceed to wire the AM and FM antennas to the rear of the master.
Now you can plug in the removable connectors you wired to the existing wires for the
room, patio and door stations. The receptacles on the master printed circuit board are
marked for “room” “door” and “Patio”. Plug in the existing wires into the appropriate
receptacle.
Intrasonic Technology, Inc. l 610 presidential Dr. Suite 104 l Richardson, Texas 75081 877-435-0670
Page 8 of 18
