ENGINE MECHANICAL (C22NE, 22LE, 20LE) 6A-69
Tighten (Torque)
Starter to cylinder block:
Engine side - 45 N⋅m (4.6 kgf⋅m)
Transmission side - 75 N⋅m (7.6 kgf⋅m)
Starter support to cylinder block - 25 N⋅m (2.5 kgf⋅m)
Re-connect cables.

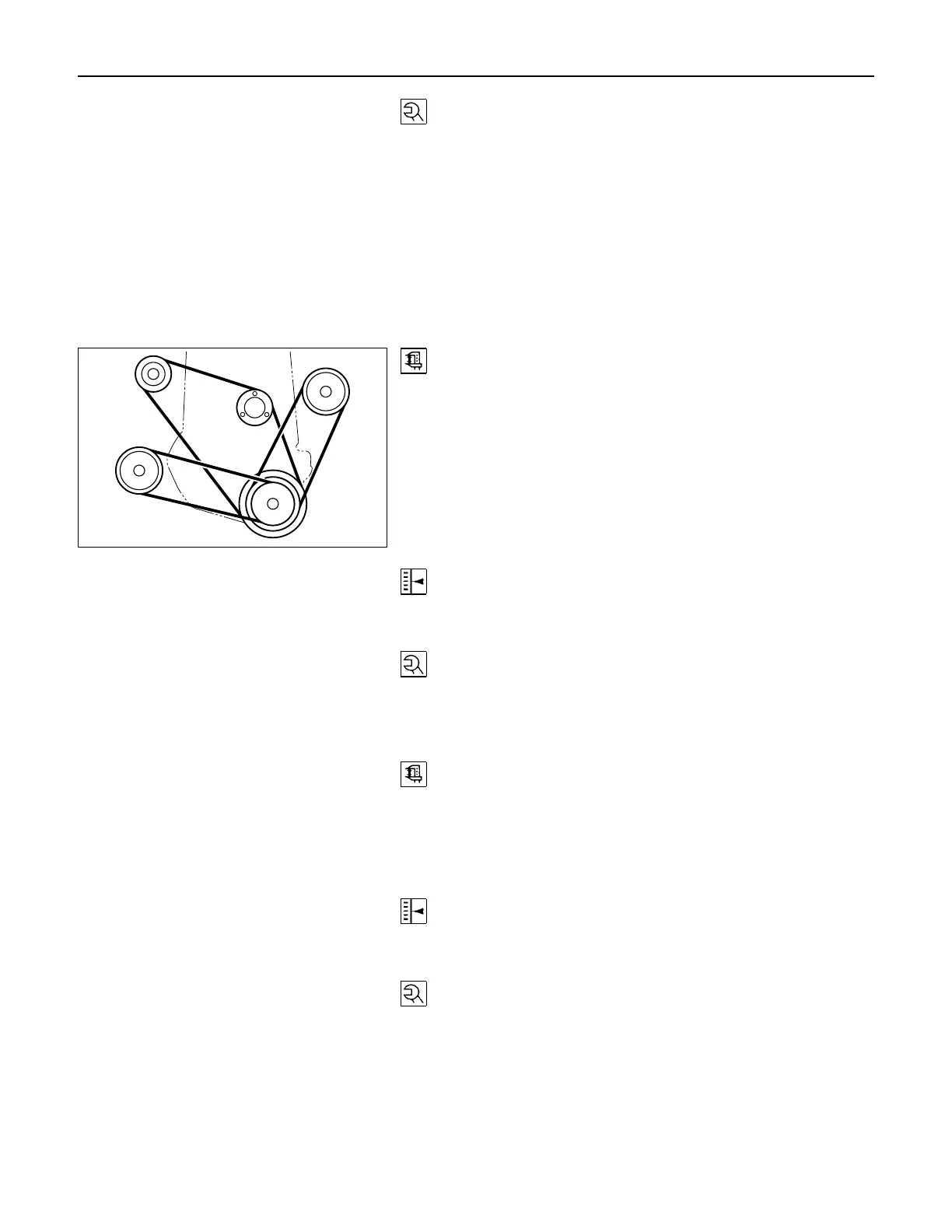

V-belt Tension of Alternator
Measure
Measure V-belt tension of alternator.
Permitted values for new V-belt are approx. 311-489N (31-50
kgf).
Note:
V-belt to deflection as loaded with 10kg : 8-12mm.
Adjust
Adjust V-belt tension by loosening clamping bracket and lower
alternator bracket and moving alternator.
Tighten (Torque)
Clamping bracket to alternator - 25 N⋅m (2.6 kgf⋅m)
Lower alternator bracket - 25 N⋅m (2.6 kgf⋅m)
V-Belt Tension of Power Steering Pump
Measure
Measure V-belt tension of power steering pump. Permitted
values for new belt are approx. 578-712N (59-73 kgf) and 534-
667N (54-68 kgf) for used belt.
Note:
V-belt to deflection as loaded with 10kg : 8-12mm.
Adjust
Adjust V-belt tension by loosening clamping bolt, lower pump
bracket, and adjusting nuts and moving steering pump.
Tighten (Torque)
Adjusting nuts - 18 N⋅m (1.8 kgf⋅m)
Clamping bolt - 25 N⋅m (2.6 kgf⋅m)
Lower pump bracket - 26 N⋅m (2.6 kgf⋅m)
