FUEL SYSTEM

136

INJECTION NOZZLE

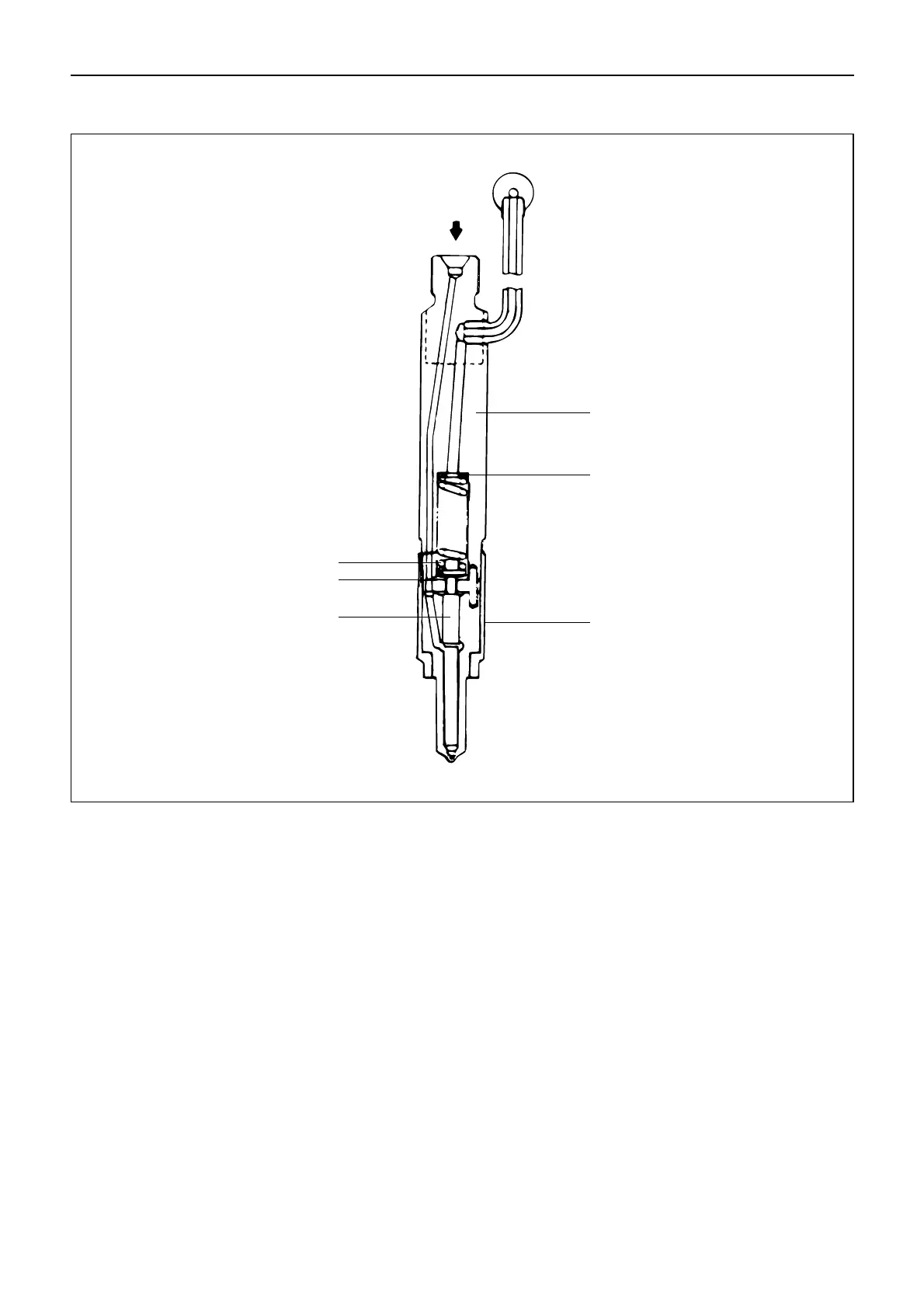

A hole (with 4 orifices) type injection nozzle is used. It consists of the nozzle body and the needle valve

assembly.

The injection nozzle sprays pressurized fuel from the injection pump into the combustion chamber

through the nozzle body injection orifice.

Nozzle holder

Adjusting shim

Retaing nut

Spring

Spring seat

Injection nozzle
