Isuzu A-4JB1 Repair Manual

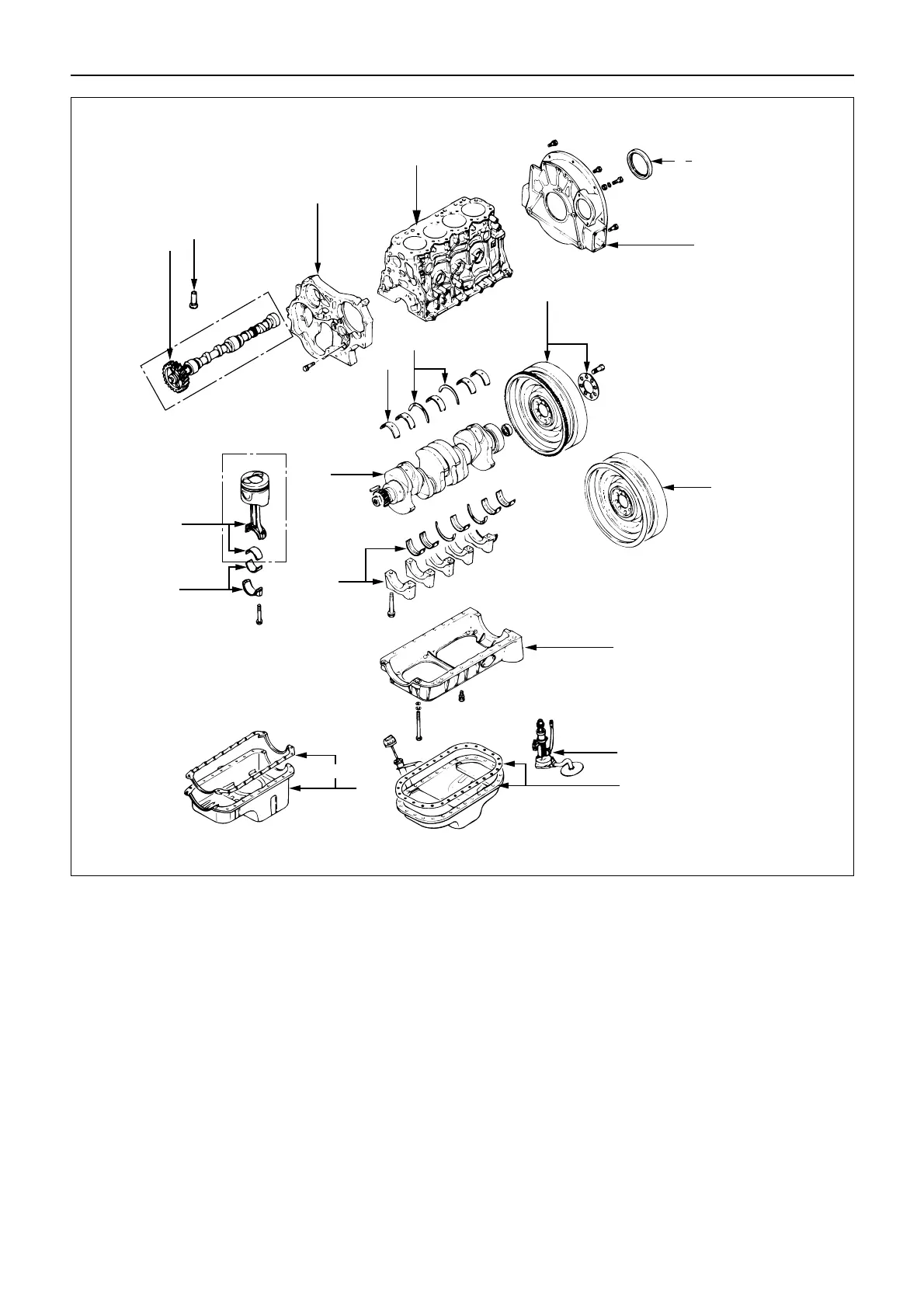

ENGINE ASSEMBLY ( 1 )
34
14
6
7
16
15
4
9
8
12
10
13
11
3
3a
★
2
5
1a
1
★
★Repair kit
Disassembly Steps - 3
1. Oil pan
1a. Oil pan (If so crankcase equipped)
2. Crankcase (If so equipped)
▲ 3. Flywheel
3a. Rear flywheel (If so equipped)
4. Flywheel housing
5. Oil pump with oil pipe
▲ 6. Camshaft with camshaft timing
gear and thrust plate
7. Timing gear case
▲ 8. Connecting rod cap with
lower bearing
▲ 9. Piston and connecting rod with
upper bearing
▲ 10. Crankshaft bearing cap with
lower bearing
11. Crankshaft thrust bearing
12. Crankshaft with crankshaft timing gear
▲ 13. Crankshaft upper bearing
▲ 14. Tappet
15. Crankshaft rear oil seal
16. Cylinder body
