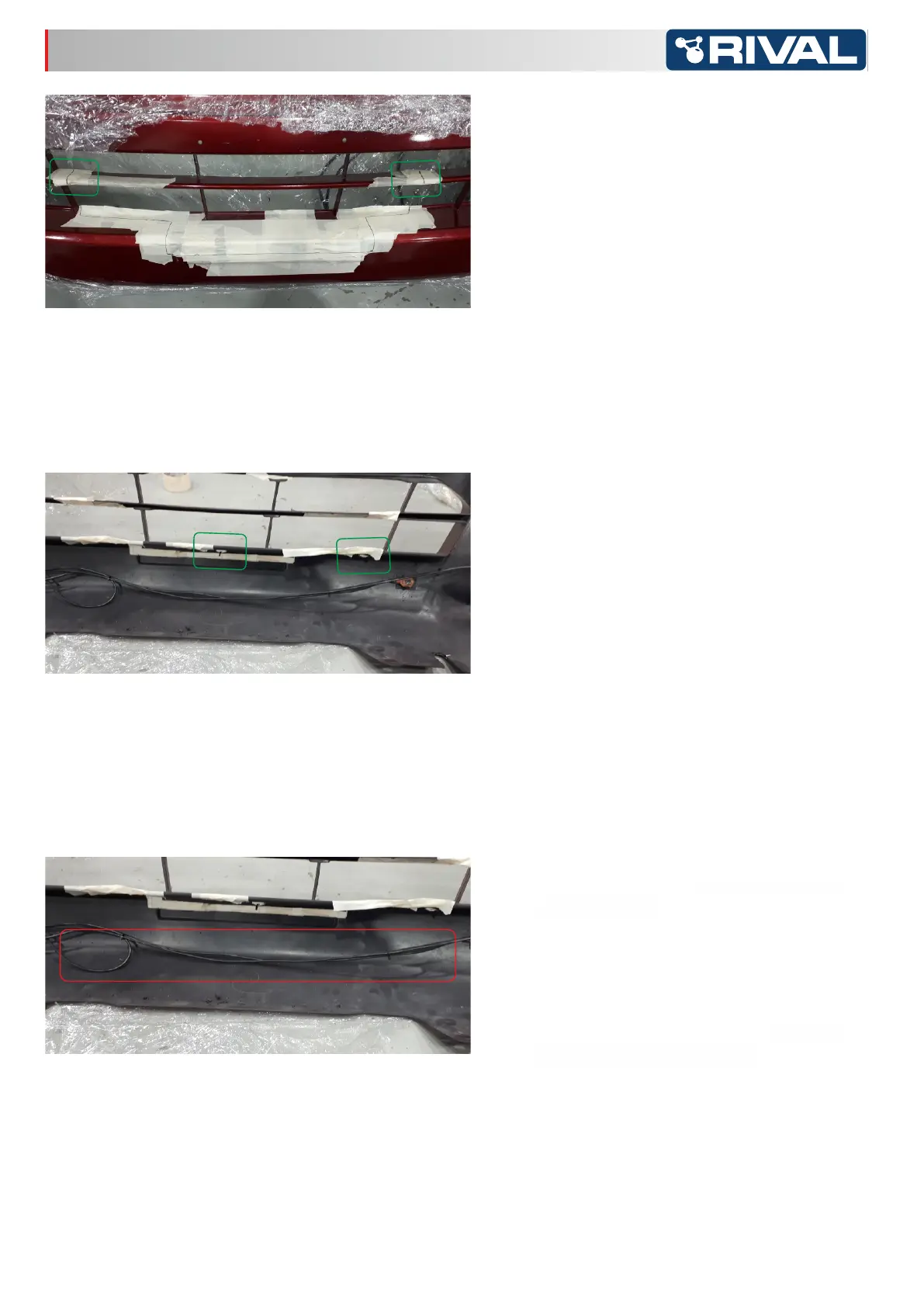

Stick masking tape on the grille, and
mark cut line, as shown.
26. Measure width of radiator grille area
to cut out, following winch dimensions,
27. Carefully cut tie wraps, inside the
bumper, that fixed wires with bumper
fittings, as green zone shown.
Cut tie wrap “tails”.
28. Fix wires inside the bumper, as red
zone shown, using pressure sensitive
liner (pos. 24).
Then fix wires at this area, using tie
wraps 390x4,8 mm (pos. 25).
* It is necessary to clean bumper
surface off the fat and dirt, to stick
pressure sensitive liners.
www.rival4x4.com
Date: 30.05.2019
Installation manual 2L.9101.1
< Page 12 of 16 >
Инструкция по установке
INSTALLATION PROCEDURE
