Isuzu D-Max Installation Manual

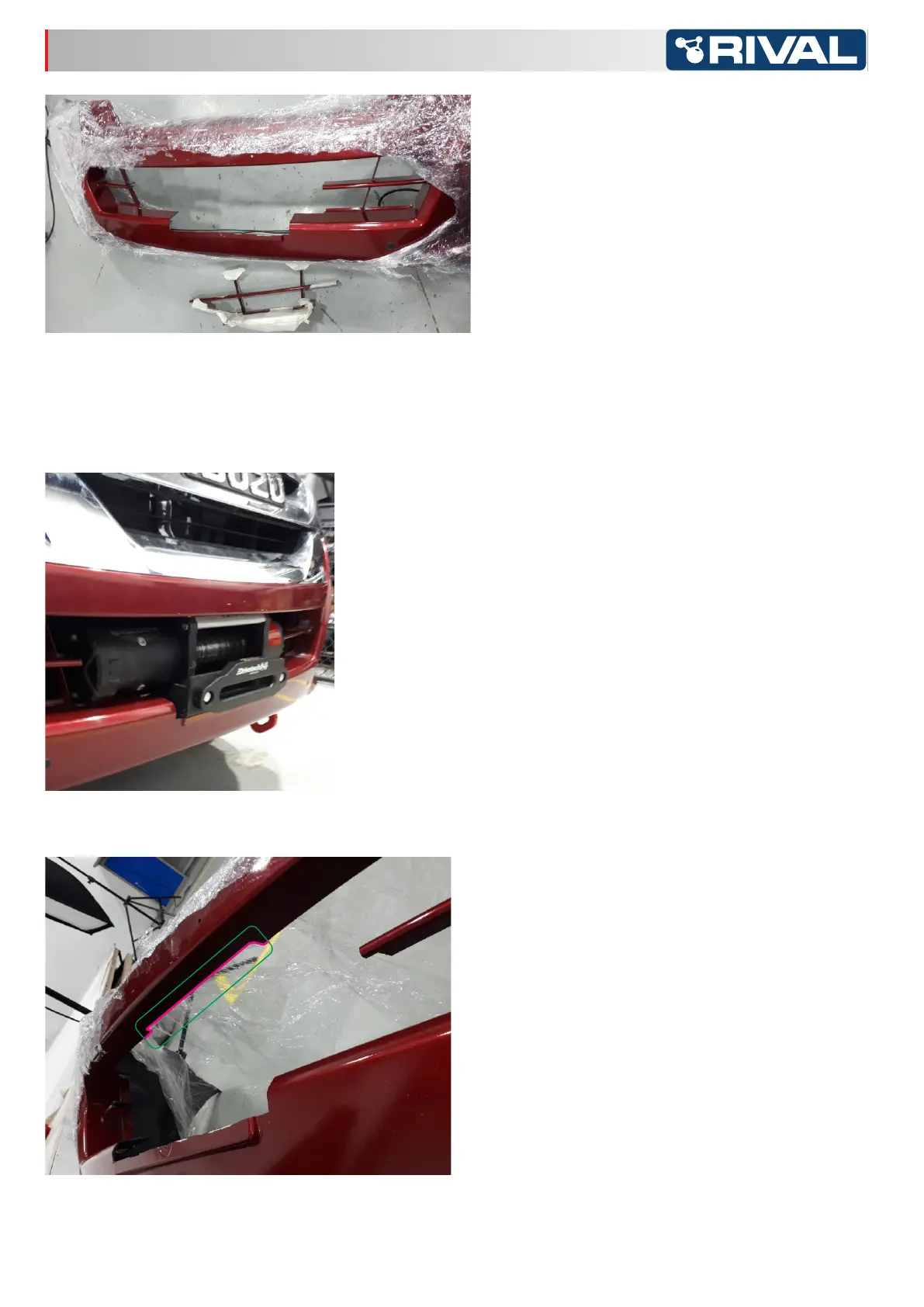

29. Make sure, that wires do not
handicap to cut the bumper.
angle grinder.
* Polish burrs and sharp edges.
Carefully cut out marked area, using
30. Try the bumper on the vehicle, and
check that winch doesn’t pull out and
contact the bumper.
Otherwise, it is necessary to cut out the
bumper, following winch, or winch
bracket dimensions.
Polish burrs and sharp edges.
31. In case if bumper doesn’t fit,
depends on winch, cut out inner top part
of bumper, as shown.
Polish burrs and sharp edges.
www.rival4x4.com
Date: 30.05.2019
Installation manual 2L.9101.1
< Page 13 of 16 >
Инструкция по установке
INSTALLATION PROCEDURE
