iSystem iC5000 Hardware Reference

 iSYSTEM, October 2016 43/69

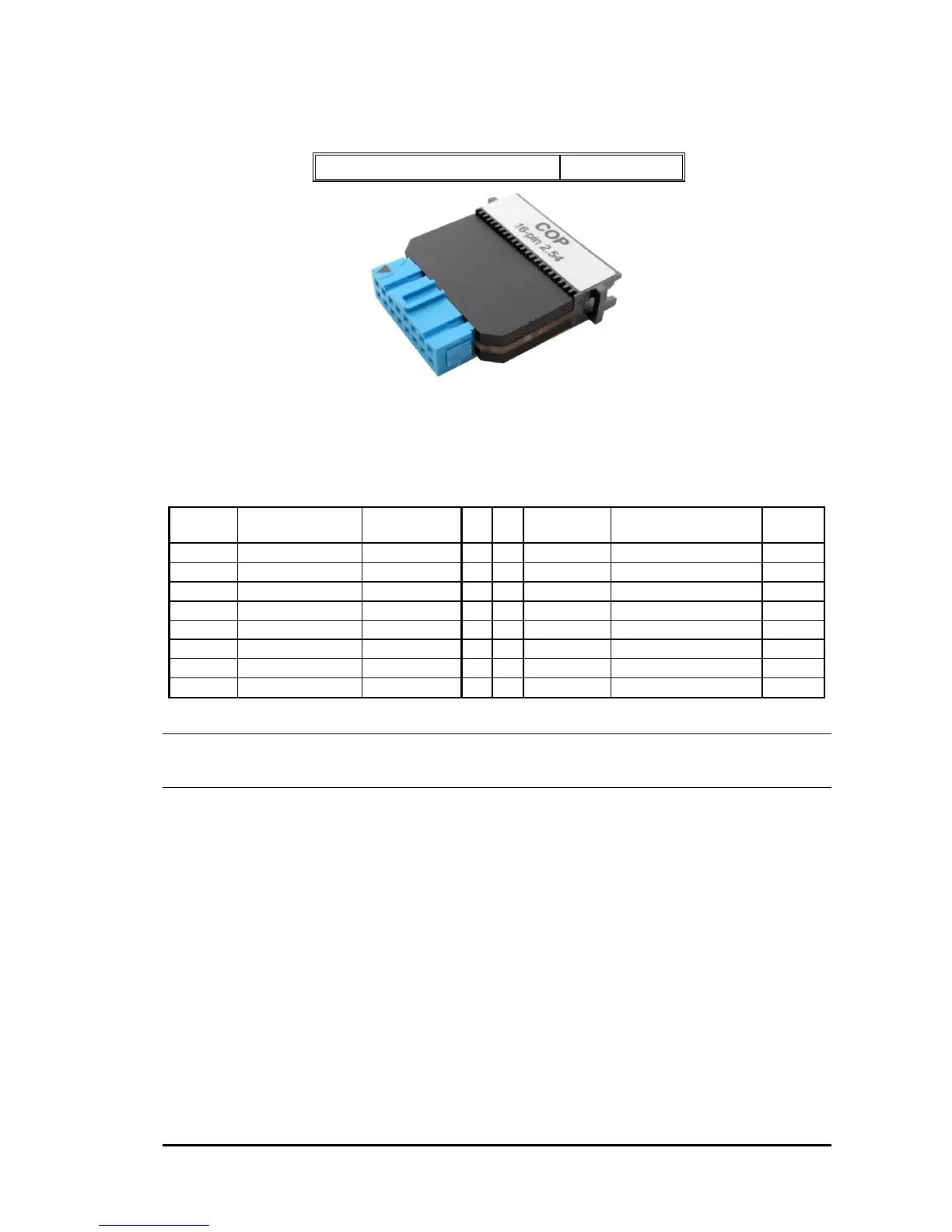

 16-pin 2.54mm Freescale COP Cable Adapter
Ordering code
IC50153
This adapter is used to connect the iC5000 / iC5500 / iC6000 development system to Freescale MPC6xx,
MPC82xx, MobileGT, MPC7xx or MPC83xx based target via COP/JTAG debug interface. It connects to
Debug/Trace module on one side and to the target debug connector on the other side. It can be used for targets
featuring 16-pin 2.54 pitch target debug connector with Freescale COP pinout.
The following pinout is valid on the target side:
Signal
direction
Signal description
Signal
Pin
Pin
Signal
Signal description
Signal
direction
I
Standard JTAG
TDO
1
2
QACK#
100-ohm pull-down
O
O
Standard JTAG
TDI
3
4
TRST
Standard JTAG
O
I
Status (optional)
HALTED
5
6
VTref
Reference voltage
I
O
Standard JTAG
TCK
7
8
CKSTP_IN
Status (optional)
O
O
Standard JTAG
TMS
9
10
NC
Not Connected
O
Soft Reset
SRESET
11
12
GND
Ground
O
Hard Reset
HRESET
13
14
NC
Not Connected
I
Status (optional)
CKSTP_OUT
15
16
GND
Ground
16-pin Freescale COP target pinout
Note: 16-pin 2.54mm Freescale COP Cable Adapter features resettable fuses on all pins except for pin 15. These
protect debug signals against overcurrent and cycle back to a conductive state after the excessive current fades
away. A signal on pin 15 is protected via 100 ohm serial resistor.
The adapter connects to the target via a 16-pin 2.54 mm connector (for example Yamaichi: FAS-1601-2101-2-
OBF). A target should feature a matching part (for example WÜRTH ELEKTRONIK: 612 016 216 21).
