3. NOMENCLATURE AND FUNCTIONS
1

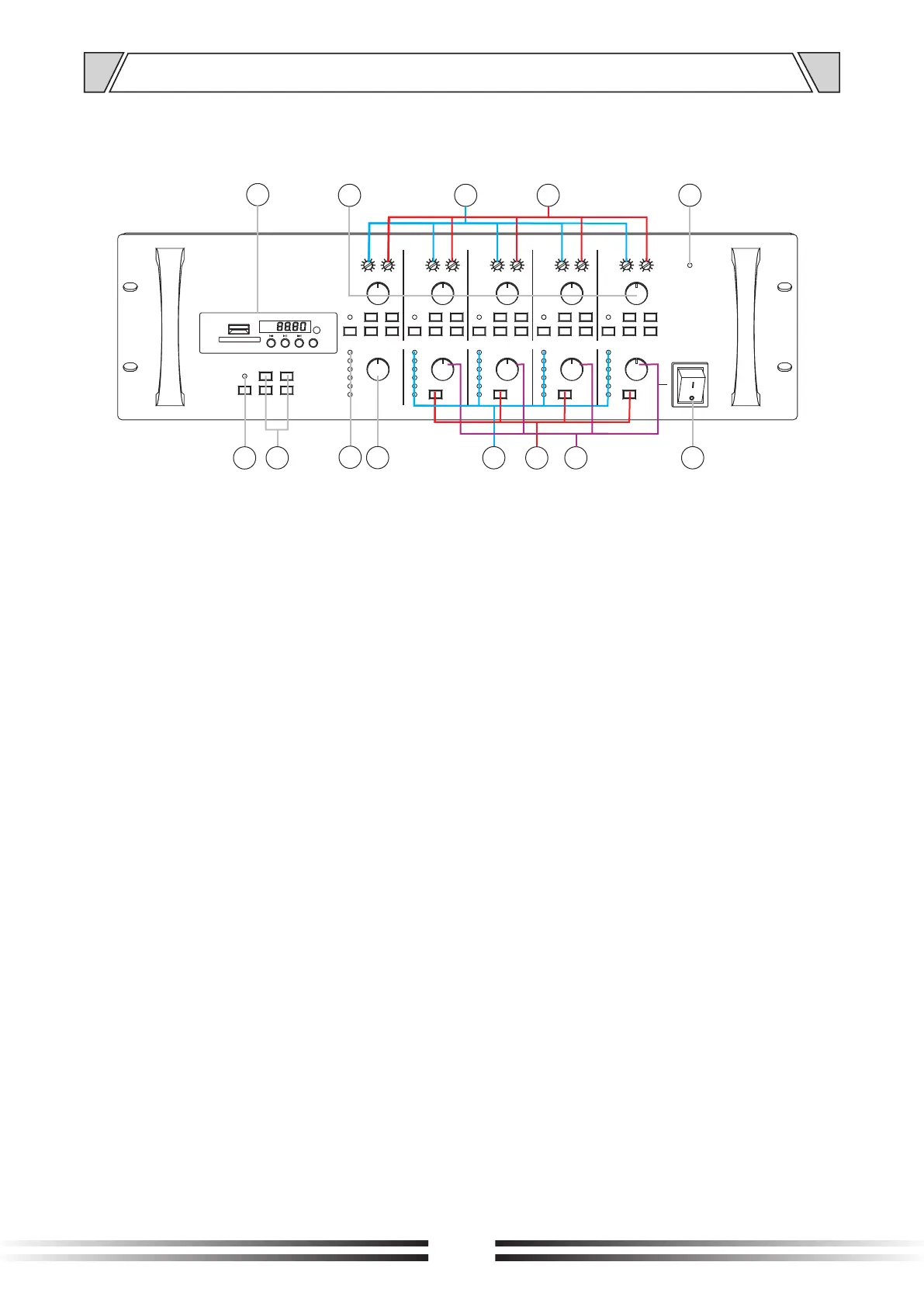

3.1 FRONT PANEL
6
2
3
4
8
9
12
13
5
6
7
1011
1.
2.
3.
4.
Mute button and indicator,
mute on, indicators are on;
mute off, then indicators are off
Amplifier matrix 4 channel selector button
Monitor level indicator
Monitor volume control
Adjust monitor volume, clockwise rotation,
increase volume, conversely reduce
5. 1-4 zone amplifier level indicator
6. 1-4 zone monitor selector button
7. 1-4 zone amplifier output volume control
8. ON/OFF Power switch
Switch on, power on, switch down, power off
9.
10.
11.
POWER-Power indicator
When power on, power indicators are on;
when power off, power indicators are off
CH1-CH4 High-pitched tone control
Adjust high pitch, clockwise rotation, increase
volume, conversely reduce
CH1-CH4 low-pitched tone control
Adjust low pitch, clockwise rotation, increase
volume, conversely reduce
12. CH1 volume control
13. Mp3 player, with USB & SD card slot
