ITech IT-M7723 - Front Panel Keys at a Glance

Quick Reference
No. Name Description
5 Function keys
group
Please refer to 1.3 Front Panel Keys at a Glance for
detailed description about the function keys.
6 Push button
rotary
The functions is described as follows.
• Rotate the push button rotary to adjust the value
setting or scroll pages to view menu items. Ro-
tate the push button rotary clockwise to increase
the set value and anticlockwise to decrease the
set value
• Pressing the push button rotary acts like press-
ing [Enter] key to confirm an operation.
7 The left/right
navigation keys
and composite
keys
The functions is described as follows.
• The left and right navigation keys are used to
adjust the cursor to the specified position or
scrolls pages to view menu items.
• Save/Recall the present settings.
8 Numeric keys The Numeric entry keys do the following.
• The 0 through 9 keys enter numbers.
• The (.) key is the decimal point.
• The ± key is used to enter a positive or negative
signs.

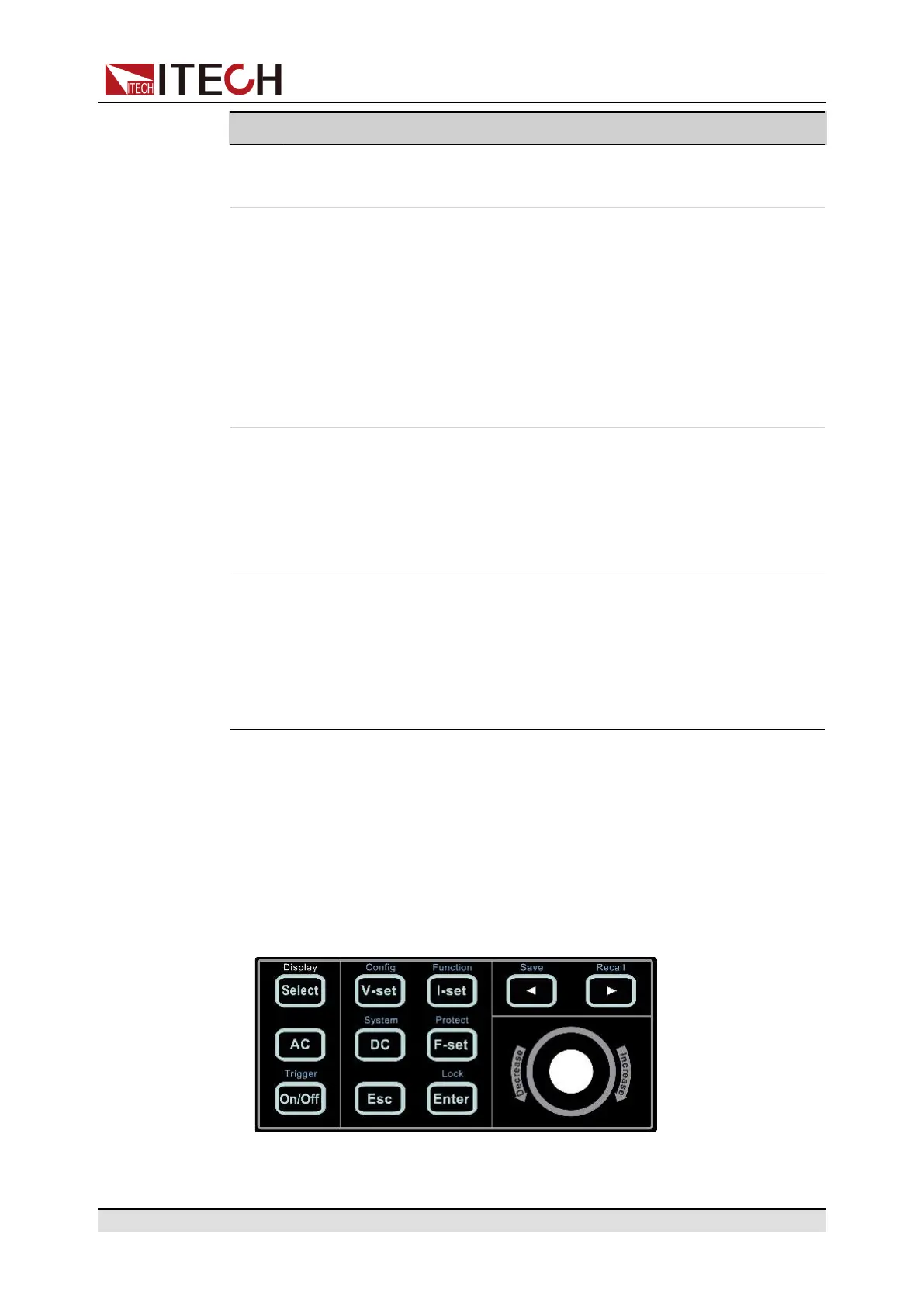

1.3 Front Panel Keys at a Glance
The keys introduction of IT-M7700 series power source is shown as follows.
• IT-M7721/IT-M7722/IT-M7721L/IT-M7722L/IT-M7722D/IT-M7723D/IT-
M7722E/IT-M7723E keys
• IT-M7723 keys
