ITech IT8516C+ User Manual

Inspection and Installation
Copyright © Itech Electronic Co., Ltd. 10
current rated current, use several pieces of red and black test cables. For
example, the maximum current is 1,200A, then 4 pieces of 360A red and
black cables are required.
4. (Optional) Install the load input terminal cover.
5. Directly connect the other end of the red and black cables to the DUT
terminal.
Remote measurement
Remote sensing is used to counteract the effect of lead resistance. For
example, if you connect a power supply to the DC Load, the voltage at the
power supply's terminals will not be the same as the voltage at the DC Load's
terminals if there is a current flowing because of the finite resistance from the
wires. Using remote sensing, you can sense the voltage at the power supply's
terminals, effectively removing the effect of the voltage drop in the connection
wire.
When using remote sensing, the power displayed by the instrument includes
both the power dissipated inside the instrument and the power dissipated in the
leads from the power supply to the DC Load's input terminals.

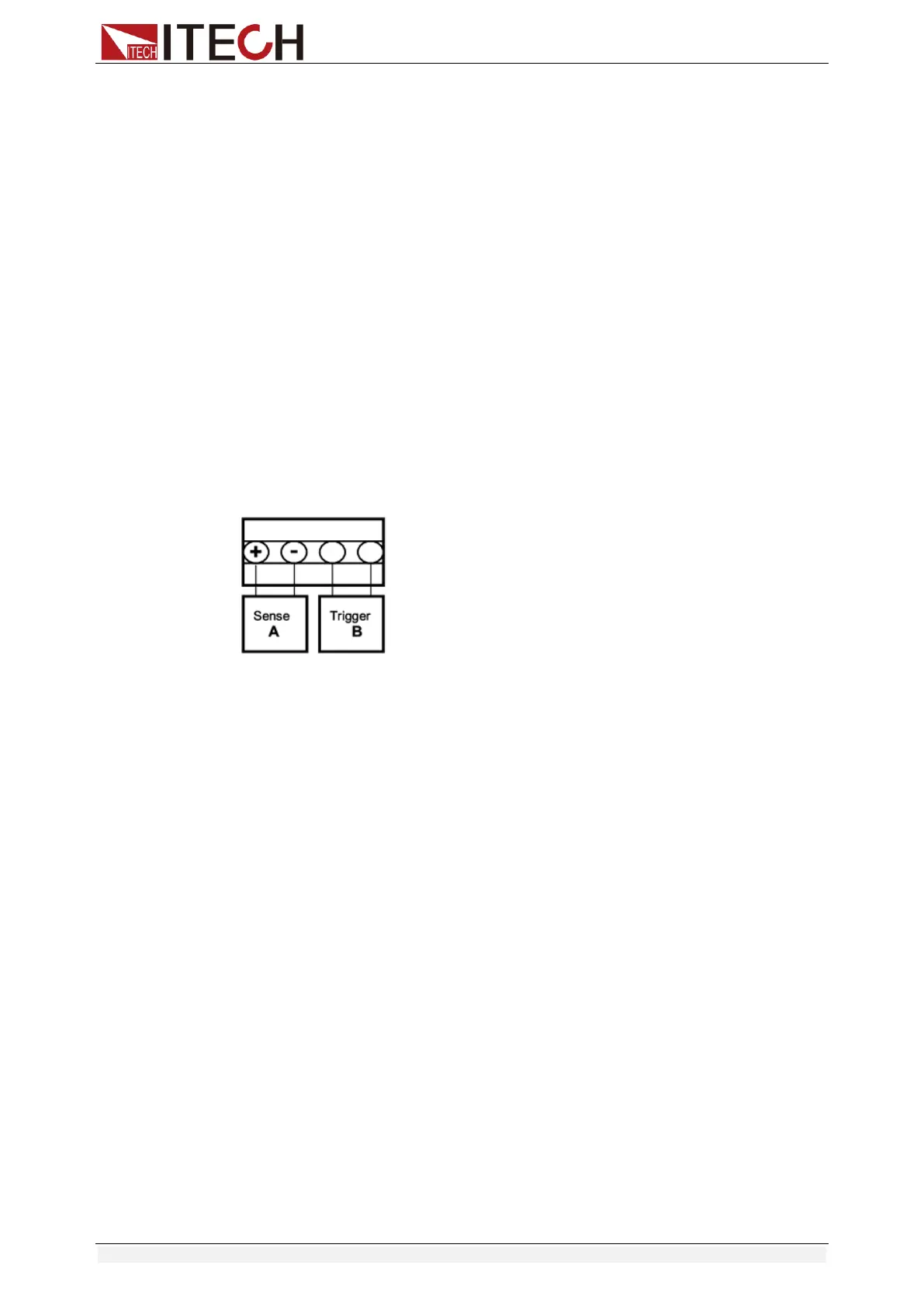

Sense terminals in the rear panel displayed as follows:
Remote Sensing: SENSE (+) and SENSE (–) are the remote sensing inputs.
By eliminating the effect of the inevitable voltage drop in the DC load leads,
remote sensing provides greater accuracy by allowing the DC load to regulate
directly at the source's output terminals.
Before using the remote measurement function, you must first set the load to
remote measurement mode. The steps are as follows:
1. Press [Shift] + [9] key into the menu.
2. Press Right/Left key to select SENSE, press [Enter] key to confirm.
3. Select ON, then the remote sense function has been set.
Note:
When not using the remote measurement function, press the OFF key to
close the remote measurement mode.
4. Refer the following diagram to connect test cables.
Wiring Diagram for Remote Sensing:

ITech IT8516C+ Specifications

General

Model	IT8516C+
Category	Test Equipment
Output Current	0-120A
Voltage Resolution	10mV
Current Resolution	1mA
Resolution	10mV/1mA
Interface	USB, RS232, GPIB (optional)
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 70°C
Operating Mode	CC, CV, CR, CP

Summary

Chapter 1 Inspection and Installation

Verifying the Shipment

Check package contents and report discrepancies or damage immediately.

Instrument Size Introduction

Details instrument dimensions for proper installation and space selection.

Adjustment of Load Handle

Instructions on how to adjust the load handle for carrying and placement.

Disassembly of Load Handle

Steps to remove the load handle before equipment installation.

Rack Mounting

Guidance on installing IT8500+ series loads on a standard 19-inch rack.

Connect the Power Cord

Precautions and steps for connecting the power cord safely.

Connect the Device Under Test (DUT)

Procedures and safety warnings for connecting the load to the DUT.

Chapter 2 Quick Start

Brief Introduction

Overview of IT8500+ series DC programmable electronic loads.

Product Feature

Lists key features and capabilities of the IT8500+ series loads.

Front Panel Introduction

Describes the layout and components of the front panel.

Front Panel Keys

Details the function of each key on the front panel.

Combination Keys

Explains key combinations for accessing advanced functions.

VFD Annunciators

Describes the meaning of indicators on the Vacuum Fluorescent Display.

Rear Panel Introduction

Identifies and explains connectors and switches on the rear panel.

Power-on Selftest

Outlines the self-test procedure performed upon instrument startup.

Chapter 3 Functions and Characteristics

Local Mode/Remote Mode

Explains how to switch between front panel and PC control.

Operation Mode

Details the four primary operation modes: CC, CV, CR, CW.

Constant Current Mode (CC)

How to set and operate the load in constant current mode.

Constant Voltage Mode (CV)

How to set and operate the load in constant voltage mode.

Constant Resistance Mode (CR)

How to set and operate the load in constant resistance mode.

Constant Power Mode (CW)

How to set and operate the load in constant power mode.

Input On/Off Control

Describes the function of the front panel input On/Off button.

Key Lock Function

How to lock/unlock front panel keys to prevent accidental operation.

Short-circuit Analog Function

How to simulate and measure short-circuit conditions.

System Menu (System)

Navigating and configuring system settings via the system menu.

Config Menu (Config)

Accessing and setting configuration parameters for the instrument.

Trigger Function

Explains the use of triggers for transient and list operations.

LIST Operation

How to create and execute complex test sequences using LIST mode.

Test Function

Overview of various test functions available on the load.

Transient Test Function

Details how to perform transient tests in continuous, pulse, or toggled modes.

OCP Test Function

Procedure for testing Over Current Protection (OCP).

OPP Test Function

Procedure for testing Over Power Protection (OPP).

Battery Discharge Test

Steps for performing battery discharge tests with specified stop conditions.

CR-LED Test Function

How to use CR mode for LED testing, including Vd and R calculation.

Measurement of Voltage Rise Time

Procedure for measuring voltage rise/drop times.

Saving and Recalling Settings

How to save and recall instrument parameter settings.

VON Function

Setting the voltage-on threshold for load activation.

Protection Function

Overview of safety protection features like OVP, OCP, OPP, OTP.

Current Monitoring (I Monitor)

How to monitor input current via an analog output.

Ripple Function

How to measure voltage and current ripple.

Chapter 4 Automatic Test Function

Introduction

General introduction to automatic test functions.

Automatic Test Mode Switching

How to select between IT8500+ and IT8500 compatible modes.

Test Mode for IT8500+

Steps for editing and setting up automatic test sequences for IT8500+.

Test Mode for IT8500

Steps for setting up automatic test sequences compatible with IT8500.

Chapter 5 Specifications

Specifications

Detailed technical specifications for the IT8500+ series.

Supplementary Characteristics

Additional features and operational notes not covered in main specs.

Chapter 6 Communication Interfaces

Communication Modules Introduction

Overview of available communication modules and interfaces.

Communication with PC

How to establish communication between the load and a PC.

Appendix

Specifications of Red and Black Test Lines

Details on optional test cables and their current ratings.
