Dual Time Mode

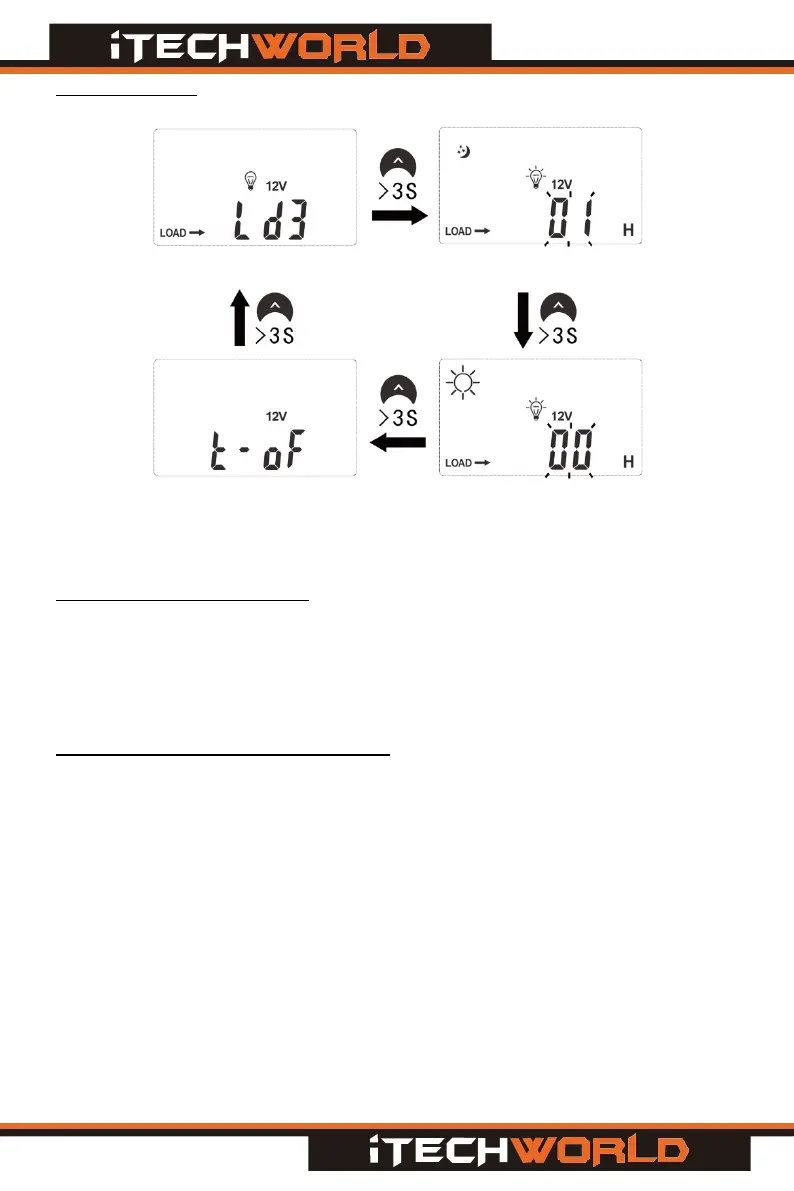

Figure 13 Dual Time Mode Flow Chart
LD3 Dual Time Control Mode: The controller will turn on the load automatically
for the set amount of time during night and day, it will then turn the load off after
the elapsed time. When LD3 is selected the above additional settings will be
prompted for input, the parameter will be flashing, use buttons A and B to increase
or decrease the desired runtime.
LD4 Inverted Light/Load Control Mode: The controller will automatically turn on
the load when there is solar input detected(day) and turns off the load when no
solar input is detected(night). (Detection time of day and night is about 30
seconds)
- 15 -
Night duration of Load On,
(1-13Hrs)
Day duration of Load On,
(0-5Hrs)
