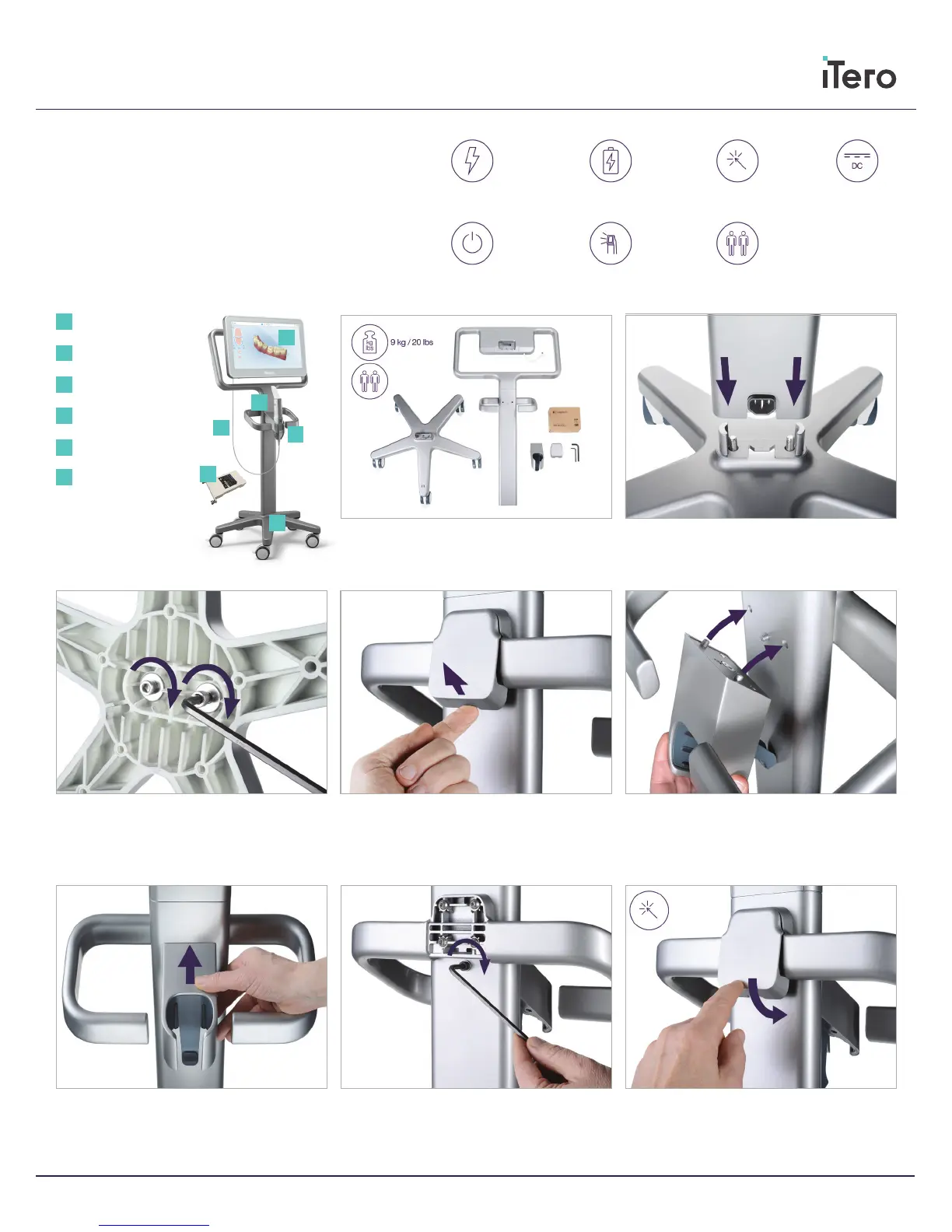

Chapter 3:
Assembly instructions
Step 1: Assembly
Please follow the instructions below to assemble your
iTero Element 5D scanner:
3.
Tighten the two allen screws using the larger
wrench
6.
Hold the cradle
7.
Tighten the wand cradle allen screw on the
back using the smaller wrench
8.
Reattach the cover behind the handle
4.
Remove cover from the back of the handle
2.
Connect post to the wheel base
1.
Check the content of the box
5.
Attach the wand cradle to the front of the
wheel stand
A
B
C
D
Wheel stand
Wand with cable
Wand cradle
HD touch screen
External battery
Wand cable
A
B
C
D
E
F
F
E
AC power Battery Click DC power
Power button 2 people are required
for installation
Wand
(scanning unit)
