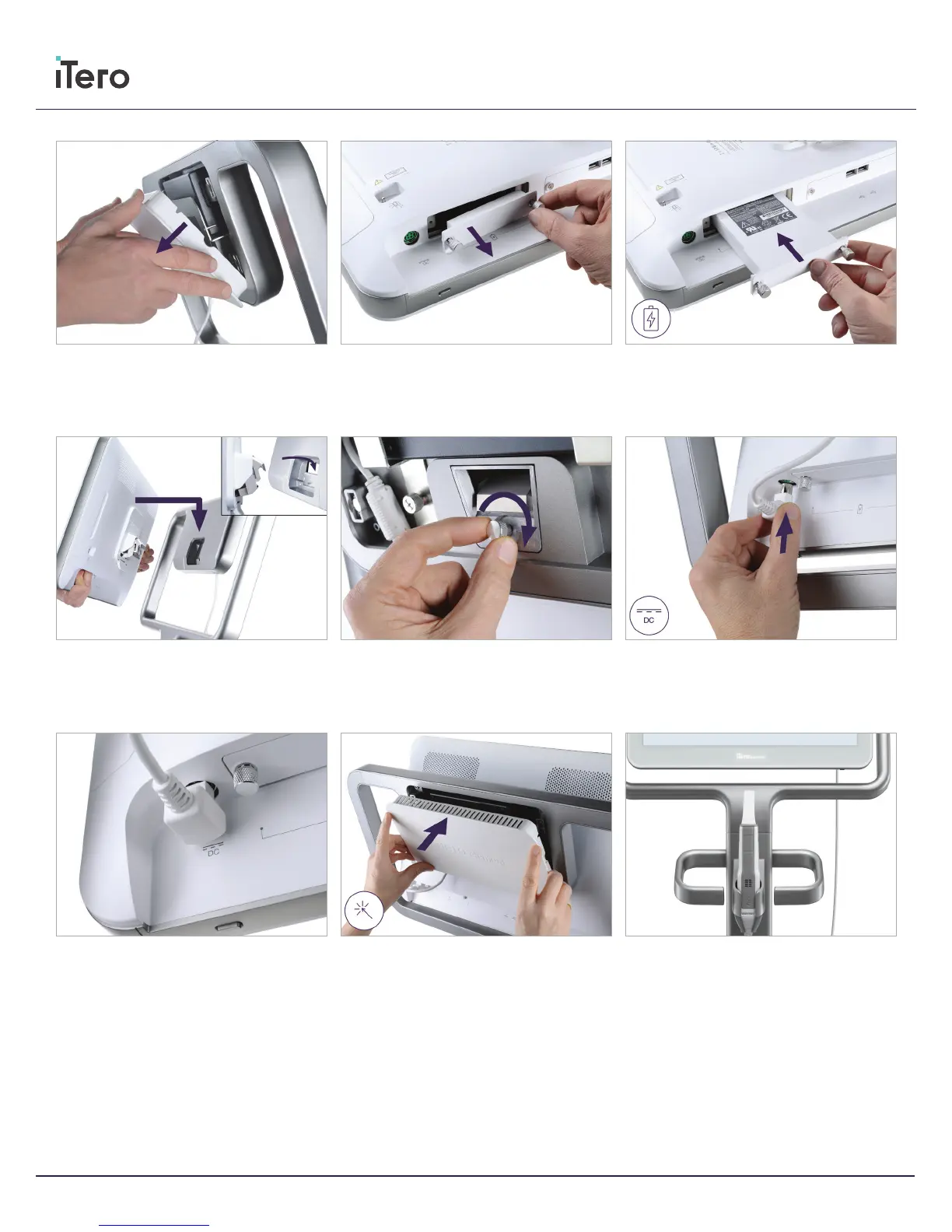

iTero Element 5D - Page 18

8
iTero Element 5D operation manual English
12.
Lift the HD screen to mount it
13.
Turn the scanner around and tighten the
thumb screw to secure the HD screen
14.
Attach the power cable to the port labled DC
15.
Power cable inserted
16.
Attach the magnetic back cover
11.
Slide the battery into the battery slot and
tighten the thumb screws
10.
Remove the battery cover
9.
Remove the magnetic cover from the back of
the wheel stand frame
17.
Place the wand into the cradle
