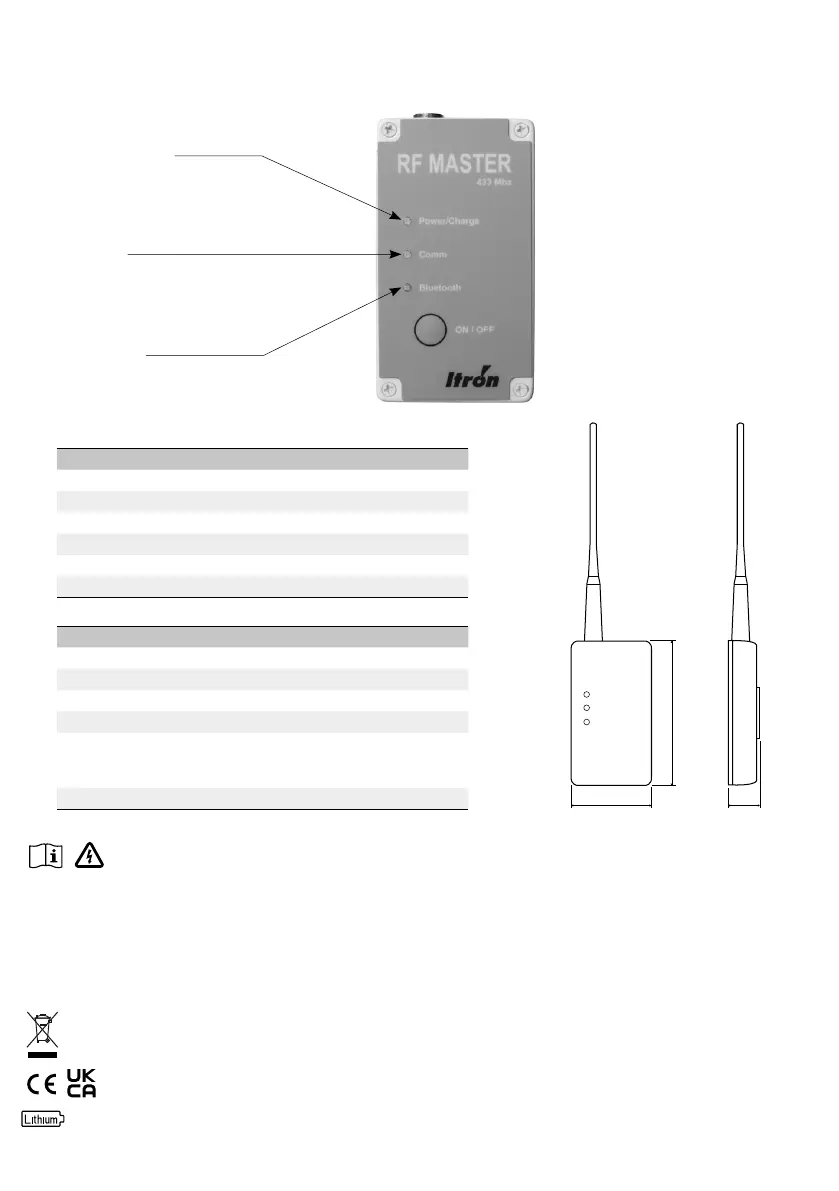

5 - LED understanding
Three LEDs are located on the RF Master front side, they provide constant information on the current operation condition and
the active communication connections.
• Power Charge
Green = completely charged
Blinking Green to Red = low power
Red= charging
• Comm
Blinking green: radio communication
activated –turns into orange every time
communication is established
• Bluetooth
Blinking blue: Bluetooth communication activated
6 - Characteristics Mechanical
Dimensions (mm)
Around (H) 112 x (L) 62 x (P) 38, without antenna and without plug
Weight 205 g
Case with belt clip provided
Protection level IP 54
Working temperature -10°C to 55°C
Storage temperature -20°C to 70°C
Electrical
Radio frequency 433.82 MHz
Modulation type FSK
Radio communication protocol RADIAN
Maximum radio power 10 dBm
Power supply Vdd = +5 V ± 10% regulated
(power supplied by 2 batteries
NiMH 1000 mA standard)
Communication protocol Bluetooth v. 2.1 + EDR
H
RF MASTER
ATTENTION
For products powered by batteries: risk of fire or explosion, if the original batteries are replaced by batteries of the wrong
type or size (examples: Alkaline> Lithium; AA (LR6)> AAA (LR03) );
Scrapping a battery by placing it in a fire or hot oven, or by mechanically crushing or cutting it open may cause an explosion;
Keeping a battery in a location with a very high temperature may cause an explosion or cause liquid or inflammable gases to leak;
Subjecting a battery to very low air pressure may cause an explosion or liquid or inflammable gases to leak.
SIGNAGE
Used electric devices and their batteries must not be disposed of with normal household waste. We take all our products back
after use, free of charge, and dispose of them accordingly.
Product compliant with the essential requirements of the directive(s) applicable to the product in question. The product
has undergone a suitable assessment process.
The product contains a lithium battery.
