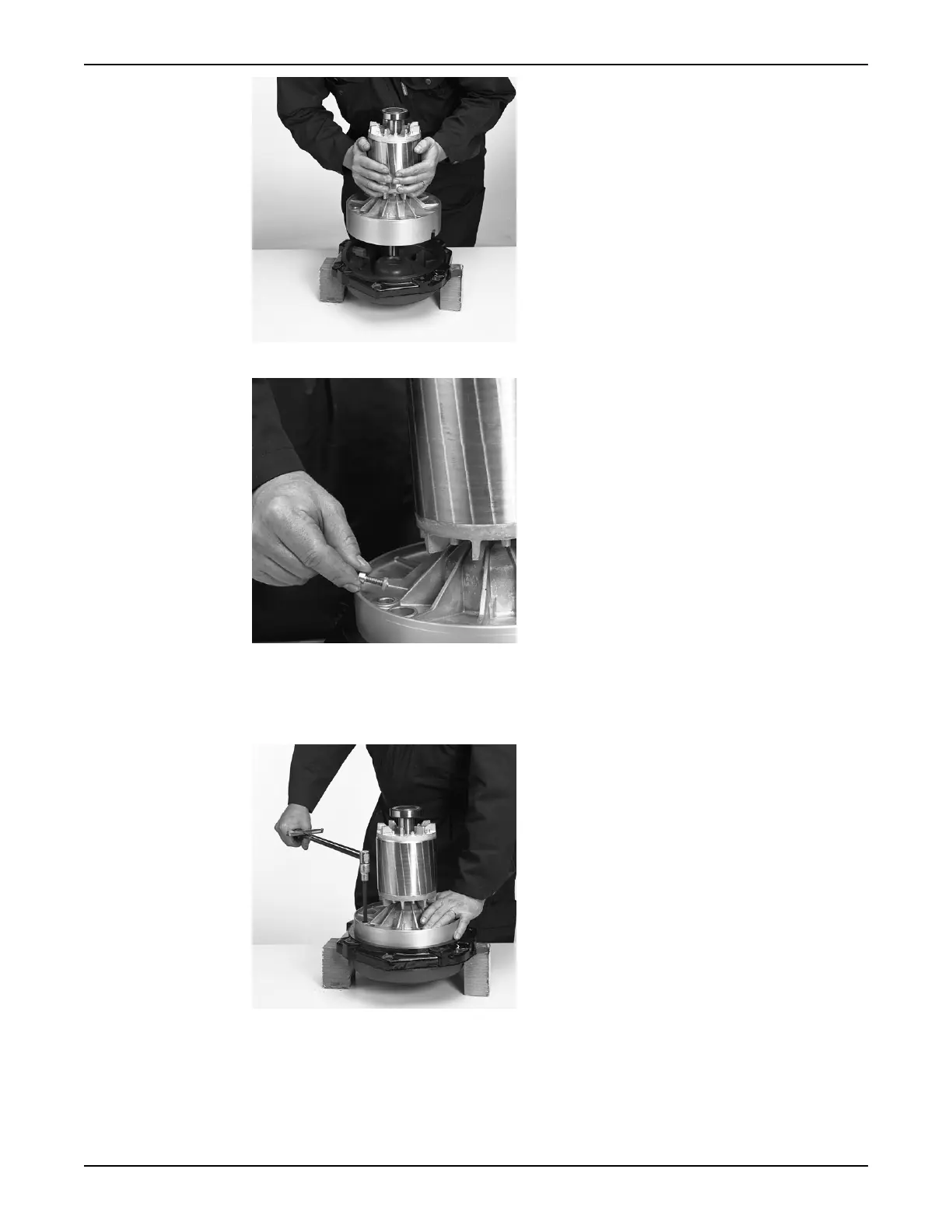

2. Replace the old sealing washers with new ones.
3. Fit the 3 self-tapping screws.
Tightening torque: 7 Nm (5 ft-lbs.)
If you have bought an oil housing as a spare part, there will not be any threads in the 3 holes for the
screws (self-tapping screws).
Install the outer mechanical seal: Griploc
Use the instructions in Install the inner mechanical seal: Griploc (page 32) to install the outer mechanical seal.
Install the motor cable in the stator housing
1. Pull the cable into the junction box.
Maintenance (Continued)
Flygt 3102 Service and Repair Instructions 35

ITT Flygt 3102 Specifications

General

Type	Submersible Pump
Motor Power	1.5 kW
Impeller Type	Vortex
Frequency	50 Hz
Application	Wastewater, sewage
Outlet Size	50 mm
Voltage	400 V
