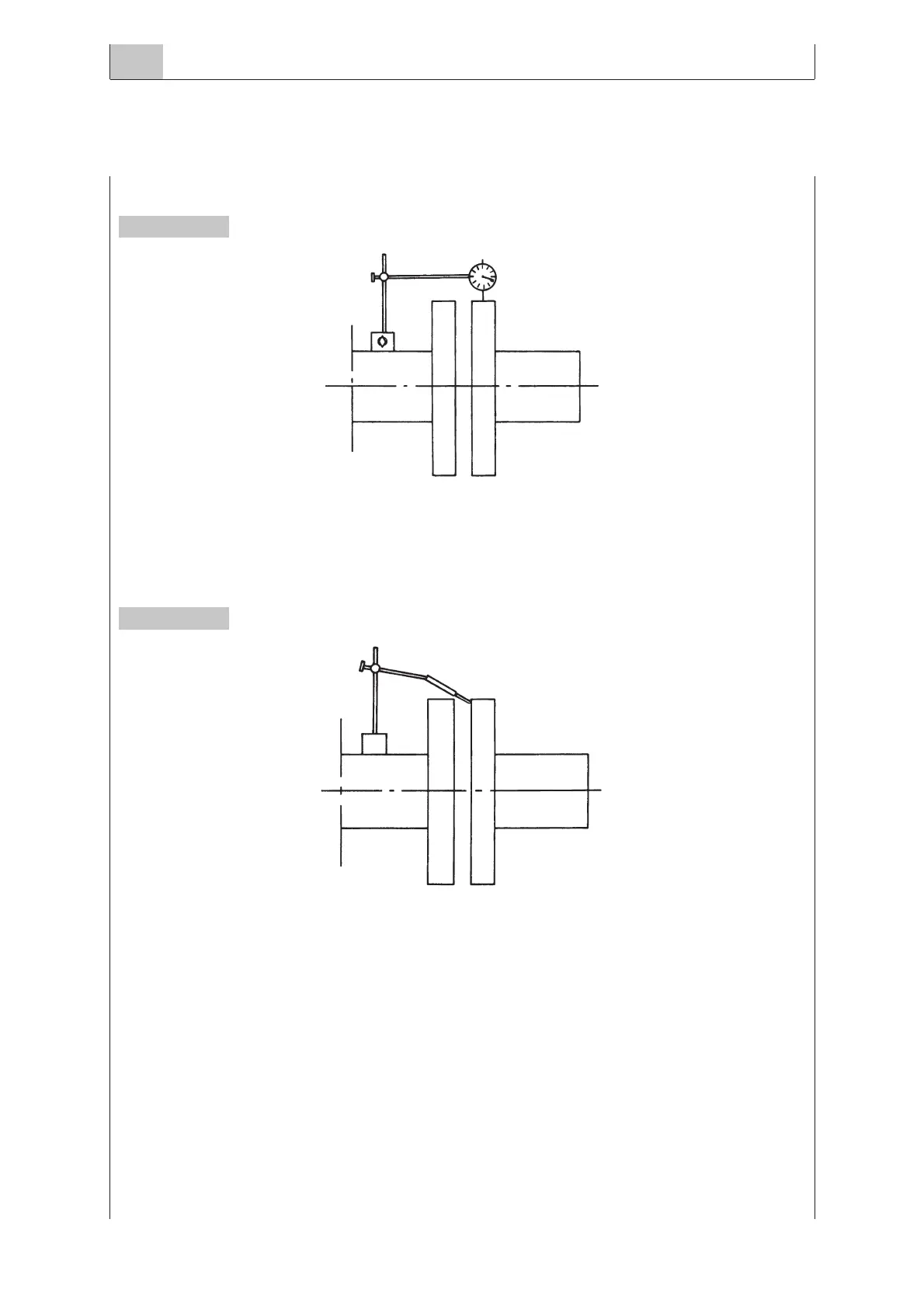

Check of concentricity
To check concentricity, use a dial gauge fastened on inverter flange with the feeling pin in contact with
the flange of the axis line as illustrated in the figure.
Check of parallelism
To check parallelism, use a dial gauge fastened on inverter flange with the feeling pin in contact with the
flange of the axis line as illustrated in the figure.
To carry out alignment operate the engine supports. At the end of alignment, check that the fastening
screws and bolts are well tightened.
NOTE
For particular installations (e.g. the astern foot, etc.) follow the indications of the specific publications of the
manufacturer.
You are reminded that the shipyard has the whole responsibility for the alignment operations; any
IVECO responsibility is excluded.
MARCH 2004 ENGINE INSTALLATION
4.58
MARINE ENGINES INSTALLATION
Figure 6
Figure 7
