Iveco VECTOR 8

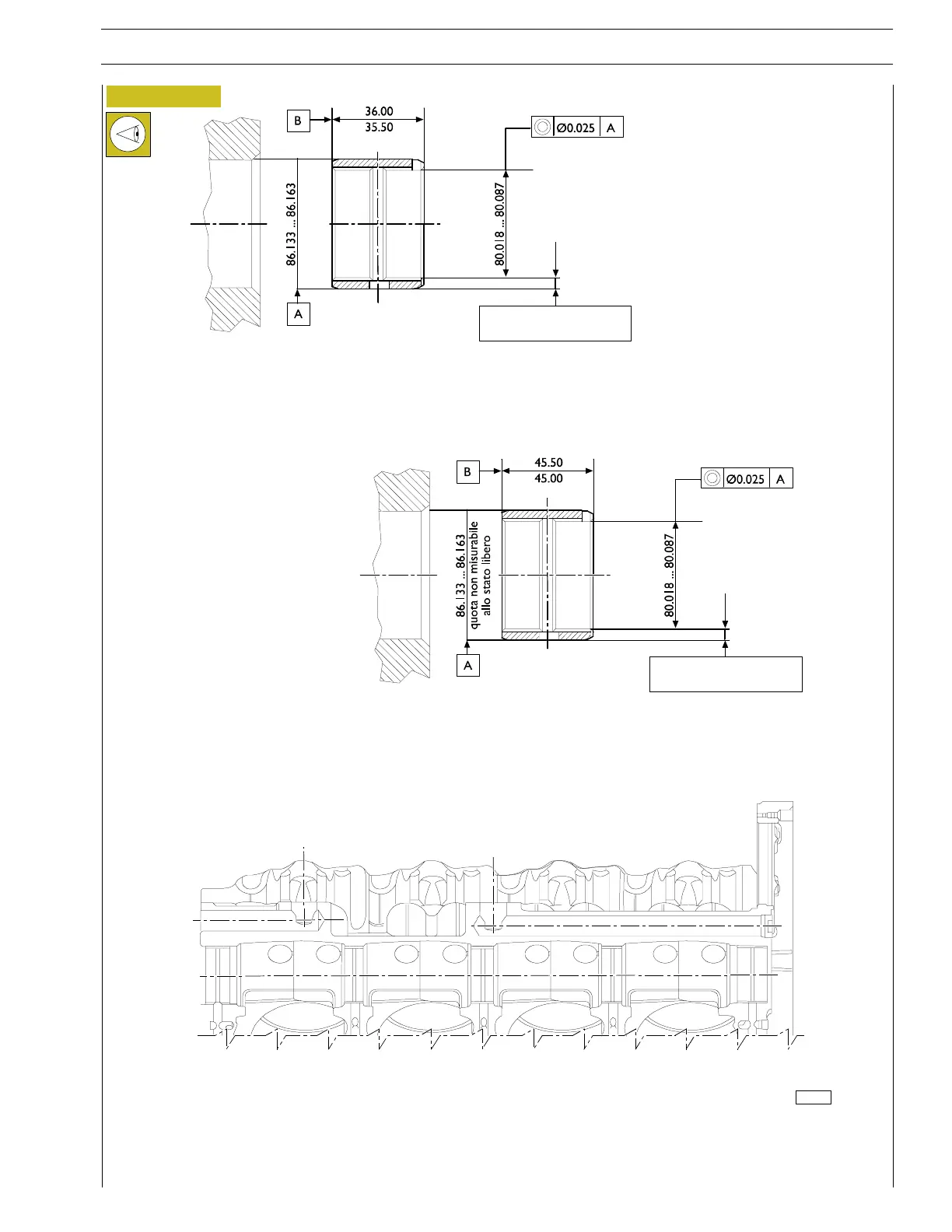

MAIN DATA OF THE BUSHINGS SUPPORTING THE CAMSHAFT AND SEATS IN THE CRANKCASE.
The bushings must have been forced into their seats. The internal surfaces must be smooth with no sign of seizure or wear.
SEAT Ø 86.000 ÷ 86.030
PIN Ø 79.950 ÷ 79.968
Thickness variation
max 0.025 mm
Heigth to be
obteined after
driving the bushes
Heigth to be
obteined after
driving the bushes
Thickness variation
max 0.025 mm
SEAT Ø 86.000 ÷ 86.030
PIN Ø 79.950 ÷ 79.968
82233
Figure 18
SECTION 4 - OVERHAUL AND TECHNICAL SPECIFICATIONS 15
VECTOR 8 ENGINES
Print P2D32V001E Base - April 2006
