Iveco VECTOR 8

Figure 9

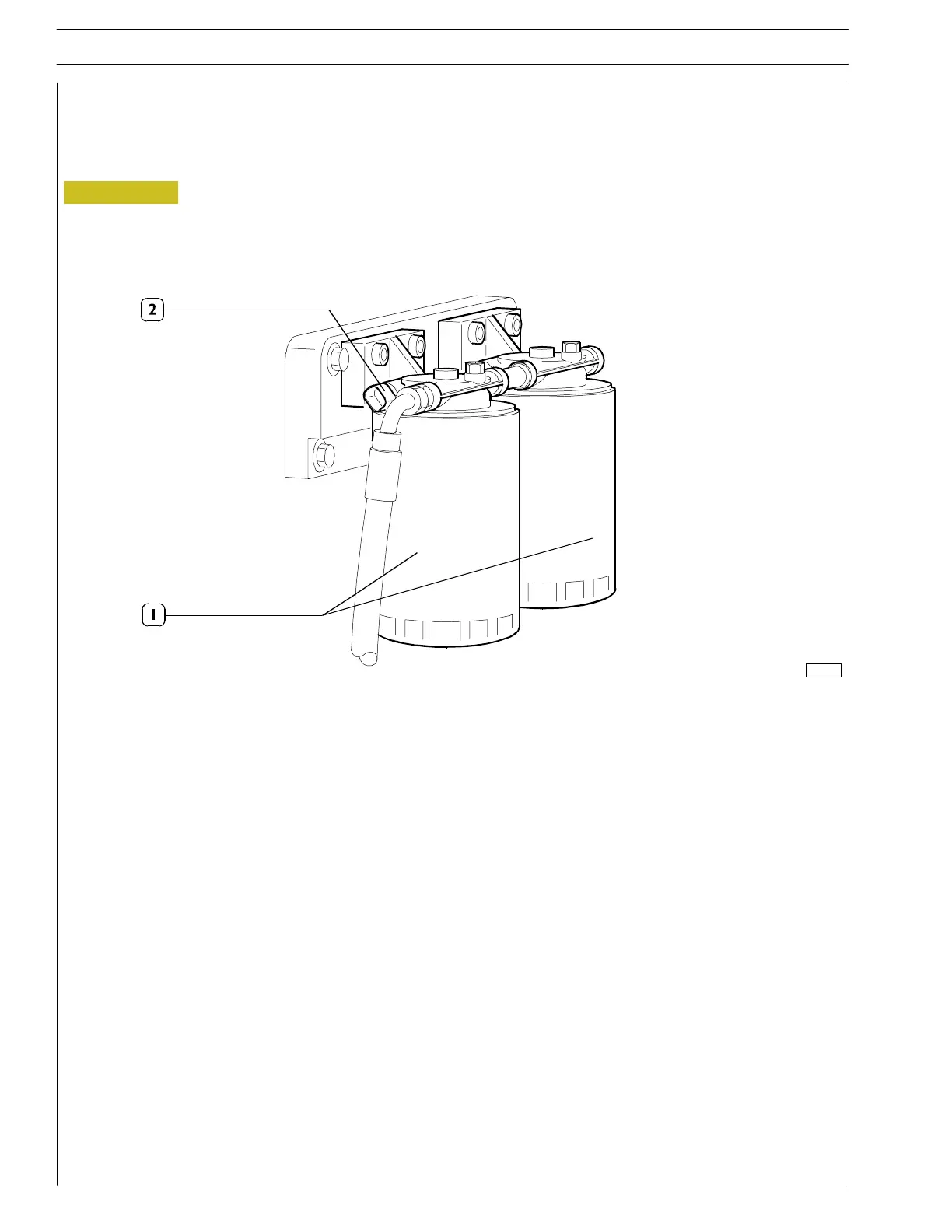

The fuel filters (1) are located in the circuit between the low pressure pump and the high pressure pump.
The bleed screws and th e filter blockage sensor (2) are locat ed on the mounting.
1. Filter cartridges — 2. Filter blockage sensor
83422
Fuel filters for DRAGON and GRIFFON applications
12
SECTION 2 - FUEL
VECTOR 8 ENGINES
Base - April 2006 Print P2D32V001E
