Figure 43
Figure 44
- Rotate the crankshaft fowards until a lifting height of 5.48
mm is reached.
- The camshaft is timed if the reference mark made
previously on the crankshaft is aligned with the reference
on the cylinder block/crankcase.
If the above condition is n ot achieved, the camshaft should be
adjusted using the openings in the toothed wheel.
See timing diagrams overleaf.
82243
82244

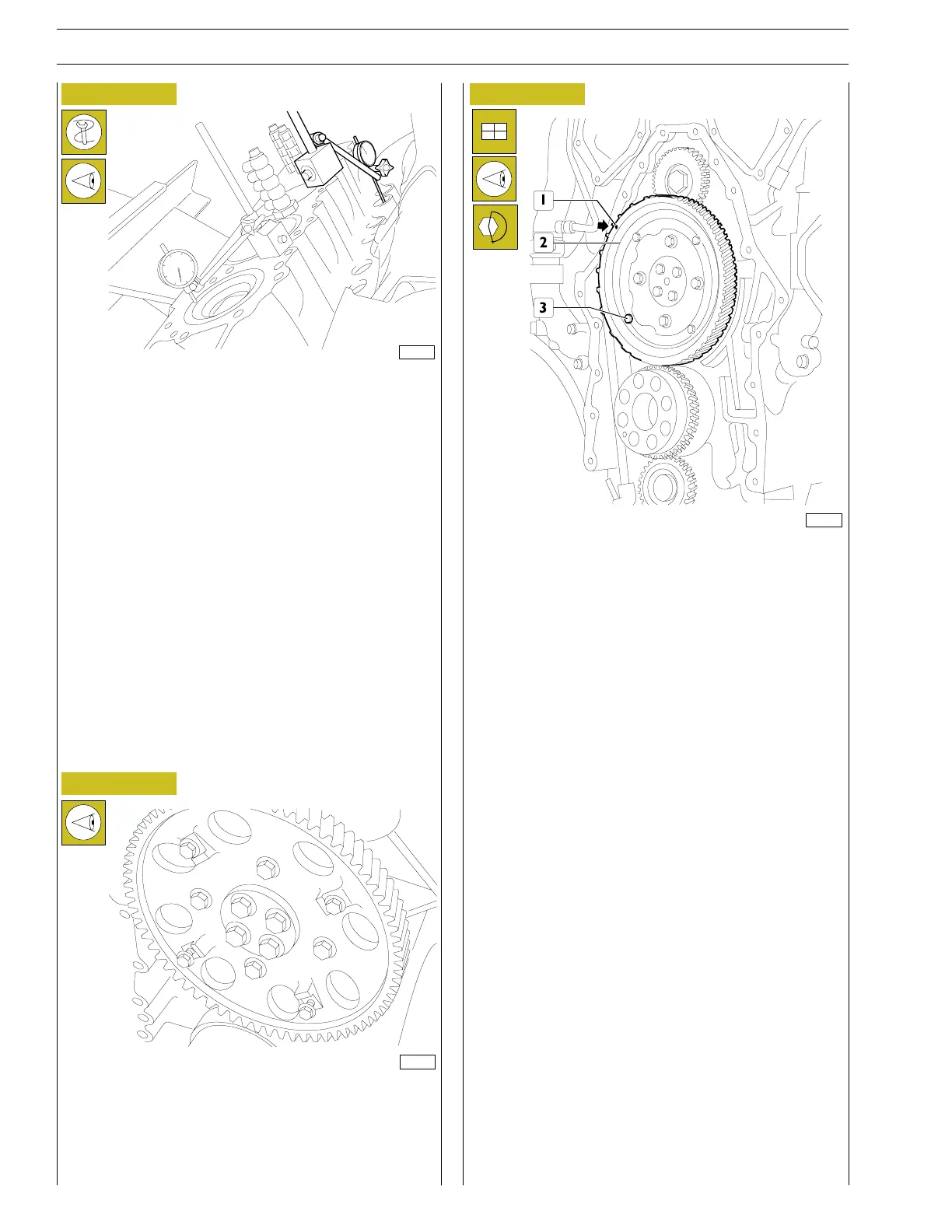

Figure 45
113063
Fit the flywheel (2) taking care to ensure that the reference
markt (1) is aligned with the position of the camshaft rpm
sensor (see timing diagrams on the pages that follow).
Tighten the bolts (3) to the rec ommended torque.
24
SECTION 4 - OVERHAUL AND TECHNICAL SPECIFICATIONS
VECTOR 8 ENGINES
Base - April 2006 Print P2D32V001E
