Iveco VECTOR 8

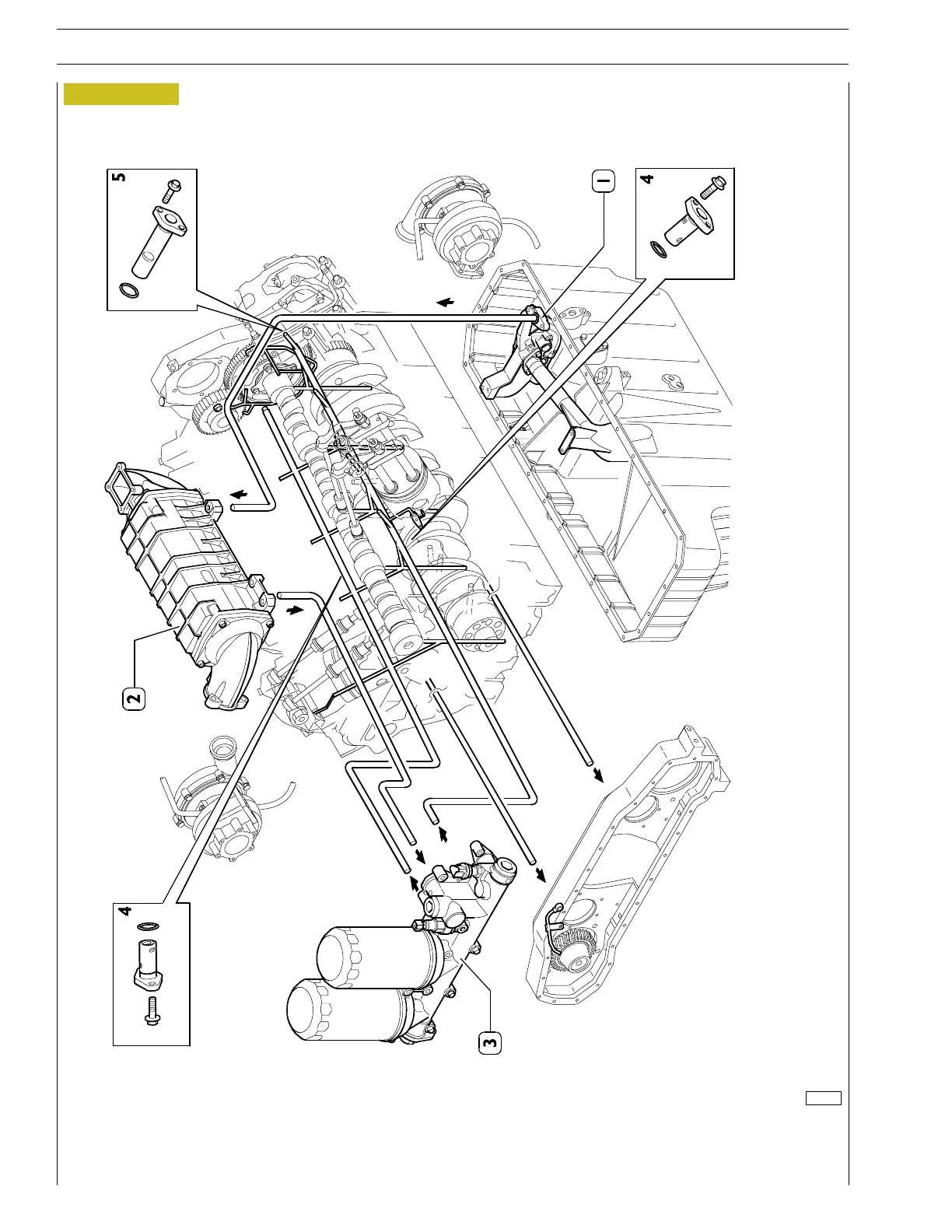

Figure 3
1. Oil pump - 2. Water/oil heat exchange - 3. Oil filter support - 4. Relief pressure valve (piston cooler) -
5. Relief pressure valve (Engine oil pressure system).
103278
6
SECTION 1 - GENERAL SPECIFICATIONS
VECTOR 8 ENGINES
Base - April 2006 Print P2D32V001E
