Iveco VECTOR 8 User Manual

Figure 4
103513

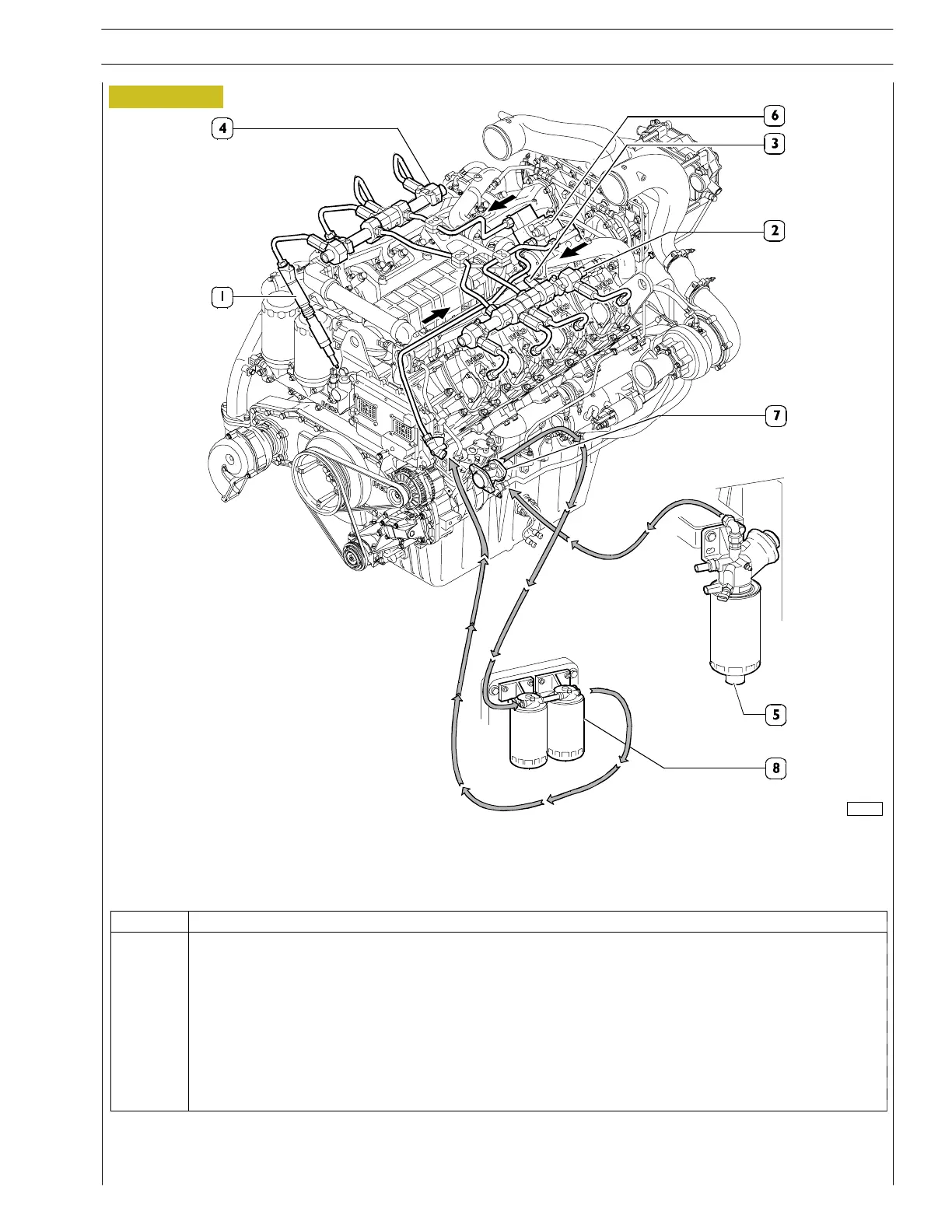

DIAGRAM SHOWING PIPES FOR DRAGON / GRIFFON APPLICATIONS
SECTION 2 - FUEL
7
VECTOR 8 ENGINES
Print P2D32V001E Base - April 2006
Rif. Description
1 Injector
2 Common rail pressure relief valve
3 Pressure sensor
4 Common rail
5 Diesel pre-filter
6 High pressure pump
7 Low pressure pump
8 Fuel filters (depen ding on the application)
