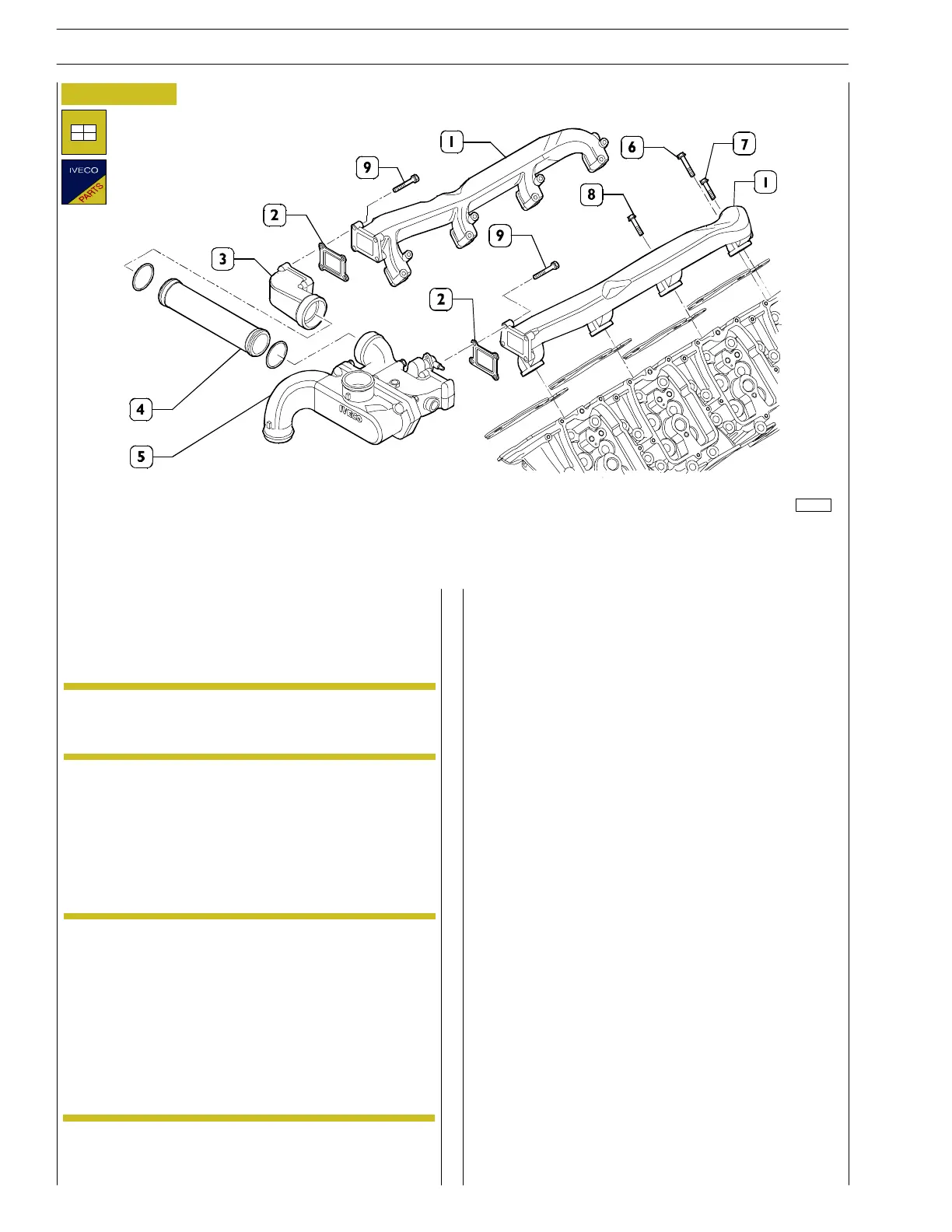

Figure 73
- Fit the head water outlet pipes (1).
- Fit th e seals (2), fit the elbow (3), th e connect ing pipes
(4) and O-rings and the thermostat casing (5).
The new h ead—side gaskets have already been fitted
together with the air intake manifolds.
- Tighten all the screws to a torque of 22—27 Nm.
To facilitate assembly, here we describe how to use
the water pipe fixing screw s correctly.
6. M8x1.25x75 mm
7. M8x65 mm
8. M8x1.25x60 mm
9. M8x20 mm
10. M8x30 mm
103472
NOTE
NOTE
34
SECTION 3 - INDUSTRIAL APPLICATION
VECTOR 8 ENGINES
Base - April 2006 Print P2D32V001E
