5.4 Program structure
The Programat CS4 basically offers two types of
programs:
a) Standard program for materials of the
Ivoclar Vivadent group (see enclosed
Program Table)
e.g. IPS e.max ZirCAD, IPS e.max CAD
b) Free programs
All the free programs are equal and available
as full-fledged programs. All the parameters
can be individually set in each program.
When the furnace is delivered ex
factory, the standard programs already
contain the recommended material
parameter settings.
The programs have been designed in such a
way that 2 predrying stages, 3 heating stages,
2 cooling stages, and 1 opening time can be set.
In case one of these stages is not
required, the time must be set to
00:00.
The predrying time includes the time of
the heating phase and is no holding
time.
5.5 Settable parameters and possible value ranges
* If the holding temperatures T2 and T3 are lower than 900 °C or 1652 °F , the maximum temperatures for the
temperature increase rates t2 and t3 are 130 °C/min or 234 °F/min.
Automatic plausibility check of the parameters
The Programat CS4 is equipped with an automatic plausibility check function.
The parameters are checked upon each program start.
In case of contradictory parameter combinations, the program stops automatically and
the respective error number is indicated.
Value range °C Value range °F
Symbol Parameters min. max. Unit min. max. Unit
v1
Predrying stage 1
Predrying temperature 0/100 300 °C 0/212 572 °F
V1 Predrying time 00:00 00:20 hh:mm 00:00 00:20 hh:mm
v2
Predrying stage 2
Predrying temperature 0/100 300 °C 0/212 572 °F
V2 Predrying time 00:00 00:20 hh:mm 00:00 00:20 hh:mm
S Closing time Closing time 00:00 01:00 hh:mm 00:00 01:00 hh:mm
t1
Heating stage 1
Temperature increase
rate
10 130 °C/min 18 234 °F/min
T1 Holding temperature 300 900 °C 572 1652 °F
H1 Holding time 00:00 01:00 hh:mm 00:00 01:00 hh:mm
t2
Heating stage 2
Temperature increase
rate
10 50* °C/min 18 90* °F/min
T2 Holding temperature 0/300 1500 °C 0/572 2732 °F
H2 Holding time 00:00 01:00 hh:mm 00:00 01:00 hh:mm
t3
Heating stage 3
Temperature increase
rate
10 15* °C/min 18 27* °F/min
T3 Holding temperature 0/300 1600 °C 0/572 2912 °F
H3 Holding time 00:00 01:00 hh:mm 00:00 01:00 hh:mm
t4
Cooling stage 1
Temperature increase
rate
10 70 °C/min 18 126 °F/min
T4 Holding temperature 100 1200 °C 212 2192 °F
H4 Holding time 00:00 01:00 hh:mm 00:00 01:00 hh:mm
t5
Cooling stage 2
Temperature increase
rate
10 50 °C/min 18 90 °F/min
T5 Holding temperature 0/100 1100 °C 0/212 2012 °F
H5 Holding time 00:00 01:00 hh:mm 00:00 01:00 hh:mm
O Opening time Opening time 00:01 05:00 hh:mm 00:01 05:00 hh:mm

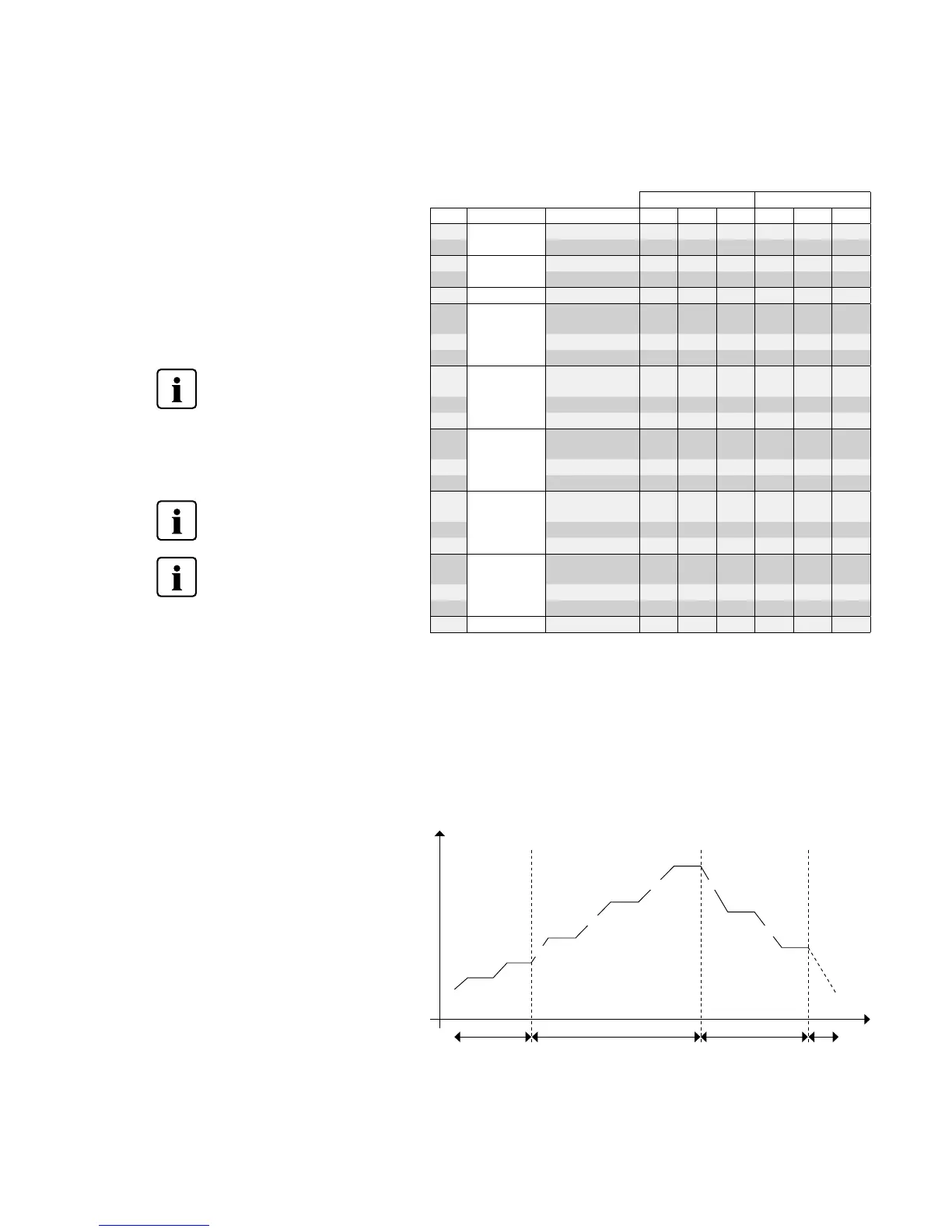

Graphic overview of the program parameters
Predrying Heating Cooling Opening
V1
v1
v2
H1
H2
T2
T3
T4
T5
H3
H4
H5
T1
t1
t2
t3
t4
t5
V2
