IVT AE-X12GR-N - Electrical Parts; Wiring Diagrm

AEX12GRN
1 – 3

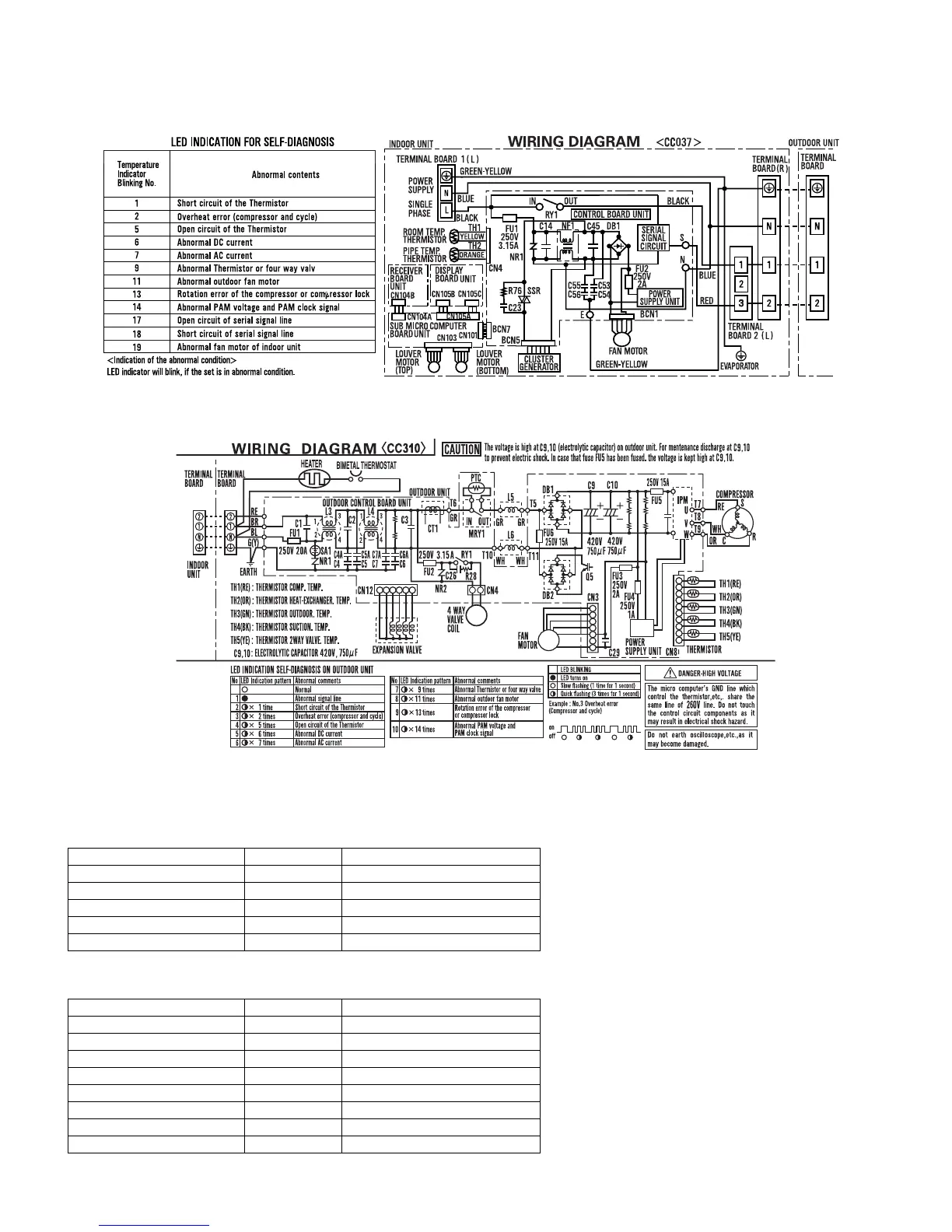

[3] WIRING DIAGRM
1. Indoor unit
2. Outdoor unit
[4] ELECTRICAL PARTS
1. Indoor unit
2. Outdoor Unit
DESCRIPTION MODEL REMARKS
Indoor fan motor MLB084 DC Motor
Indoor fan motor capacitor – –
Transformer – –
FUSE1 – QFS-GA062JBZZ (250V, 3.15A)
FUSE2 – QFS-GA063JBZZ (250V, 2A)
DESCRIPTION MODEL REMARKS
Compressor DA111A1F22F D.C. brush-less motor
Outdoor fan motor ML-A902 DC Motor
Outdoor fan motor capacitor – –
Fu4 – QFS-GA064JBZZ(250V, 1A)
Fu3 – QFS-GA051JBZZ(250V, 2A)
Fu2 – QFS-GA052JBZZ(250V, 3.15A)
Fu1 – QFS-CA001JBZZ(250V, 20A)
Fu5, 6 – QFS-CA002JBZZ(250V, 15A)
