10

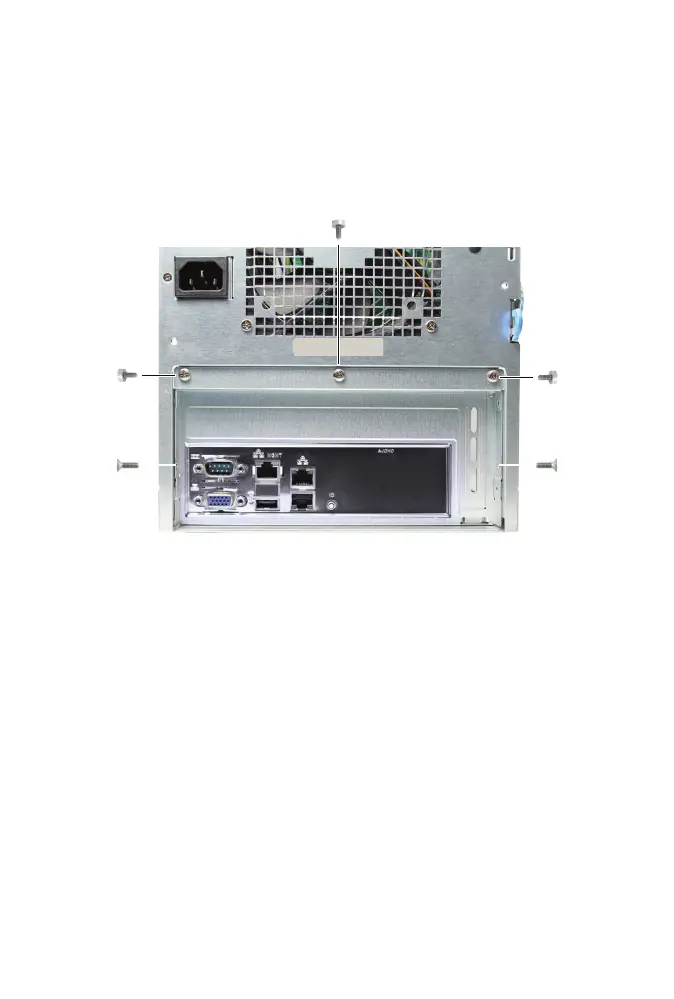

MOTHERBOARD TRAY REMOVAL
Remove the three motherboard tray back panel screws and the two inside
edge screws.
4 5
1
3
2
