3. Power and CAN Connectors
At the left and right side of the housing are screw connectors for the power
supply and CAN line. The pinning of these connectors is as shown in figure 3-1.
1: +9 - 35 V DC
2: GND
Power supply
First CAN line
6: CAN High
7: CAN Low
8: GND
Second CAN line
3: CAN High
4: CAN Low
5: GND

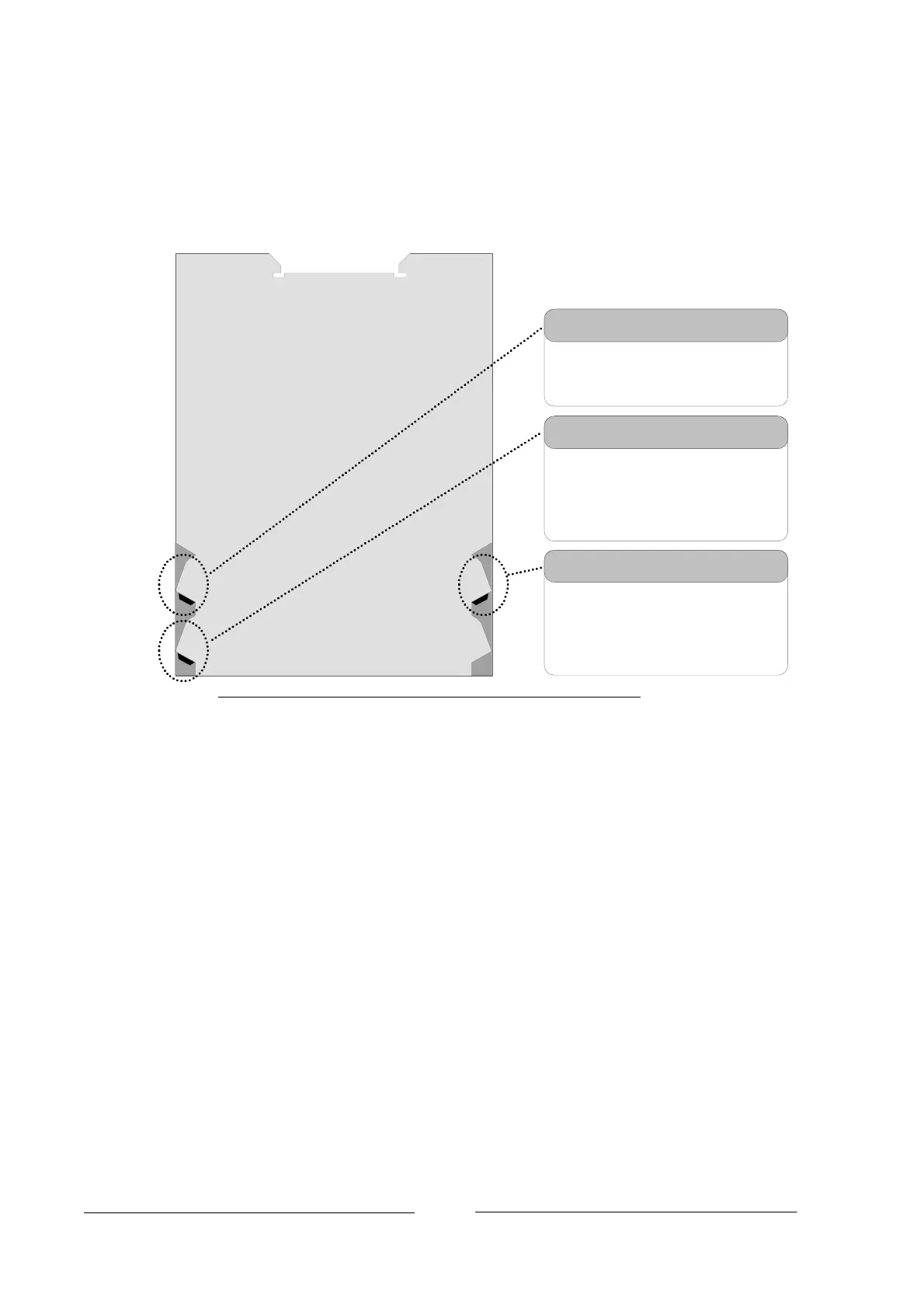

figure 3-1: Terminal allocation.
