Jabra Noise Guide - Software Navigation and Analysis; Graph Interpretation

NOISE GUIDE – MANUAL RETURN TO "TABLE OF CONTENTS"
21
NAVIGATING THE SOFTWARE

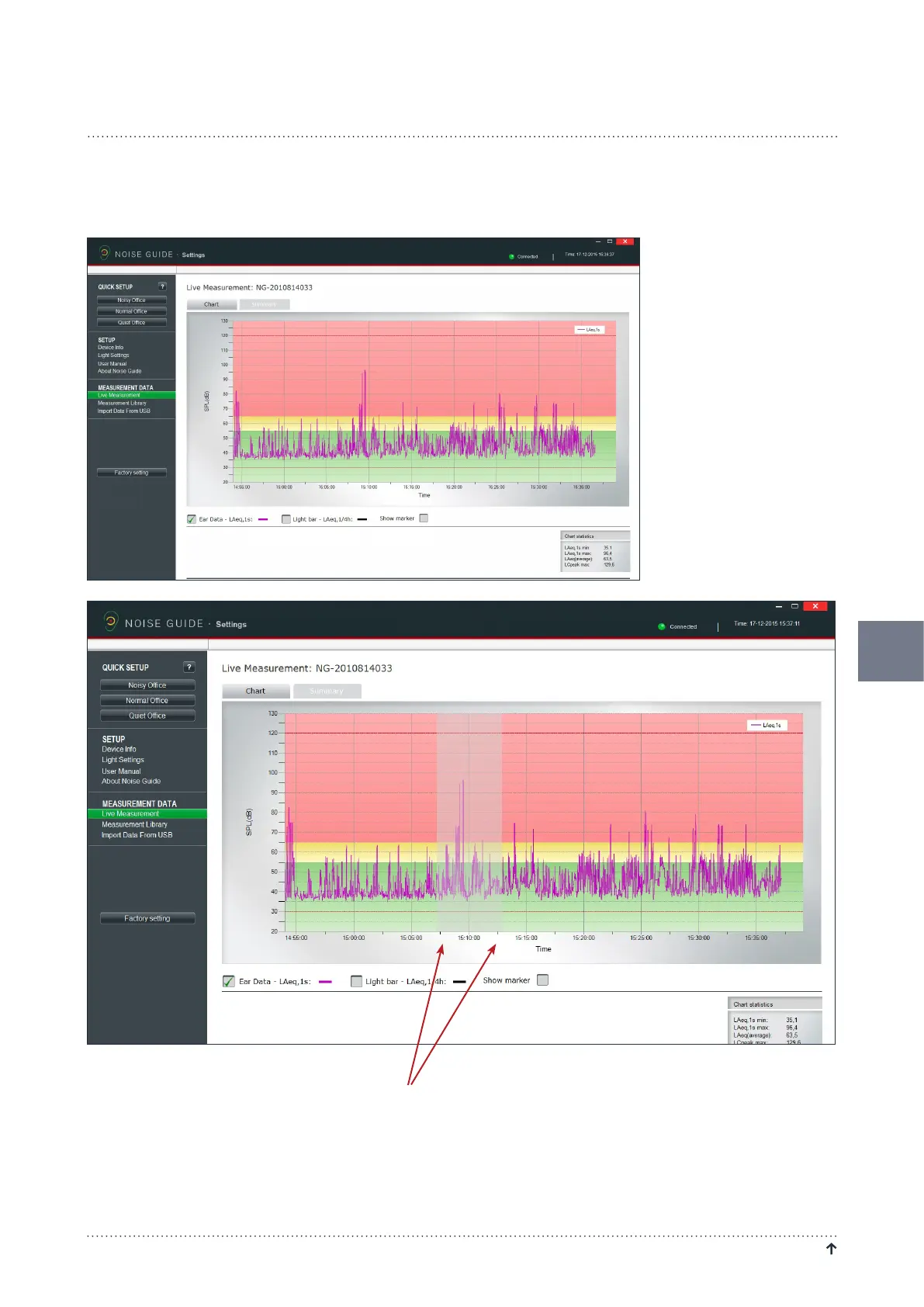

ZOOM FUNCTION
Wheneverdataisshownonthegraph,itispossibletozoomintolookmorecloselyonaspecificarea.
1.Currentmeasurement.
How to zoom in:
2. Positionyourcursoranywhereonthegraph.
3. Left-clickandusethecursortopullagreyarea,pullingtowardstheright.
4. Release the cursor when the wanted area is selected.
5. Viewthemagnifiedarea.
