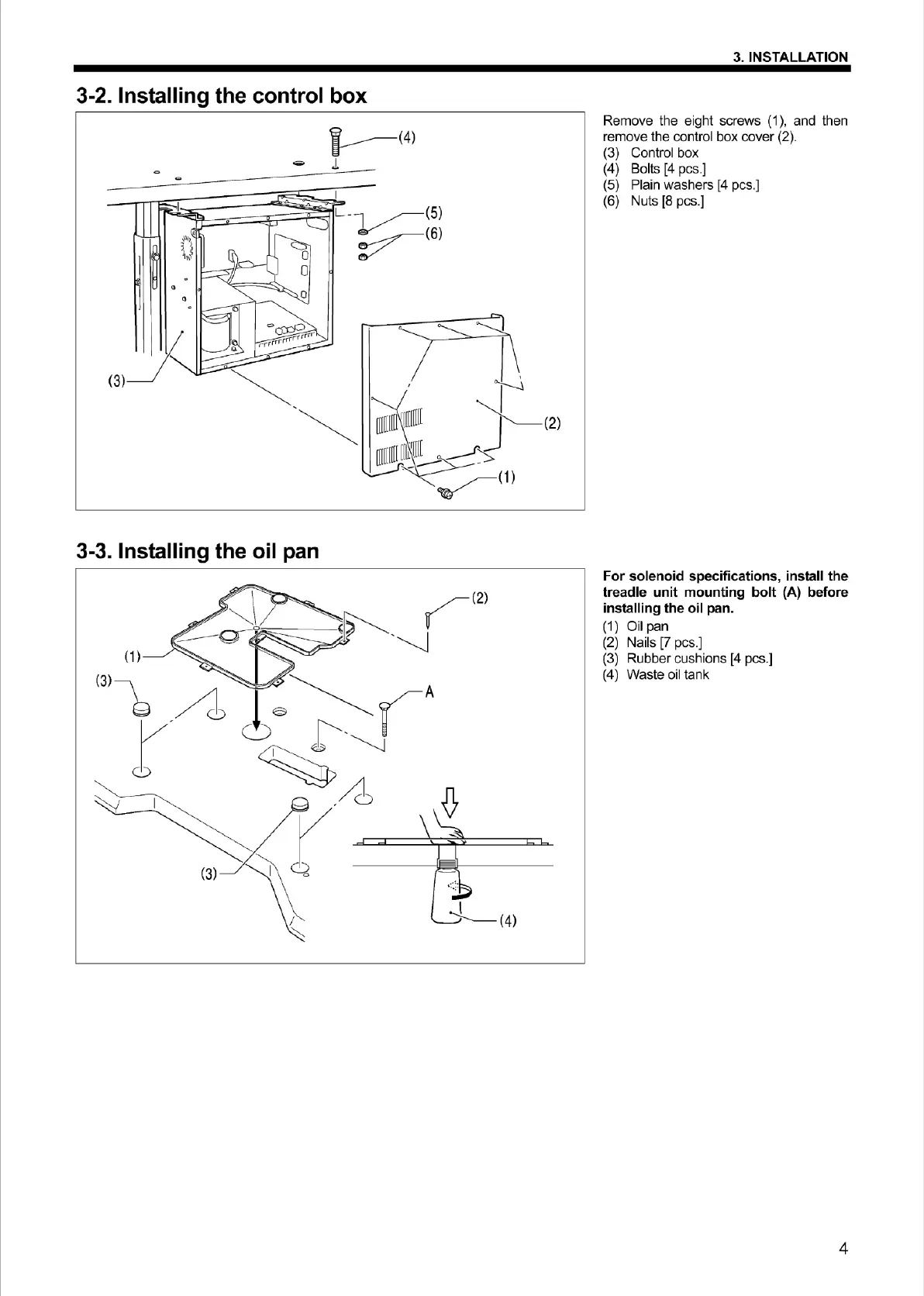

3-2. Installing the control box
J---(4)
= .!.
3-3. Installing the oil pan
L -~(5)
~( 6)
n
, I
OOilfil ~ 1-(2 1
:-s:
(1)
3. INSTALLATION
Remove the eight screws (1 ), and th en
r
emove the control box cover (2).
(3) Con trol box
(4) Bolts (4 pcs.]
(5) Plain
was h ers (4 pcs .]
(6) Nuts (8
pcs .)
For solenoid specifications, install the
treadle unit mounting bolt (A) before
installing the oil pan.
(1) Oi l pan
(2) Nails
(7 pcs.)
(3) Rubber cushions
(4 pcs.]
(4) Waste oil tank
4
