ES-2000 & ES-4000 Series Installation/Operation Manual 7610-011-35-10
Issued: 10-29-2007 Revised: N/A
SECTION 6: PARTS SECTION

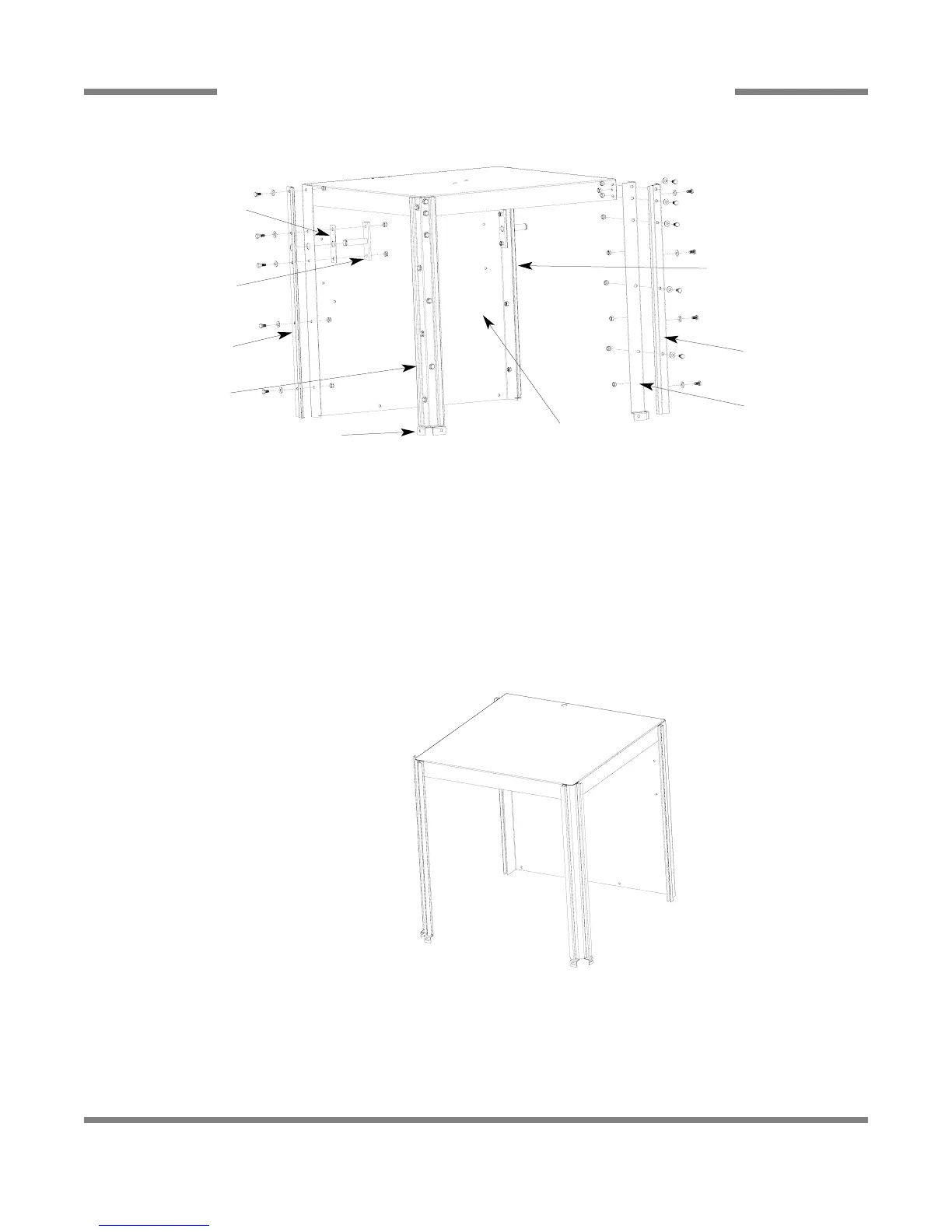

HOOD ASSEMBLIES ES-2000
47
ITEM QTY DESCRIPTION ECOLAB No. Mfg. No.
1 1 Hood Weldment (ES-2000) 96581962 05700-031-37-57
1 1 Hood Weldment (ES-2000 27”) N/A 05700-031-42-44
1 1 Hood Weldment (ES-2000XSP) N/A 05700-002-72-56
1 1 Hood Weldment (ES-2000XSP-PH) N/A 05700-031-62-84
2 1 Double Door Guide, Right Front (ES-2000, XSP, PH) 96550173 05700-021-33-19
2 1 Double Door Guide, Right Front (ES-2000 27”) N/A 05700-031-42-50
3 1 Double Door Guide, Left Front (ES-2000, XSP, PH) 96550181 05700-021-33-20
3 1 Double Door Guide, Left Front (ES-2000 27”) N/A 05700-031-42-49
4 1 Hood Support, Left Front (ES-2000, XSP, PH) 96580444 05700-021-33-18
4 1 Hood Support, Left Front (ES-2000 27”) N/A 05700-031-42-51
5 1 Hood Support, Right Front (ES-2000, XSP, PH) 96550330 05700-021-33-17
5 1 Hood Support, Right Front (ES-2000 27”) N/A 05700-031-42-52
Arm Support Weldment
Ecolab No.: 96582804
Mfg. No.: 05700-011-43-52
4
5
2
Door Guide, Left Rear
Ecolab No.: 96550264
Mfg. No.: 05700-021-33-16
Door Guide, Right Rear
Ecolab No.: 96550272
Mfg. No.: 05700-021-33-15
3
Arm Support Weldment Gasket
Ecolab No.: 965053151
Mfg. No.: 05700-111-36-01
ITEM QTY DESCRIPTION ECOLAB No. Mfg. No.
1 1 Hood, Single Piece Weldment (ES-2000) N/A 05700-002-60-51
1 1 Hood, Single Piece Weldment (ES-2000 27”) N/A 05700-002-83-09
1 1 Hood, Single Piece Weldment (ES-2000-V) N/A 05700-002-65-39
1 1 Hood, Single Piece Weldment (ES-2000XSP) N/A 05700-002-60-56
2 Hood Support N/A 05700-003-04-71
4 Hood Block Spacer 96628102 05700-002-81-02
1
Hood support repair kit.
Ecolab No.: 96041520
Mfg. No.: N/A
To Next Page
