ES-2000 & ES-4000 Series Installation/Operation Manual 7610-011-35-10
Issued: 10-29-2007 Revised: N/A
SECTION 6: PARTS SECTION
TUB ASSEMBLY ES-2000
56
See page entitled
“Pump & Motor
Assembly”
23
234
5, 1
See page entitled
“Wash Manifold Assembly”
7
8
9
10
12
24*
13
14, 6*
19
15
18*
21
22
17*
16
1511
20
15

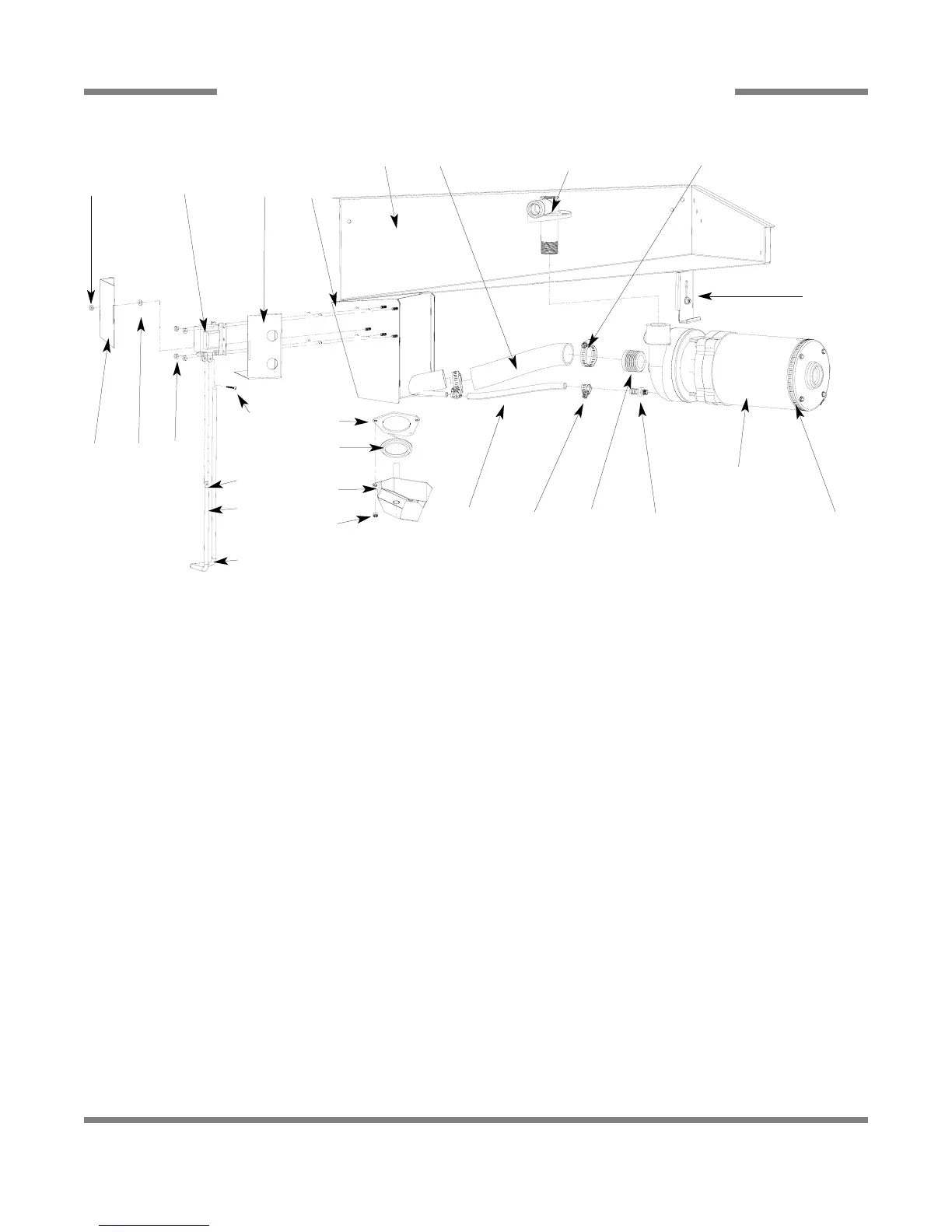

NOTE: THIS DRAWING SHOWS A CUTAWAY
VIEW OF THE ES-2000 TUB.
ITEM QTY DESCRIPTION ECOLAB No. Mfg. No.
1 2 Locknut, 1/4”-20 with Nylon Insert 88429113 05310-374-01-00
2 1 Fitting, 3/8” Barbed x 1/8” Male NPT 85196004 04730-111-35-02
3 2 Hose Clamp, Mini, 7/16” - 25/32” 87301131 04730-011-36-05
4 1 Hose, Clear PVC, 3/8” ID x 5/8” OD, 8” Long 96550439 05700-111-33-53
5 1 Pump Support Bracket Assembly 96042775 05700-021-66-48
6 1 Solenoid Stop (Not shown) 96570189 05700-000-66-40
7 1 Wash Tub Weldment, ES-2000 96580436 05700-041-36-75
7 1 Wash Tub Weldment, S-2000-HH N/A 06401-241-36-75
7 1 Wash Tub Weldment, ES-2000XSP-PH N/A 05700-002-50-75
7 1 Wash Tub Weldment, ES-2000 27” 96026067 05700-041-42-39
8 1 Pump Inlet Nipple 96580923 05700-021-33-50
9 2 Hose Clamp, 1-5/16” - 2-1/4” 87301362 04730-719-01-37
10 1 Hose, Clear Reinforced PVC, 8” Long 96583018 05700-111-33-52
11 1 Washer, 1/4”-20 ID, Flat 88530589 05311-174-01-00
12 1 Drain Solenoid Box 96581954 05700-021-37-53
13 1 Drain Solenoid Box Cover 96580634 05700-031-33-27
14 1 Drain Solenoid 83999078 04810-200-11-00
15 8 Locknut, 10-24 with Nylon Insert 88429063 05310-373-01-00
16 1 Hair Pin, 1/2” to 3/4” 96035241 05315-002-15-39
* 1 Drain Link Assembly N/A 05700-002-38-20
17 1 Nut, Hex, 5/16”-18 88422043 05310-275-01-00
18 1 Drain Link Connector 96028261 05700-002-38-10
19 1 Drain Solenoid Link 96582994 05700-031-34-45
20 1 Spillway Weldment 96583000 05700-031-37-86
21 1 Spillway Gasket 96582903 05700-111-34-52
22 1 Drain Seat Insert 96582929 05700-021-34-38
23 1 Clamp, 5 5/8” - 6” 87301503 04730-011-34-90
24 1 Thermometer, Screw-In Type (Not shown) 89009138 06685-111-35-30
To Next Page
