Jackson ECOLAB ES-4000CDL User Manual

ES-2000 & ES-4000 Series Installation/Operation Manual 7610-011-35-10
Issued: 10-29-2007 Revised: N/A
SECTION 6: PARTS SECTION

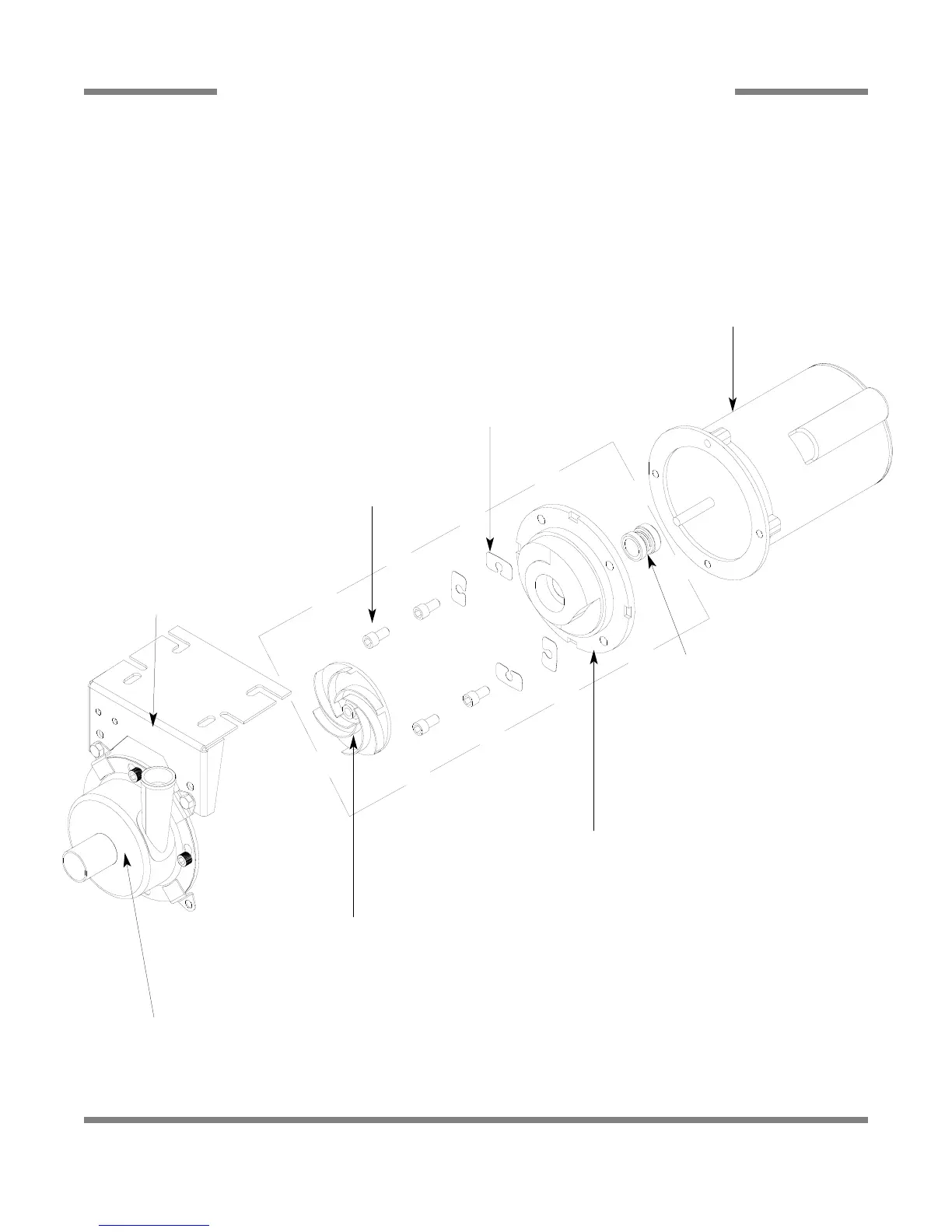

ES-2000-CS MOTOR & PUMP ASSEMBLY
65
Impeller Assembly
Ecolab No.: 96582103
Mfg. No.: 05700-002-81-86
Mechanical Seal
Ecolab No.: 96582026
Mfg. No.: 05330-002-34-22
Other parts not shown.
Drain Plug
Ecolab No.: 96582100
Mfg. No.: 04730-002-81-89
Case O-Ring
Ecolab No.: 96582105
Mfg. No.: 05330-002-81-83
Seal Plate
Ecolab No.: 96582104
Mfg. No.: 05700-002-81-87
Case Capscrew
Ecolab No.: 96582099
Mfg. No.: 05305-002-81-88
Motor Only
Ecolab No.: 96582070
Mfg. No.: 06105-002-79-61
Complete Pump & Motor Assembly
Ecolab No.: 96582025
Mfg. No.: 06105-002-16-29
Pump Only Assembly
(Includes items in dashed box and pump casing.)
Ecolab No.: 96582071
Mfg. No.: 05700-002-79-49
Shim Kit
Ecolab No.: 96582102
Mfg. No.: 05700-002-82-58
Motor Mounting Bracket
Ecolab No.: 96582190
Mfg. No.: 05700-002-55-52
Bolt, 3/8” x 3/4” Long Hex
Head
Ecolab No.: N/A
Mfg. No.: 05306-011-71-60
Lockwasher, 3/8”
Ecolab No.: 88521109
Mfg. No.: 05311-276-01-00
Nut, Hex 3/8”-16 S/S
Ecolab No.: 88422068
Mfg. No.: 05310-276-01-00
Pump Casing
Ecolab No.: N/A
Mfg. No.: 05700-002-84-99
