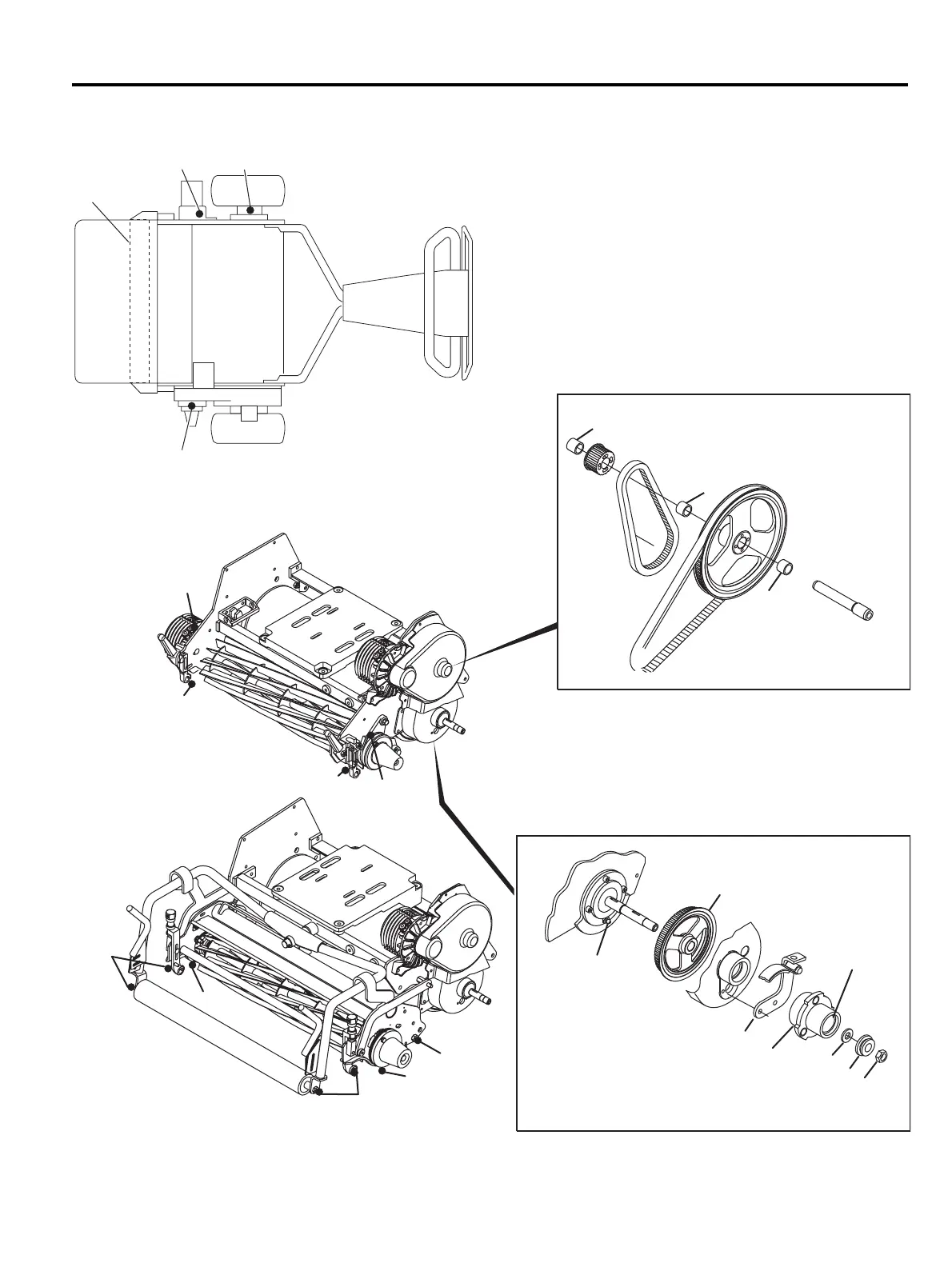

13.3 LUBRICATION CHART______________________________________________________
F
C
D
B
A
L
4
L
6
L
6
L
7
E
●
●
●
●
●
L
3
L
L
5
2
L
1
L
L
5
L
5
2
L
2
L
1
L
1
L
1
L
1
L
1
L1 - Reel Roller Bearing
L
2 - Reel Motor Bearing Housing
L
3 - Right Side Traction Drum Bearing Housing
L
4 - Left Side Traction Drum Bearing Housing
L
5 - Reel Bearing Housing
L
6 - Pulley Shaft Bearing
L
7 - Hub
Wheel Hub Assembly
Pulley Shaft Assembly
