Jacobsen AR-5 Maintenance Manual

85
> Change from previous revision
1
2
3
4
5
6
7
8
2
2
2
9
10
11
AR-522

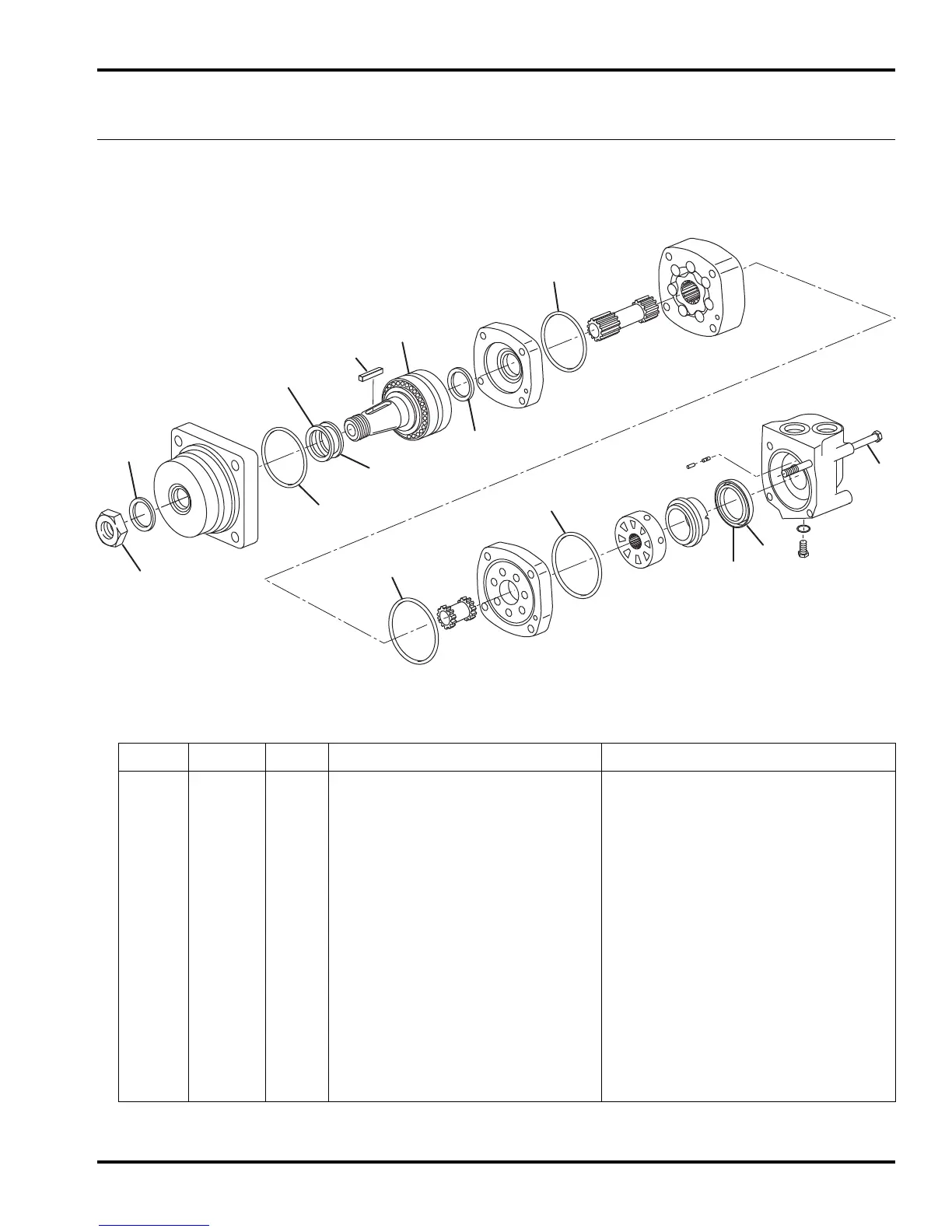

36.1 Rear Wheel Motor
Part Number 4118255
Serial No. All
Item Part No. Qty. Description Serial Numbers/Notes
1
A1Seal Exclusion
2 A 4 Seal, 3” I.D.
3 A 1 Back Up Ring
4 A 1 Shaft Seal
5 4134525 1 Shaft and Bearing Kit
6 554780 1 Key
7 554779 1 Hex Nut
8 A 1 Shaft Face Seal
9 A 1 Inner Face Seal
10 A 1 Outer Face Seal
11 4134526 4 Bolt
4134527 1 Seal Kit Includes Items Marked A
