30
2
17
2
4
5
6
7
8
10
12
20
24
25
26
26
20
20
19
19
19
11
14 / 15
17
13
3
11
1
18
9
21
27
27
21
21
13
22
23
23
22
16
IMPORTANT
This machine uses GreensCare 68,
a biodegradable hydraulic fluid.
(Order 5003103 for 5 gal. pail)
Use of 10W30 is an approved
alternate fluid.
Use will compromise all
biodegradable properties of
GreensCare 68 hydraulic fluid.
4108880
AR-52
TC-O / I
KEEP HANDS AND FEET AWAY
DANGER
835892
OPERATION
To Start To Stop/Park
To Drive/Transport To Mow
1. Parking Brake...................On
2. Traction Pedal............Neutral
3. Mower Switch...................Off
4. Throttle............................Half
5. Ignition..............................On
6. Glow Plug Light...............Off
7. Ignition...........................Start
1. Follow “To Start”
instructions.
2. Mower Switch...................Off
3. Cutting Units................Raise
4. Parking Brake...................Off
5. Throttle............................Fast
6. Slowly depress
traction pedal.
1. Traction Pedal............Neutral
2. Mower Switch...................Off
3. Parking Brake...................On
4. Throttle...........................Slow
5. Ignition..............................Off
6. Remove Key
1. Follow “To Start”
instructions.
2. Throttle............................Fast
3. Mower Switch.................Mow
4. Parking Brake...................Off
5. Cutting Units................Lower
6. Slowly depress
traction pedal.
READ MANUAL BEFORE OPERATING.
REPLACEMENT MANUAL AVAILABLE FROM:
JACOBSEN TEXT RON - CHARLOTTE, NC
4124445
!
WARNING
1. Read operators manual.
Do not allow untrained
operators to use machine.
2. Keep shields in place
and hardware securely
fastened.
3. Before you clean, adjust
or repair this equipment,
disengage all drives,
engage parking brake
and stop engine.
4. Keep hands, feet and
clothing away from
moving parts.
5. Never carry passengers.
6. Keep bystanders away.
7. Inspect hoses and fabric
covers daily. If worn or
damaged, replace with
original quality parts.
8. Do not use on slopes
greater than 20 °.
4131828
3/4
1
1-1/4
1-1/2
1-3/4
2
2-1/4
2-1/2
2-3/4
3
3-1/4
3-1/2
3-3/4
4
4-1/4
4-1/2
4-3/4
5
5-1/4
CUT
HEIGHT
W/ 1/2
SPACERS
CUT
HEIGHT
W/ 1/4
SPACER
4133609
!
WARNING
To prevent serious injury
never disconnect or tamper
with the seat switch.
Read the manual for more information.
365339
!
WARNING
TO PREVENT POSSIBLE INJURY TO YOU OR OTHERS,
DO NOT OPERATE THIS UNIT WITH GUARD REMOVED.
521720
5002952
T
R
I
M
T
E
K
™
1726 Kg.
41.8 kW
4179360
068080, 068082, 068098
This structure's proctective
capability may be impaired
by structural damage,
overturn, or alteration.
If any of these conditions
occur, the structure must
be replaced.
!
WARNING
557844
AR-522

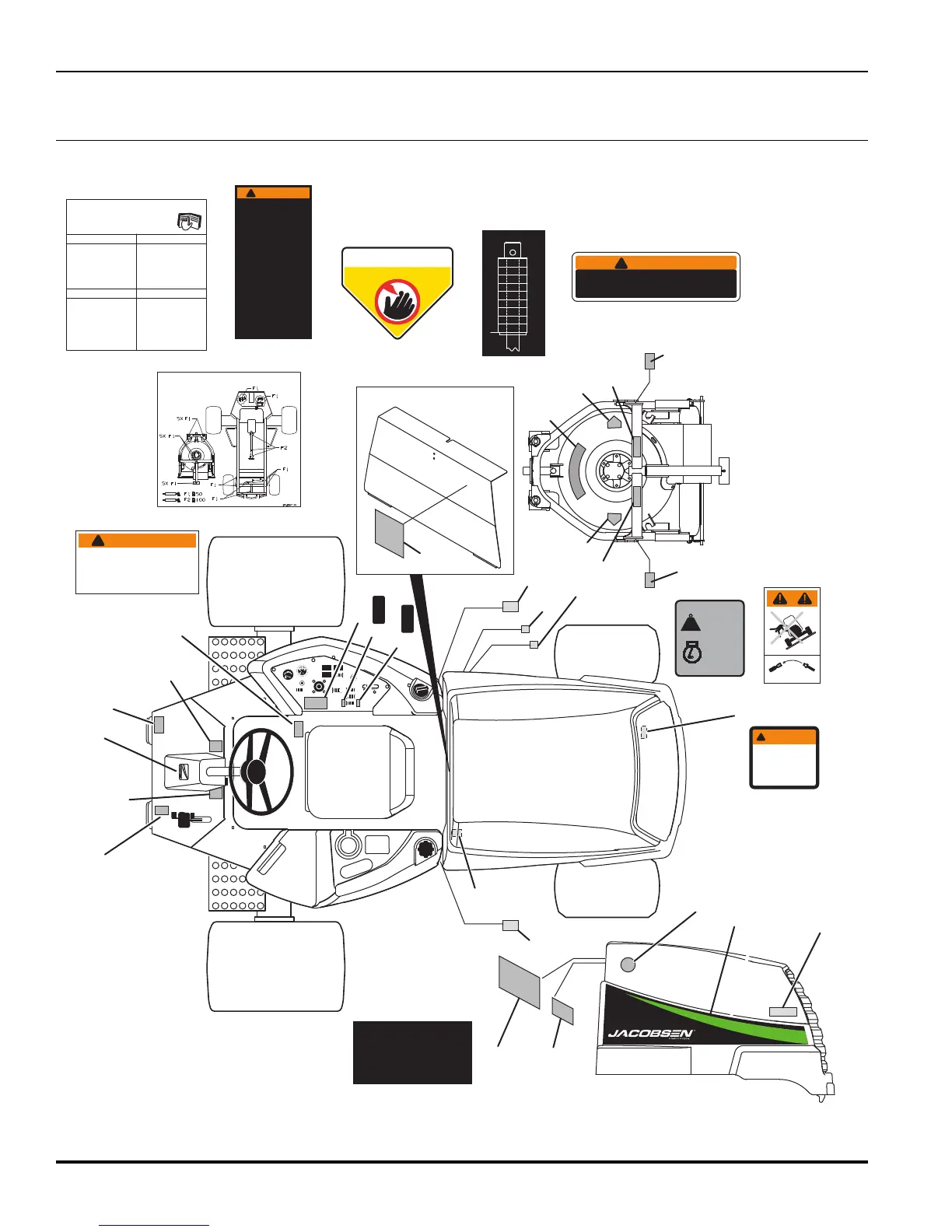

1.1 Decals
Serial No. All
To Next Page
