Jacobsen AR-5 Maintenance Manual

31
> Change from previous revision
7
12
4
5
10
1
18
8
9
6
Manufactured under one or more
of the following U.S. Patents:
xxxxxxx
xxxxxxx
xxxxxxx
xxxxxxx
!
WARNING
Radiator is under pressure. Remove cap slowly to
avoid personal injury.
365956
340830
1. Leer el manual del operador. No permitir
que personas no capacitadas para ello usen
la maquina.
2. Mantener los protectores en su lugar y sus
tornillos debidamente fijados.
3. Antes de limpiar, ajustar o reparar este
equipo, apagar todas los mandos, aplicar
el freno de estacionamiento y apagar el motor.
4. Mantener las manos, los pies y la ropa
alejados de las piezas en movimiento.
5. No conducir como pasajero ni llevar pasajeros
en maquinas sin asiento para ello.
6. Mantener a las demas personas alejadas
durante el functionamiento de la maquina.
7. Si no sabe leer ingles, solicitarle a otra persona
que le lea y explique el contenido de las
etiquetas y del manual de la maquina.
ADVERTENCIA
!
3008521
3008522
3008682
To avoid injury when working with battery
1. Always connect the black ground (–)
cable last and remove it first.
2. Keep sparks and flames away, and
avoid contact with acid.
To avoid injury when jumping battery
1. Connect positive (+) terminal to
positive (+) terminal.
2. Connect negative (–) terminal on good
battery to frame of vehicle that
has dead battery.
!
DANGER
3001435
105
dB
L
WA
B
I
O
D
E
G
R
A
D
A
B
L
E
F
L
U
I
D
AR-522

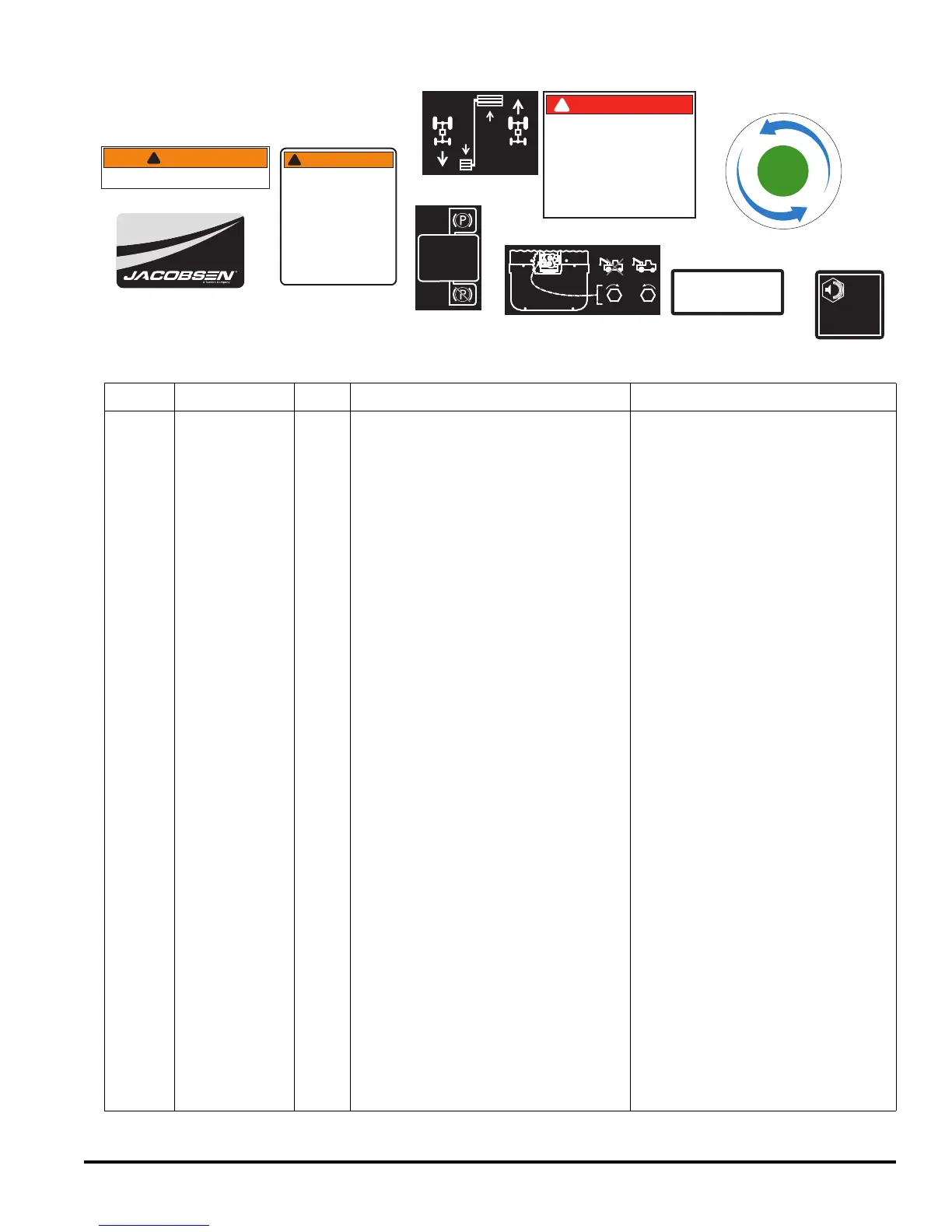

Item Part No. Qty. Description Serial Numbers/Notes
1
4111408 2 Decal, Bio Fluid
2 4134631 1 Decal, Service
3 4177682 2 Decal, AR-522
4 365956 1 Decal, Radiator Warning
5 4124759 1 Decal, Jacobsen Emblem
6 340830 1 Decal, Spanish Caution
7 3008521 1 Decal, Traction Pedal
8 3008522 1 Decal, Brake
9 3001435 1 Decal, Battery Danger
10 3008682 1 Decal, Tow Valve
11 4131828 1 Decal, Warning
12 4134633 1 Decal, Patent
13 4108880 1 Decal, Hydraulic Fluid Included with hood
14 4156720 1 Decal, Left Side Stripe Included with hood
15 4156721 1 Decal, Right Side Stripe Included with hood
16 4131772 1 Decal, Blank
17 4124445 1 Decal, Operating Instructions Included with hood
18 4117468 1 Decal, Noise 105 dB
19 835892 10 Decal, Danger 2 on each cutting unit
20 4133609 10 Decal, Height of Cut 2 on each cutting unit
21 521720 5 Decal, Guard Warning
22 4134870 1 Decal, TC-O/I
23 365339 1 Decal, Warning
24 5002952 1 Decal, ROPS Seat Belt Warning Located on ROPS, See 7.1
25 557844 1 Decal, ROPS Structure Warning Located on ROPS, See 7.1
26 4179360 1 Decal, Weight and Power
27 4179022 5 Decal, Trimtek™
