Jacobsen AR-5 Maintenance Manual

70
> Change from previous revision
To Return Tube
(3)
From Pump
(2)
To Steering Cylinder
(4)
To Steering Cylinder
(5)
Aux In
Out
LT
RT
To Lift Valve
(1)
6
2
3
5
7
7
4
1
AR-522

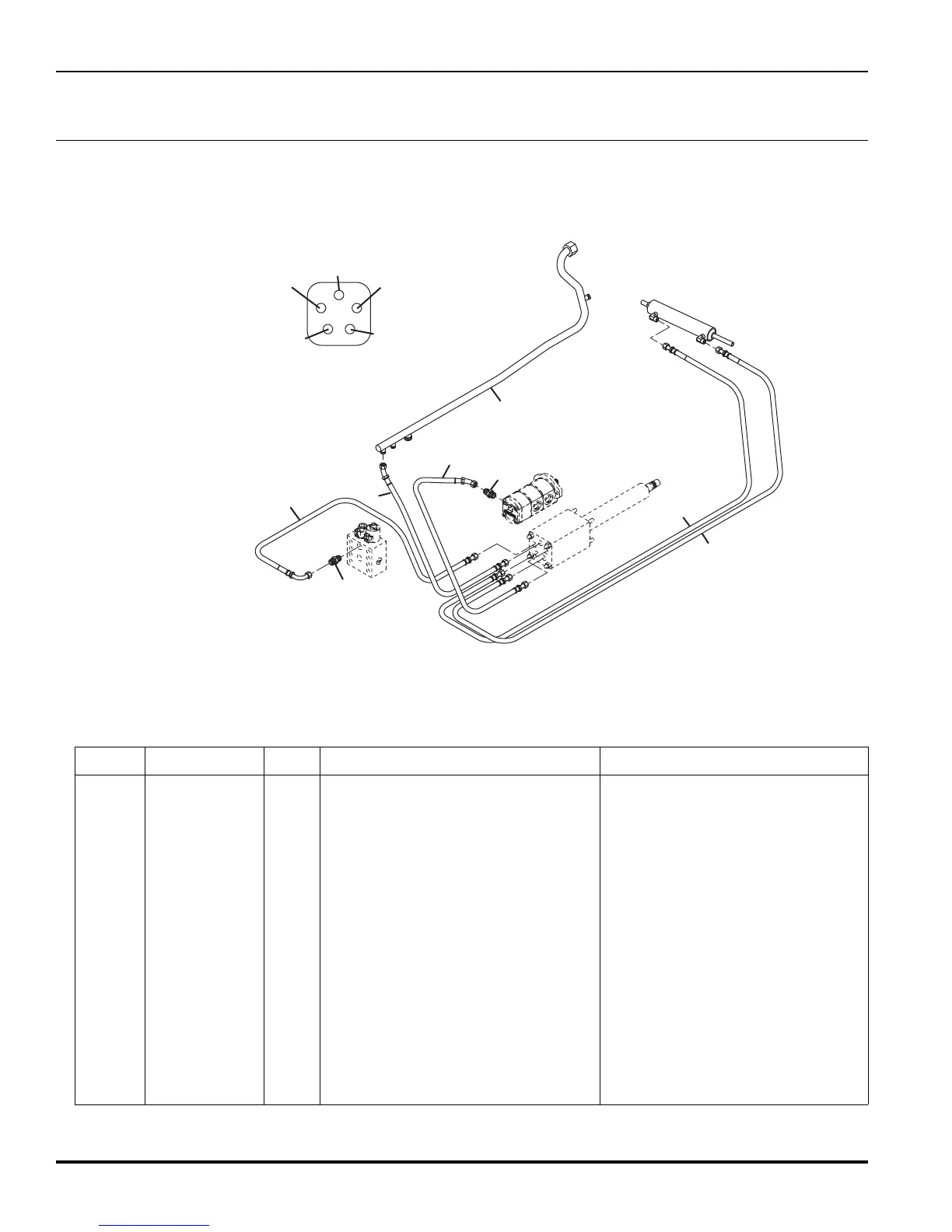

26.1 Steering Hydraulics
Serial No. All
Item Part No. Qty. Description Serial Numbers/Notes
1
4129028 1 Hose, Lift Valve to Steering Valve Lift Valve Port T, Steering Valve Aux
2 4129029 1 Hose, Gear Pump to Steering Valve Steering Valve IN
3 4129030 1 Hose, Steering Valve to Return Tube Steering Valve Out
4 4129031 1 Hose, Steering Valve to Cylinder Steering Valve LH, Base Port
5 4129032 1 Hose, Steering Valve to Cylinder Steering Valve RH, Rod Port
6 REF 1 Return Tube
7 339985 2 Fitting, 8-10 Straight
