ADJUSTMENTS 6
11

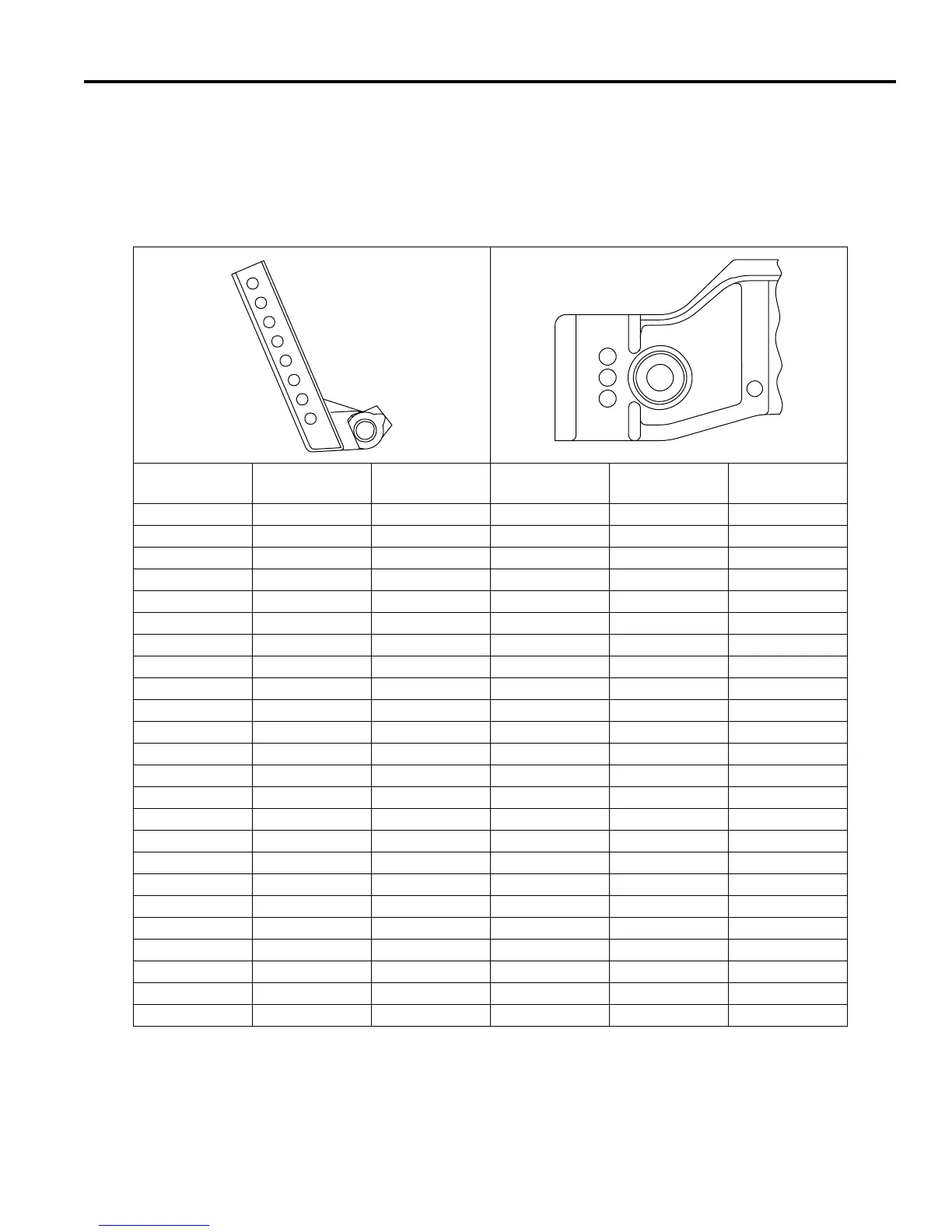

6.5 HEIGHT OF CUT ADJUSTMENT ______________________________________________
Remove roller bracket bolts (T). Raise or lower brackets
as desired by relocating bolts in the proper hole
combination as shown on the chart. Tightne bolts
securely after adjustment.
NOTE:
Be sure bolts on both ends of roller assembly are
in corresponding holes.
Numbers Listed in parenthesis are millimeters
Hole Number in
Bracket
Hole Number in
housing
17” Steel Wheel 18” Steel Wheel
4 x 17 Semi-
Pneumatic
4 x 20 Semi-
Pneumatic
81
82 3/8 (9.5)
7 1 1/2 (12.7) 11/16 (17.4)
8 3 11/16 (17.4) 15/16 (23.8)
7 2 3/8 (9.5) 3/4 (19.0) 7/16 (11.1) 1-1/16 (26.9)
6 1 1/2 (12.7) 7/8 (22.2) 1/2 (12.7) 1-3/16 (30.1)
7 3 5/8 (15.8) 1 (25.4) 11/16 (17.4) 1-5/16 (33.3)
6 2 3/4 (19.0) 1-1/8 (28.5) 13/16 (20.6) 1-7/16 (36.5)
5 1 7/8 (22.2) 1-7/32 (30.9) 15/16 (23.8) 1-9/16 (39.6)
6 3 1 (25.4) 1-3/8 (34.9) 1-1/16 (26.9) 1-11/16 (42.8)
5 2 1-1/8 (28.5) 1-1/2 (38.1) 1-3/16 (30.1) 1-13/16 (46.0)
4 1 1-1/4 (31.7) 1-5/8 (41.2) 1-5/16 (33.3) 1-15/16 (49.2)
5 3 1-3/8 (34.9) 1-3/4 (44.4) 1-7/16 (36.5) 2-1/16 (52.3)
4 2 1-1/2 (38.1) 1-7/8 (47.6) 1-9/16 39.6) 2-3/16 (55.5)
3 1 1-5/8 (41.2) 2 (50.8) 1-5/8 (41.2) 2-5/16 (58.7)
4 3 1-3/4 (44.4) 2-1/8 (53.9) 1-13/16 (46.0) 2-7/16 (62.0)
3 2 1-7/8 (47.6) 2-1/4 (57.1) 1-15/16 (49.2) 2-9/16 (65.0)
2 1 2 (50.8) 2-3/8 (59.9) 2 (50.8) 2-5/8 (66.6)
3 3 2-1/8 (53.9) 2-1/2 (63.1) 2-3/16 (55.5) 2-13/16 (71.4)
2 2 2-1/4 (56.7) 2-19/32 (65.8) 2-1/4 (56.7) 2-7/8 (73.0)
1 1 2-3/8 (59.9) 2-11/16 (67.8) 2-3/8 (59.9) 3 (76.2)
2 3 2-1/2 (63.1) 2-13/16 (71.0) 2-1/2 (63.1) 3-1/8 (79.3)
1 2 2-3/4 (69.4) 2-15/16 (74.2) 2-9/16 (65.0) 3-13/16 (80.9)
1 3 2-7/8 (72.6) 2-3/4 (69.4) 3-7/16 (87.4)
8
7
6
5
4
3
2
1
3
1
2
